Schneider Electric A9D41716 — Residual Current Breakers (RCCB/RCBO)

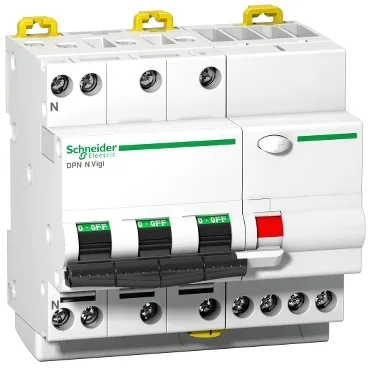

Schneider A9D41716 Acti 9 iDPN Vigi RCBO, 3-pole, 16 A, C-curve, 6 kA

MPNA9D41716
Obsolete

Schneider Acti 9 iDPN Vigi A9D41716 RCBO, 3-pole, 16 A, C-curve, 6 kA breaking capacity, 415 V AC, Type AC earth leakage, clip-on mounting.

$60.25Ref. price · indicative, final on quote
Schneider Electric A9D41716 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9D41716 — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)300 mA
Earth-leakage protection class / typeType AC
Earth-leakage trip time delayInstantaneous
Residual-current tripping technologyVoltage independent
Trip unit technologyThermal-magnetic
Local signalling / indicationON, OFF, fault trip
A9D41716 — Electrical Ratings
ParameterValue
Rated current (In)16 A
Rated operational voltage (Ue)380...415 V AC 50/60 Hz
Poles description3P + N
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)440 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)4 kV
Overvoltage categoryIII conforming to IEC 60364
Device location in systemOutgoer
Electrical durability20000 cycles
Mechanical durability (operating cycles)20000 cycles
A9D41716 — Identification
ParameterValue
Product nameActi9 DPN Vigi
Product / component typeResidual current breaker with overcurrent protection (RCBO)
Product range / familyActi9
Device short nameDPN N Vigi
A9D41716 — Mechanical
ParameterValue
Mounting supportDIN rail
Mounting modeClip-on
Control typeToggle
Width in 9 mm modules10
Terminal connectionsTunnel type terminal top or bottom 0.75...16 mm² rigid Tunnel type terminal top or bottom 0.33...10 mm² flexible Tunnel type terminal top or bottom 0.33...10 mm² flexible with ferrule
Wire stripping length15 mm for top or bottom connection
Terminal tightening torque2 N.m top or bottom
Width90 mm
Height91 mm
Depth78.5 mm
A9D41716 — Environmental
ParameterValue
Operating ambient temperature-5...60 °C
Storage ambient temperature-30...70 °C
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3
Relative humidity90 % at 55 °C
Tropicalisation2 conforming to IEC 60068-1
A9D41716 — Approvals
ParameterValue
StandardsEN/IEC 61009-2-1
