Schneider Electric A9DF3732 — Residual Current Breakers (RCCB/RCBO)

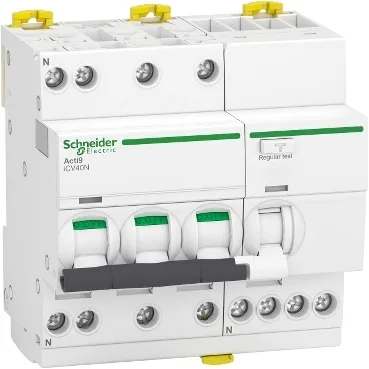

Schneider Electric A9DF3732 Acti9 iCV40 RCBO, 32A C-Curve 30

MPNA9DF3732
Active

Schneider Electric Acti9 iCV40 RCBO, A9DF3732, 32 A, C-curve, 30 mA earth leakage, 6 kA breaking capacity at 400 V AC, 3P+N, DIN rail mount.

$288.36Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9DF3732 — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA
Earth-leakage protection class / typeType A-SI (Super Immunised)
Earth-leakage trip time delayInstantaneous
Residual-current tripping technologyVoltage independent
Trip unit technologyThermal-magnetic
Local signalling / indicationON/OFF indication Fault indication
A9DF3732 — Electrical Ratings
ParameterValue
Rated current (In)32 A
Rated operational voltage (Ue)400 V AC 50/60 Hz
Poles description3P + N
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)440 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)4 kV
Overvoltage categoryIII conforming to IEC 60364
Device location in systemOutgoer
Electrical durability10000 cycles
Mechanical durability (operating cycles)20000 cycles
A9DF3732 — Identification
ParameterValue
Product nameActi9 iCV40
Product / component typeResidual current breaker with overcurrent protection (RCBO)
Product range / familyActi9
Device short nameiCV40N
A9DF3732 — Mechanical
ParameterValue
Mounting supportDIN rail
Mounting modeClip-on
Control typeToggle
Width in 9 mm modules10
Terminal connectionsTunnel type terminals top or bottom 1...16 mm² rigid Tunnel type terminals top or bottom 1...10 mm² flexible
Wire stripping length14 mm for top or bottom connection
Terminal tightening torque2 N.m top or bottom
Width90 mm
Height93 mm
Depth73 mm
A9DF3732 — Environmental
ParameterValue
Operating ambient temperature-25...60 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3
Relative humidity95 % at 55 °C
Operating altitude2000 m
A9DF3732 — Approvals
ParameterValue
StandardsEN/IEC 61009-2-1

Product details

The Schneider Electric A9DF3732 is an Acti9 iCV40 residual-current circuit breaker with overcurrent protection (RCBO), rated 32 A with a C-curve and integrated 30 mA earth-leakage protection. It clips onto a DIN rail, occupies 10 modular pitches (90 mm width), and is rated for 6 kA breaking capacity at 400 V AC, 50/60 Hz, per EN/IEC 61009-2-1.

The 30 mA earth-leakage sensitivity provides personnel protection against direct contact, while the C-curve (5–10 x In) avoids nuisance tripping on loads like small motors or capacitor banks that draw a brief inrush. The 3P+N configuration with neutral on the left is standard for three-phase outgoing feeders in TN or TT systems. IP20 rated for the body, IP40 inside a modular enclosure — fine for dry indoor panels.

Frequently asked questions

What is the breaking capacity of A9DF3732?

The breaking capacity is 6000 A Icn at 400 V AC, 50/60 Hz, conforming to EN/IEC 61009-2-1.

What is the earth-leakage sensitivity of A9DF3732?

The integrated earth-leakage protection has a sensitivity of 30 mA.

Where can I buy A9DF3732 and get current pricing?

The A9DF3732 is available to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.
