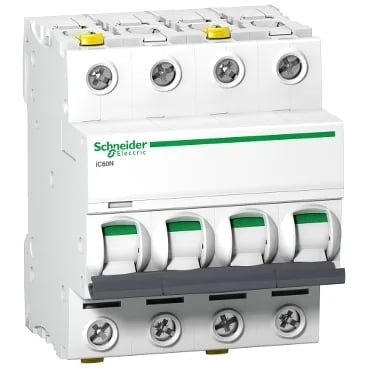

Schneider Electric A9F04404 Acti9 iC60N MCB, 4 A, C-Curve, 4

Name: A9F04404
Brand: Schneider Electric
SKU: A9F04404
Availability: LimitedAvailability
Author: Broker Bao

Specifications

Identification

A9F04404 — Identification
Parameter	Value
Product name	Acti9 iC60
Product range	Acti9
Product/component type	Miniature circuit-breaker
Device application	Distribution

Ratings

A9F04404 — Ratings
Parameter	Value
Rated current (In)	4 A
Poles configuration	4P
Number of protected poles	4
Breaking capacity	50 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Rated service breaking capacity (Ics)	50 kA 100 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz 50 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 50 kA 100 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 25 kA 100 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 - <= 250 V DC
Rated insulation voltage (Ui)	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Rated impulse withstand voltage (Uimp)	6 kV conforming to EN/IEC 60947-2
Network type (AC/DC)	DC AC
Network frequency	50/60 Hz
Utilisation category	Category A conforming to EN/IEC 60947-2
Overvoltage category	IV

Protection

A9F04404 — Protection
Parameter	Value
Curve code	C
Trip unit technology	Thermal-magnetic
Magnetic tripping limit	8 x In +/- 20 %
Earth-leakage protection	Separate block
Suitability for isolation	Yes conforming to EN/IEC 60898-1 Yes conforming to EN/IEC 60947-2
Limitation class	3 conforming to EN/IEC 60898-1
Electrical durability (cycles)	10000 cycles
Mechanical durability (cycles)	20000 cycles

Mechanical

A9F04404 — Mechanical
Parameter	Value
Mounting support	DIN rail
Control type	Toggle
Terminal connection type	Double terminal (top or bottom) 1...25 mm² rigid Double terminal (top or bottom) 1...16 mm² flexible
Terminal tightening torque	2 N.m top or bottom
Wire stripping length	14 mm for top or bottom connection
Contact position indicator	Yes
Local signalling/indication	Trip indicator
Width	72 mm
Height	91 mm
Depth	78.5 mm
Number of 9 mm pitches	8

Environmental

A9F04404 — Environmental
Parameter	Value
Operating ambient temperature	-35...70 °C
Storage ambient temperature	-40...85 °C
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	3 conforming to EN/IEC 60947-2
Relative humidity	95 % at 55 °C
Tropicalisation class	2 conforming to IEC 60068-1

Approvals

A9F04404 — Approvals
Parameter	Value
Standards	EN/IEC 60947-2 EN/IEC 60898-1

Product details

The A9F04404 is a Schneider Electric Acti9 iC60N miniature circuit breaker (MCB) rated at 4 A with a C-curve trip characteristic, 4 poles, and a 50 kA breaking capacity at 415 V AC. It's a thermal-magnetic breaker for distribution applications, certified to both EN/IEC 60898-1 and EN/IEC 60947-2, so it covers residential and industrial branch-circuit protection in one package.

Snaps onto standard DIN rail (mounting support: DIN rail). Occupies 9 mm pitches — 8 pitches wide, which is 72 mm width. Depth is 78.5 mm, height 91 mm. Tightening torque 2 N.m.

Key ratings for the spec sheet

C-curve magnetic trip at 8 x In +/- 20 % (so 32 A nominal, 25.6 to 38.4 A range) — suits moderate inrush loads like small motors or lighting banks. Electrical durability 10,000 cycles, mechanical 20,000. Suitable for isolation (both standards). Overvoltage category IV, insulation voltage 500 V AC. Earth-leakage protection via separate block (not integral).

Frequently asked questions

Where can I buy A9F04404 and how do I get a price?

The A9F04404 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What is A9F04404's listed depth (78.5 mm) on this component line?

The A9F04404 has a depth of 78.5 mm, width 72 mm, height 91 mm — fits standard DIN-rail enclosures with 9 mm pitch spacing (8 pitches wide).

What is A9F04404's listed range (Acti9) on this component line?

The A9F04404 belongs to the Schneider Electric Acti9 range, specifically the Acti9 iC60N series of miniature circuit breakers for distribution applications.

What compliance documentation does this brand provide for A9F04404 (RoHS, REACH, UL, IEC)?

The A9F04404 is certified to EN/IEC 60898-1 and EN/IEC 60947-2. It carries IP20 protection (IEC 60529), tropicalisation class 2 (IEC 60068-1), and pollution degree 3 (EN/IEC 60947-2). For RoHS/REACH declarations, Schneider Electric typically provides compliance documentation on request — confirm at order.
