Schneider Electric A9FDB613

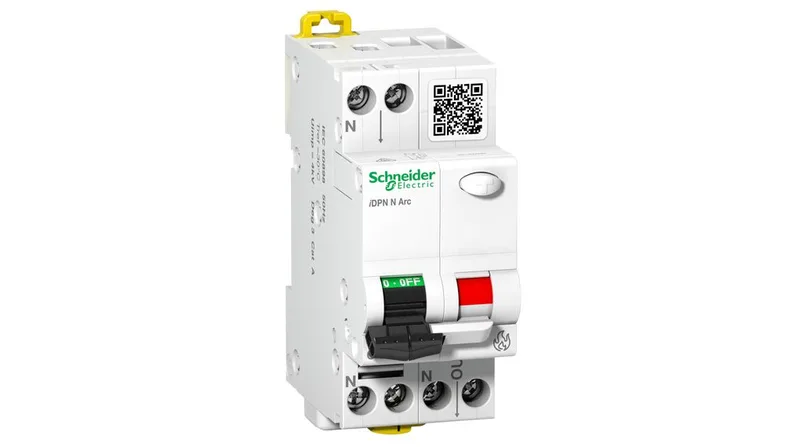

Schneider Electric A9FDB613 iDPN N Arc MCB, 13A C-Curve 6kA

MPN A9FDB613

Schneider Electric iDPN N Arc, 2-pole MCB, 13 A, C-curve, 6 kA breaking capacity, DIN-rail mount, IP20.

$77.66 – $84.71 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

A9FDB613 specifications
ParameterValue
Insulation voltage ui400 V
Current13 A
Frequency50 Hz
Poles2
IP ratingIP20
MountingDIN Rail
Depth72 mm
Width36 mm
Height81 mm
Tripping mechanismThermal Magnetic

Product details

What this MCB is and what the ratings mean for fit

The A9FDB613 is a 2-pole miniature circuit breaker from Schneider Electric's iDPN N Arc series, rated 13 A with a C tripping characteristic and a 6 kA short-circuit breaking capacity (Icn). The C-curve means it trips between 5 and 10 times rated current — the standard choice for general-purpose loads like small motors, lighting, and control transformers where moderate inrush is expected. The 6 kA Icn at 400 V tells you it can safely interrupt a fault current up to that level without welding contacts or cascading damage upstream, which is the minimum for most commercial panelboards. Rated insulation voltage is 400 V, overvoltage category III, so it's built for fixed-installation distribution boards, not portable equipment.
