Schneider Electric A9K14306 — Circuit Breaker Accessories

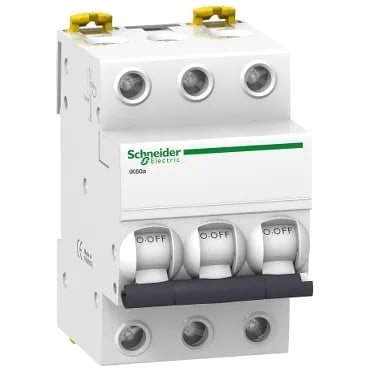

Schneider Electric A9K14306 Acti9 iK60 MCB, 3P C-Curve 6 A,

MPNA9K14306
Active

Schneider Electric Acti9 iK60N, miniature circuit-breaker, 3P, C-curve, 6 A, 4500 A Icn at 400 V AC, thermal-magnetic, clip-on DIN rail.

StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

A9K14306 — Identification
ParameterValue
Product / component typeMiniature circuit-breaker
Product nameActi9 iK60
Product rangeActi9
Device applicationDistribution

Electrical

A9K14306 — Electrical
ParameterValue
Network type (AC/DC)AC
Rated current [In]6 A at 30 °C
Rated insulation voltage [Ui]440 V AC 50/60 Hz conforming to EN/IEC 60898-1
Rated impulse withstand voltage [Uimp]4 kV conforming to EN/IEC 60898-1
Network frequency50/60 Hz
Poles description3P
Magnetic tripping limit5...10 x In

Protection & Performance

A9K14306 — Protection & Performance
ParameterValue
Breaking capacity4500 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Rated service breaking capacity [Ics]4500 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60898-1
Mechanical durability20000 cycles
Electrical durability10000 cycles
Local signallingON/OFF indication

Mechanical

A9K14306 — Mechanical
ParameterValue
Connections / terminalsTunnel type terminal (top or bottom) 1...25 mm² rigid
Device short nameiK60N
Control typeToggle
Mounting modeClip-on
Mounting supportDIN rail
Usable 9 mm pitches6
Width54 mm
Height85 mm
Depth78.5 mm
ColourWhite

Environmental

A9K14306 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529
Pollution degree2 conforming to EN/IEC 60898-1
Operating ambient air temperature-25...60 °C
Storage ambient air temperature-40...85 °C

Approvals

A9K14306 — Approvals
ParameterValue
StandardsEN/IEC 60898-1

Specifications

A9K14306 — Specifications
ParameterValue
Curve codeC
Number of protected poles3

Product details

The Schneider Electric A9K14306 is an Acti9 iK60N miniature circuit breaker — 3 poles, C-curve, rated 6 A at 30 °C. It breaks 4500 A at 400 V AC (EN/IEC 60898-1), which is the standard fault level for residential and light-commercial distribution boards in most of Europe and Asia. Thermal-magnetic trip with a magnetic threshold of 5 to 10 times In means it holds motor inrush and transformer magnetising current without nuisance tripping, yet still clears a hard short fast. The C-curve is the default for general-purpose distribution — lighting, small motor loads, socket circuits — where you need a bit of headroom above the B-curve. IP20 finger-safe, rated for isolation, and carries a padlocking option.

Accepts 1 to 25 mm² rigid copper — plenty for the 6 A load circuit. The ON/OFF toggle gives a visible isolation point; the padlock hasp accepts a standard 4 mm shackle for LOTO procedures.

Frequently asked questions

What is A9K14306's breaking capacity?

4500 A Icn at 400 V AC 50/60 Hz, conforming to EN/IEC 60898-1. That is the standard short-circuit rating for residential and light-commercial distribution boards.

What does the C-curve mean on this breaker?

The C-curve means the magnetic trip threshold is 5 to 10 times the rated current (In). It holds moderate inrush from small motors and transformers without nuisance tripping, while still clearing hard shorts quickly. It is the standard choice for general-purpose distribution circuits.

What compliance documentation does Schneider provide for A9K14306?

The breaker is certified to EN/IEC 60898-1, with pollution degree 2 and overvoltage category III. It carries an IP20 finger-safe rating. Standard Schneider documentation includes the declaration of conformity for CE marking.
