Overview
The A9N61701 is a Schneider Acti9 C120NA-DC switch disconnector, 2-pole, rated 100 A at 1000 V DC, designed for photovoltaic inverter and PV array isolation. It complies with EN/IEC 60947-3 and is now discontinued by Schneider.

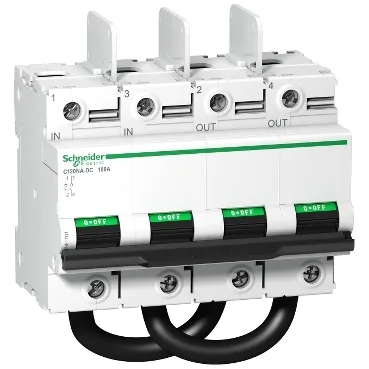

Schneider A9N61701 C120NA-DC switch disconnector, 100 A, 1000 V DC (discontinued
MPNA9N61701
Obsolete
Schneider A9N61701 For Dc Or Pv — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
$172.04Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product name | C120 |
| Product range | C120 |
| Series / family | Acti9 |
| Device short name | C120NA-DC |
| Product / component type | Switch disconnector |
| Parameter | Value |
|---|---|
| Pole configuration | 2P |
| Parameter | Value |
|---|---|
| Suitable for isolation | Yes conforming to EN/IEC 60947-3 |
| Operating / control type | Toggle |
| Mechanical durability (cycles) | 20000 cycles |
| Parameter | Value |
|---|---|
| 9 mm pitches | 12 |
| Width | 108 mm |
| Height | 138.3 mm |
| Depth | 74.4 mm |
| Mounting support | DIN rail |
| Mounting mode | Clip-on |
| Terminal connections | Pre-wired cable (downside) Tunnel terminal (upside) 35...50 mm² rigid Tunnel terminal (upside) 25...35 mm² flexible |
| Terminal tightening torque | 3.5 N.m |
| Local signalling / indication | ON/OFF indication |
| Parameter | Value |
|---|---|
| Operating temperature range | -25...70 °C |
| Storage temperature range | -40...85 °C |
| Parameter | Value |
|---|---|
| Standards / compliance | EN/IEC 60947-3 |
Product details
MPN
A9N61701
