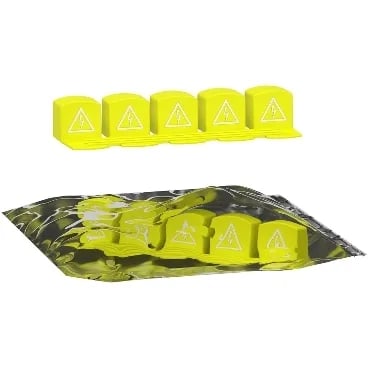

The A9XPT620 is a set of 20 yellow tooth caps for Acti9 Linergy FH comb busbars. It covers exposed busbar teeth on 1P+N and 3P+N configurations, acting as an insulation accessory to maintain clearance and creepage distances inside the panel. The 9 mm connection pitch matches the standard Acti9 modular spacing, so these snap directly onto the busbar fingers without tools.
A9XPT620 Acti9 Linergy FH Comb Busbar Tooth Cover, Yellow, 9
MPNA9XPT620
Active
Schneider Electric Acti9 Linergy FH, comb busbar tooth cover, yellow, 9 mm connection pitch, set of 20, for 1P+N and 3P+N poles.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Comb busbar tooth cover |
| Product name | Linergy FH |
| Product range | Acti9 |
Electrical
| Parameter | Value |
|---|---|
| Poles description | 1P + N 3P + N |
Mechanical
| Parameter | Value |
|---|---|
| Connection pitch | 9 mm |
| Colour | Yellow |
Other specifications
| Parameter | Value |
|---|---|
| Quantity per set | Set of 20 |
| Accessory (separate part category) | Insulation accessory |
Product details
Frequently asked questions
Where can I buy A9XPT620 and how is it quoted?
The A9XPT620 is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — no stock count or price is published here.
What is the closest alternative to A9XPT620 in the Acti9 family?
Within the Acti9 Linergy FH range, the A9XPT620 is the dedicated tooth cover. No pin-compatible alternative exists because the 9 mm pitch and tooth profile are specific to this busbar system. For a different colour or pole count, verify the exact Acti9 busbar part number — the cover must match the busbar tooth spacing.
