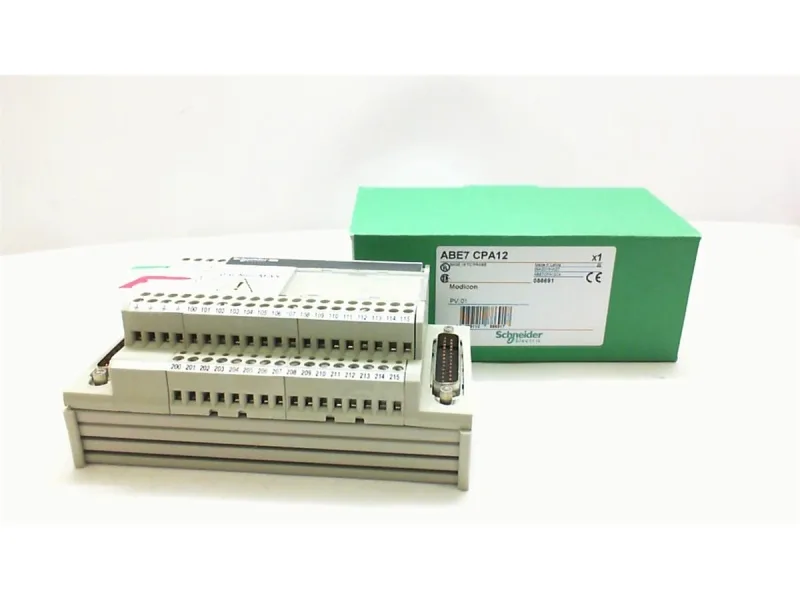

Schneider Electric ABE7CPA12

MPNABE7CPA12

Obsolete

Connection sub-base ABE7 - for distribution of 16 thermocouples

$445.00Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABE7CPA12 key specifications
Parameter	Value
Range of product	Modicon ABE7
Product or component type	Connection sub-base for counter and analogue channels
Voltage	2000 V terminals/mounting rails
IP degree of protection	IP20 conforming to IEC 60529
Installation category	II IEC 60664-1
Connection to PLC	SUB-D 25
Connections - terminals	Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Resistance to incandescent wire	1382 °F (750 °C) 30 s IEC 60695-2-11
Pollution degree	2 IEC 60664-1
Shock resistance	15 gn 11 ms IEC 60068-2-27
Vibration resistance	2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
Category	US10CP222375

ABE7CPA12 additional specifications
Parameter	Value
Fixing mode	By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit)
Tightening torque	5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Function of module	Distribution of 16 thermocouples Premium
Channels	16
Protective treatment	TC
Resistance to fast transients	2 kV level 3 IEC 61000-4-4
Resistance to radiated fields	9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage	-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation	32...140 °F (0...60 °C) IEC 61131-2
Resistance to electrostatic discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
