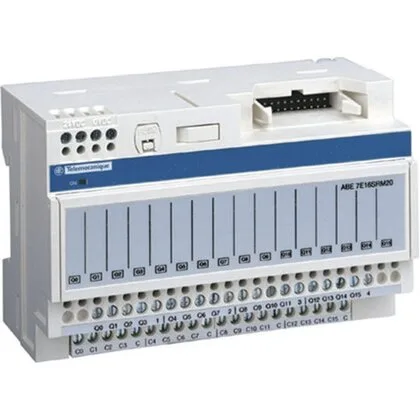

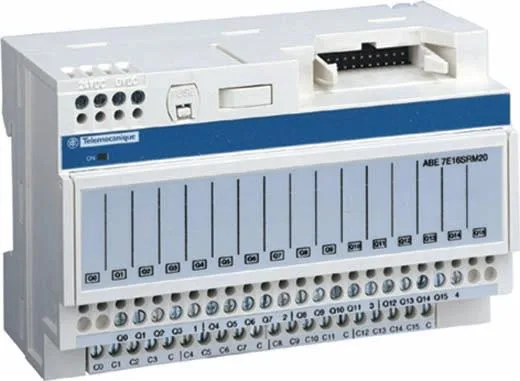

Schneider Electric ABE7E16SRM20

Schneider ABE7E16SRM20 Modicon ABE7 I/O Module, 16 relay outputs, 5 A

MPNABE7E16SRM20
Obsolete

Schneider Modicon ABE7 ABE7E16SRM20 I/O module, order code ABE7E16SRM20, 16 relay outputs, 5 A rated current, 24 V DC supply, IP2X, DIN-rail mount, screw terminals.

$381.00Ref. price · indicative, final on quote
Schneider Electric ABE7E16SRM20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABE7E16SRM20 key specifications
ParameterValue
Connector typeHE-10
Range of productModicon ABE7
Product or component typeDiscrete output sub-base
Supply voltage limits19...30 V DC IEC 61131-2 controller side) 19...30 V DC IEC 61131-2 sensor/controller side)
Discrete output voltage110...250 V AC relay 24 V DC solid state 5...30 V DC relay
Supply voltage24 V DC controller side 24 V DC sensor/controller side
Voltage state 0 guaranteed2 V relay sensor/controller side)
Voltage state 1 guaranteed16.8 V relay
Voltage2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1
Voltage drop on power supply fuse0.3 V
[Uimp] rated impulse withstand voltage6 kV relay
Switched current3000 mA relay output

All specifications

ABE7E16SRM20 additional specifications
ParameterValue
Current per channel0.009 A relay
Maximum supply current2 A
Short-circuit protection2 A internal fuse, 5 x 20 mm, fast blow controller side)
Minimum switching current100 mA relay
Maximum current per output common5 A relay output
Switching frequency20 Hz relay
IP degree of protectionIP2X conforming to IEC 60529
Connector destinationTwido programmable controller
Connections - terminalsScrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid
Number of terminal per channel2
Resistance to incandescent wire1382 °F (750 °C) IEC 60695-2-11
Response time<= 5 ms from state 0 to 1 relay
Pollution degree2 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Vibration resistance2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
Electrical durability500000 cycles 2000 mA AC-12 relay preactuator side) 500000 cycles 3000 mA DC-12 relay preactuator side) 500000 cycles 400 mA AC-15 relay preactuator side) 500000 cycles 500 mA DC-13 relay preactuator side)
Mechanical durability20000000 cycles 68 °F (20 °C)
CategoryUS1000I22000
Pin number20
Status LED1 LED power ON
Fixing modeBy clips 35 mm symmetrical DIN rail IEC 60715 By screws
Tightening torque5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Channels16
Overvoltage categoryII conforming to IEC 60664-1
Polarity distribution1 common/4 channels relay output
Discrete output number16 relay, 3000 mA
Discrete output function1 NO
Resistance to fast transients2 kV level 3 IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 80000000...2000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation23...140 °F (-5...60 °C) IEC 61131-2
Resistance to electrostatic discharge4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2

Product details

Overview

The ABE7E16SRM20 is a Schneider Modicon ABE7-series I/O module with 16 relay outputs, each rated at 5 A and switching up to 2 A.

Each of the 16 channels provides one normally-open relay contact rated for 3000 mA on the discrete output side. The module includes a 2 A internal fast-blow fuse on the controller side for short-circuit protection.

Applications

This module is used in Modicon ABE7 remote I/O racks to switch solenoids, contactor coils, indicator lamps, and small motor starters in machine control and process automation. The 16 relay outputs suit applications requiring isolated switching of mixed AC/DC loads up to 250 V AC or 30 V DC.

The ABE7E16SRM20 carries UL and CSA certifications and is listed as compliant with California Proposition 65. No official end-of-life notice is recorded; the module remains available through distribution channels. Confirm current lead time and minimum order on the RFQ.
