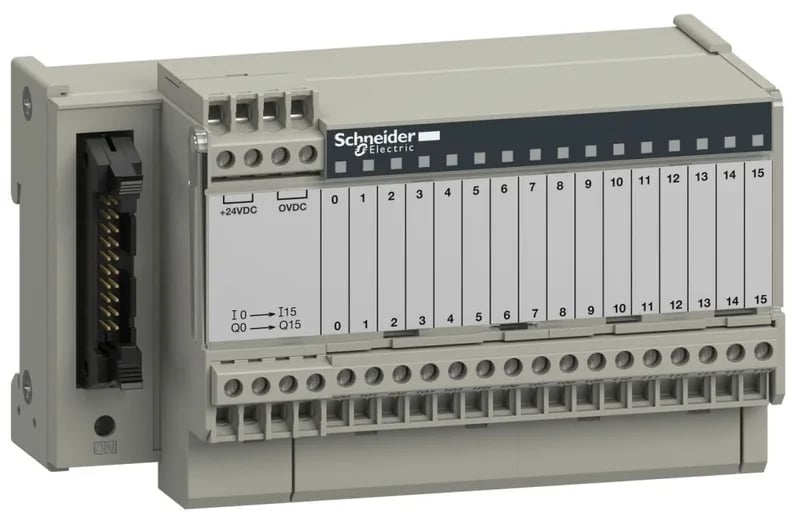

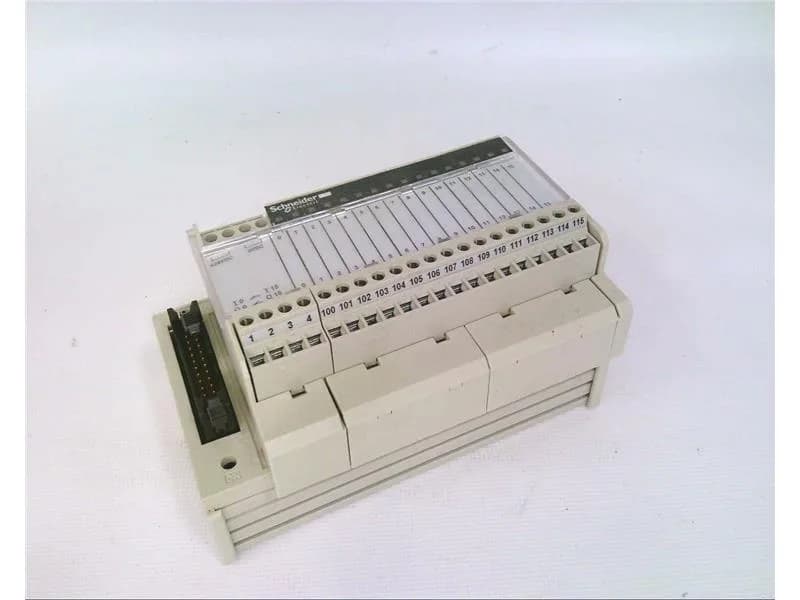

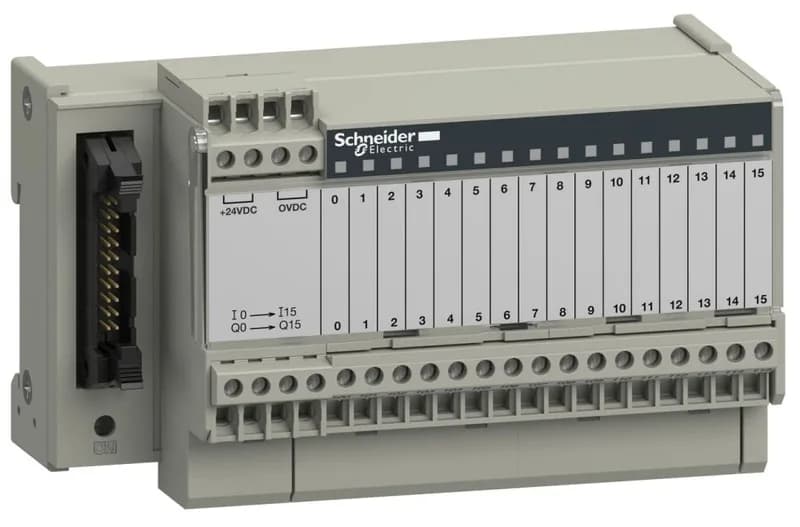

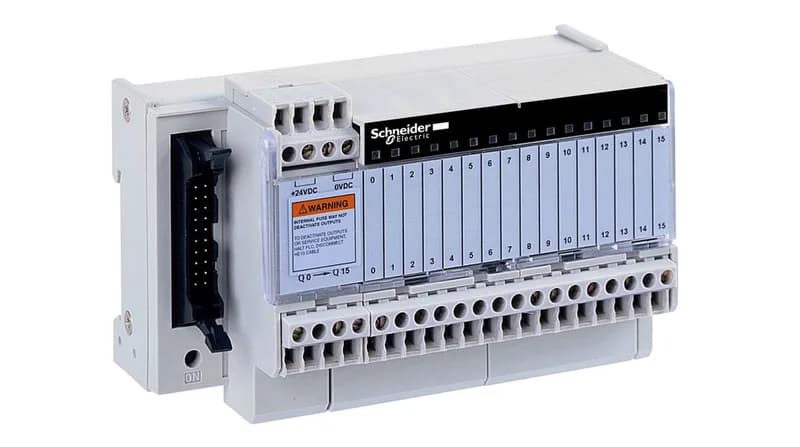

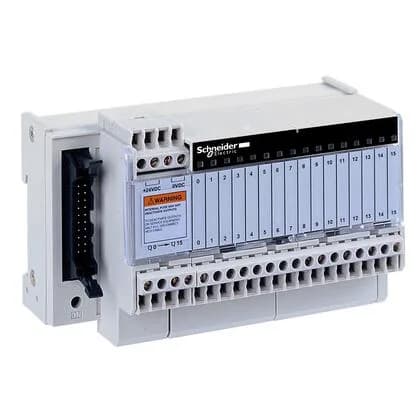

Schneider Electric ABE7R16S111
MPNABE7R16S111
Active
Sub-Base, Plug-In, Electromechanical Relays, ABE7, TeleFast 2, 16 Channels, 10 mm Relay|Sub-Base, Plug-In, Output, Electromechanical Relays, ABE7, TeleFast 2, 16 Channels, 10 mm Relay
$146.08Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon ABE7 |
| Terminal block type | Removable |
| Product or component type | Electromechanical output relay sub-base |
| Contacts type and composition | 1 NO preactuator end |
| Drop-out voltage | 2.4 V 68 °F (20 °C) PLC end) |
| Maximum switching voltage | 250 V AC 50/60 Hz IEC 60947-5-1 30 V DC IEC 60947-5-1 |
| Supply voltage | 24 V DC PLC end |
| Threshold tripping voltage | 19.2 V 104 °F (40 °C) |
| Voltage | 2000 V |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Drop-out current | 0.5 mA 68 °F (20 °C) |
| Current per channel | 2 A preactuator end |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 1 mA >= 5 V |
| Maximum current per output common | 12 A |
| Maximum power dissipation per channel in | 0.22 W PLC end) |
| Switching frequency | <= 0.5 Hz |
| Operating rate in | 10 Hz no load 0.5 Hz at Ie |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Installation category | II IEC 60664-1 |
| Number of terminal per channel | 1 |
| Resistance to incandescent wire | 1382 °F (750 °C) 30 s IEC 60695-2-11 |
| Pollution degree | 2 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Depth | 2.3 in (58 mm) |
| Width | 4.9 in (125 mm) |
| Height | 3.03 in (77 mm) |
| Electrical durability | 500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) 500000 cycles 400 mA 230 V AC-15 preactuator end) 500000 cycles 600 mA 230 V AC-12 preactuator end) 500000 cycles 600 mA 24 V DC-12 preactuator end) |
| Mechanical durability | 20000000 cycles |
| Category | US10CP222375 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Operating time | <= 6 ms coil de-energisation and NO opening |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Channels | 16 |
| Contact bounce time | <= 5 ms 1 NO |
| Dielectric strength | 2000 V IEC 60947-1 |
| Protective treatment | TC |
| Polarity distribution | Polarity distribution contact common per group of 8 channels |
| Electrical reliability | 1e-008 |
| Max immunity to microbreaks | 5 ms |
| Number of channel per common | 8 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) IEC 61131-2 |
