Schneider ABE7R16S111E Modicon — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1 30 V DC conforming to IEC 60947-5-1 |
| Minimum switching current | 1 mA at >= 5 V |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Parameter | Value |
|---|---|
| Operating time | <= 6 ms coil de-energisation and NO opening |
| Electrical life (cycles) | 500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end) 500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end) 500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end) 500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end) |
| Mechanical life (cycles) | 20000000 cycles |
| Parameter | Value |
|---|---|
| Width | 125 mm |
| Parameter | Value |
|---|---|
| IP rating | IP2X conforming to IEC 60529 |
| Ambient temperature, operation | -5...60 °C conforming to IEC 61131-2 |
| Ambient temperature, storage | -40...80 °C conforming to IEC 61131-2 |
| Vibration resistance | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |

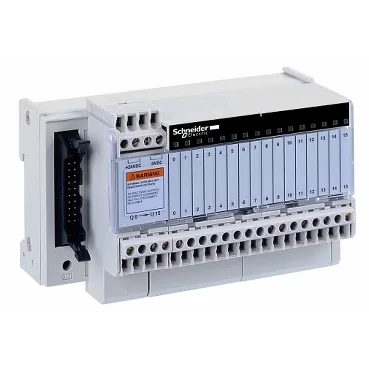

The ABE7R16S111E is a Modicon ABE7 electromechanical output relay sub-base with 16 channels, each rated 12 A max at 250 V AC or 30 V DC, and draws 0.22 W from the PLC end. It occupies 125 mm on a 35 mm DIN rail, uses spring terminals accepting 0.14 to 2.5 mm² wire, and is sealed to IP2X.
