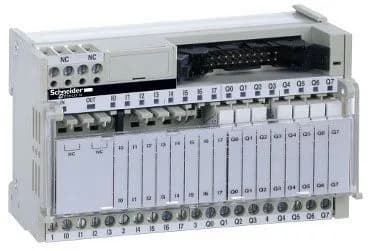

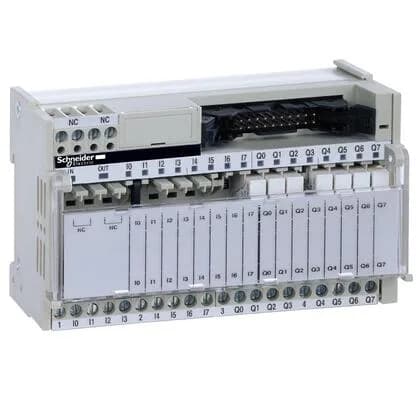

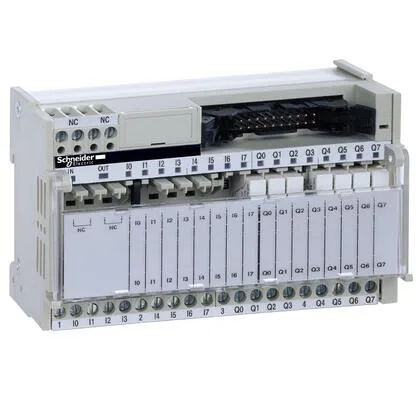

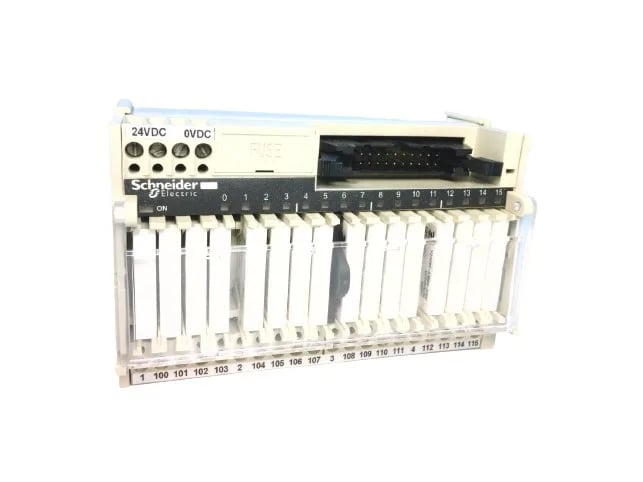

Schneider Electric ABE7R16T111
MPNABE7R16T111
Active
Sub-Base, Plug-In, Electromechanical Relays, ABE7, TeleFast 2, 16 Channels, 5 mm Relay|Sub-Base, Plug-In, Output, Electromechanical Relays, ABE7, TeleFast 2, 16 Channels, 5 mm Relay
$132.08Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Sub-base type | Output sub-base |
| Range of product | Modicon ABE7 |
| Supply voltage type | DC |
| Product or component type | Sub-base with plug-in electromechanical relay |
| Contacts type and composition | 1 NO |
| Supply voltage | 19...30 V IEC 61131-2 |
| Voltage | 2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1 |
| Voltage drop on power supply fuse | 0.3 V |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Maximum supply current | 1 A |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Maximum current per module | 12 A |
All specifications
| Parameter | Value |
|---|---|
| Maximum current per output common | 5 A screw type terminals |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Mounting mode | By clips 35 mm DIN rail) By screws surface mount with kit) |
| Installation category | II IEC 60664-1 |
| Connections - terminals | Screw type terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 1 x 0.14...1 x 4 mm² AWG 26...AWG 12) solid Screw type terminals, 2 x 0.14...2 x 0.75 mm² AWG 26...AWG 18) flexible with cable end Screw type terminals, 2 x 0.14...2 x 1.5 mm² AWG 26...AWG 16) solid |
| Resistance to incandescent wire | 1382 °F (750 °C) 30 s IEC 60695-2-11 |
| Pollution degree | 2 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn 10...150 Hz)IEC 60068-2-6 |
| Category | US10CP222375 |
| Status LED | 1 LED power ON 1 LED per channel channel status |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Channels | 16 |
| Polarity distribution | Common distribution group of 4 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) IEC 61131-2 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2 |
