Schneider Electric ABE7R16T370

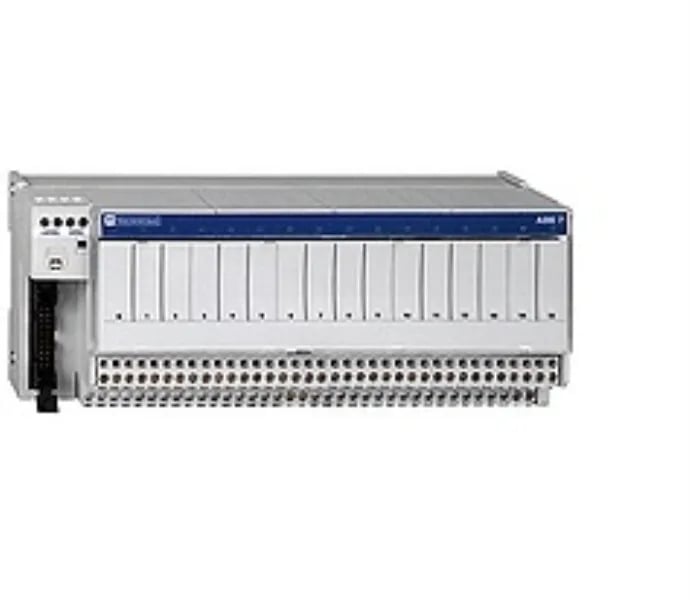

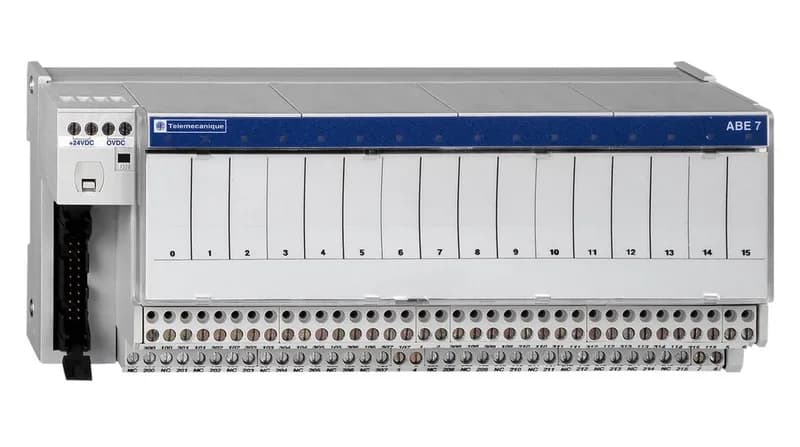

Schneider Electric ABE7R16T370 Modicon ABE7 Output Base, 16

MPNABE7R16T370
Active

Schneider Electric Modicon ABE7, output sub-base with plug-in electromechanical relay, ABE7R16T370, 16 channels, DC supply, 19...30 VDC, 1 A maximum supply current, active production.

$249.97Ref. price · indicative, final on quote
Schneider Electric ABE7R16T370 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ABE7R16T370 key specifications
ParameterValue
Sub-base typeOutput sub-base
Range of productModicon ABE7
Supply voltage typeDC
Product or component typeSub-base with plug-in electromechanical relay
Supply voltage19...30 V IEC 61131-2
Voltage2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1
Voltage drop on power supply fuse0.3 V
[Uimp] rated impulse withstand voltage2.5 kV
Maximum supply current1 A
Short-circuit protection1 A internal fuse, 5 x 20 mm, fast blow PLC end)
IP degree of protectionIP2X conforming to IEC 60529
Installation categoryII IEC 60664-1

All specifications

ABE7R16T370 additional specifications
ParameterValue
Resistance to incandescent wire1382 °F (750 °C) IEC 60695-2-11
Pollution degree2 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Vibration resistance2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
CategoryUS10CP222375
Status LED1 LED per channel (Green) channel status 1 LED (Green) power ON
Fixing modeBy clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit)
Tightening torque5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Channels16
Polarity distributionVolt-free
Resistance to fast transients2 kV level 3 IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation23...140 °F (-5...60 °C) IEC 61131-2
Resistance to electrostatic discharge4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2

Product details

Integrator’s spec check

The Schneider Electric ABE7R16T370 is a Modicon ABE7 output sub-base carrying 16 plug-in electromechanical relay channels. It accepts a 19...30 VDC supply (rated per IEC 61131-2) and draws up to 1 A total module current. The internal fast-blow 1 A fuse (5x20 mm) protects the module from downstream shorts — one less external fuse to wire. Each channel has a green LED for on/off status, with a separate green power LED. Rated for pollution degree 2, IP2X, and surge impulses of 2.5 kV (Uimp), this module is built for the control-panel environment.

Fixes via clips onto 35 mm symmetrical DIN rail or screws onto a solid plate (fixing kit required). Termination torque specified at 0.6 N·m (5.3 lbf·in) on flat Ø 3.5 mm terminals. For full traceability, torque-controlled tools are recommended — the datasheet’s tightening value is your audit trail. The volt-free polarity distribution (per channel dry-contact) means you wire common and load externally, matching standard relay output practice.

MPN
ABE7R16T370
