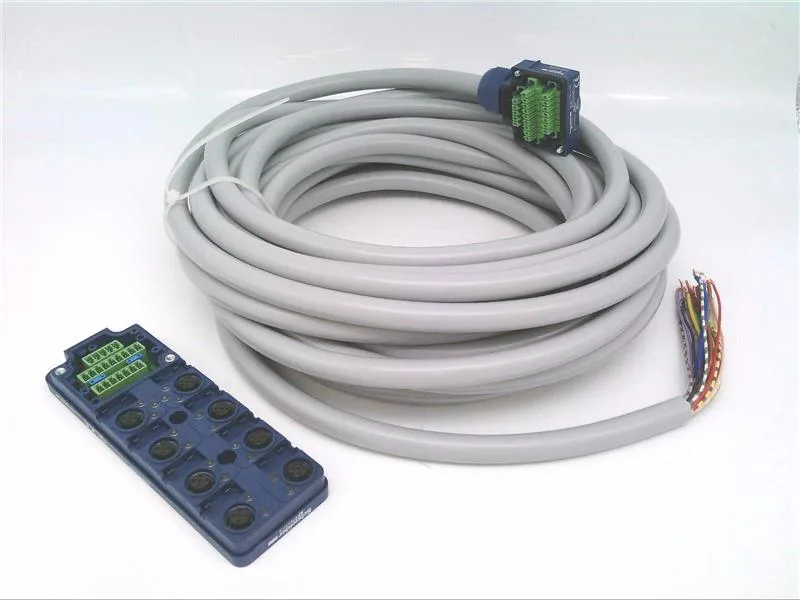

Schneider ABE9C1281L10 8-Way Splitter Module
MPNABE9C1281L10
Obsolete
Square D ABE9C1281L10 8-Way Module M12|SQUARE D ABE9C1281L10: 8-WAY MODULE M12
$148.59 – $246.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Advantys ABE9 |
| Product or component type | IP67 passive splitter box |
| [Ue] rated operational voltage | 24 V DC |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Current per channel | 4 A |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Electrical connection | 1 pre-wired cable connector, 32.8 ft (10 m) 8 female connectors M12 5 pins |
| Shock resistance | 30 gn 11 ms IEC 68-2-2 |
| Vibration resistance | 0.2 gn (f= 57...150 Hz) conforming to IEC 68-2-6, FC tests |
| Category | US1PC1218125 |
| Status LED | 1 LED per channel (Yellow) channel status 2 LEDs (Green) power ON |
| Fixing mode | M4 screw fixing |
All specifications
| Parameter | Value |
|---|---|
| Number of ways | 16 ways |
| Insulation group | Category 3 VDE 0110 |
| Contact resistance | 5000 µOhm |
| Channels | 8 |
| Operating position | Any position |
| Separation of commons | Without or with |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -4...176 °F (-20...80 °C) |
MPN
ABE9C1281L10
