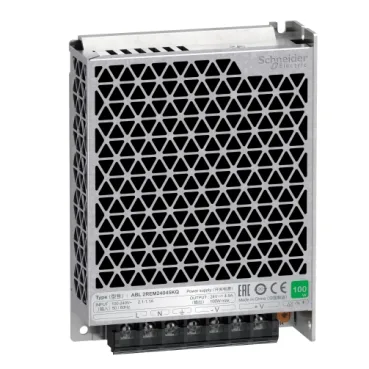

Schneider Electric ABL2REM24045KQ — Switch Mode Power Supplies

Schneider Electric ABL2REM24045KQ

MPNABL2REM24045KQ
Active

single phase power supply, 100...240V input, 24V DC output, 108W, 4,5A, overload

Schneider Electric ABL2REM24045KQ datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ABL2REM24045KQ — Output
ParameterValue
Output voltage24 V DC
Rated power108 W
Output current4.5 A
ABL2REM24045KQ — Input
ParameterValue
Input voltage range100...240 V AC 1 phase
Input frequency47...63 Hz
Inrush current50 A at 100...240 V AC
Power factor (cos phi)0.45
ABL2REM24045KQ — Protection & Approvals
ParameterValue
IP ratingIP20 conforming to IEC 62368-1
Dielectric strength (isolation)3000 V between primary and secondary
Environment / overvoltage categoryClass I conforming to IEC 62368-1
EMC complianceImmunity to electromagnetic interference conforming to EN 55022 class B
MarkingsCE
ABL2REM24045KQ — Identification
ParameterValue
SeriesEasy Modicon ABL2
ABL2REM24045KQ — Performance
ParameterValue
MTBF600000 h at 25 °C
Efficiency89 %
Residual ripple< 150 mV
Line and load regulation< 1 %
Power dissipation13.3 W
ABL2REM24045KQ — Environmental
ParameterValue
Operating temperature-30...70 °C (with current derating of 2.5 % per °C)
Storage temperature-40...85 °C
Vibration resistance4 gn (f= 10...500 Hz) 4 gn
Relative humidity10...95 %
Pollution degree2
Operating altitude< 5000 m
ABL2REM24045KQ — Mechanical
ParameterValue
Terminal / wire connectionFor voltage output: screw connection, connection capacity: 0.75...2.5 mm² AWG 18...AWG 14
Mounting supportPanel mounted
Mounting orientationHorizontal and vertical by combination of X and Z axis
Status indicator (LED)1 LED (green) power ON
Width129 mm
Depth30 mm
MPN
ABL2REM24045KQ
