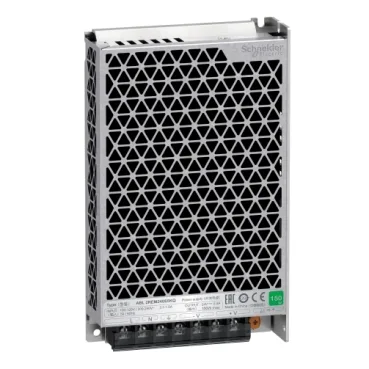

Schneider Electric ABL2REM24065KQ
MPNABL2REM24065KQ
Active
single phase power supply, 100...240V input, 24V DC output, 156W, 6,5A, overload
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Output
| Parameter | Value |
|---|---|
| Output voltage | 24 V DC |
| Rated power | 156 W |
| Output current | 6.5 A |
Input
| Parameter | Value |
|---|---|
| Input voltage range | 200...240 V AC 1 phase 100...120 V AC 1 phase |
| Input frequency | 47...63 Hz |
| Inrush current | 60 A at 200...240 V AC |
| Power factor (cos phi) | 0.45 |
Protection & Approvals
| Parameter | Value |
|---|---|
| IP rating | IP20 conforming to IEC 62368-1 |
| Dielectric strength (isolation) | 3000 V between primary and secondary |
| Environment / overvoltage category | Class I conforming to IEC 62368-1 |
| EMC compliance | Immunity to electromagnetic interference conforming to EN 55022 class B |
| Markings | CE |
Identification
| Parameter | Value |
|---|---|
| Series | Easy Modicon ABL2 |
Performance
| Parameter | Value |
|---|---|
| MTBF | 600000 h at 25 °C |
| Efficiency | 89 % |
| Residual ripple | < 150 mV |
| Line and load regulation | < 1 % |
| Power dissipation | 19.3 W |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -30...70 °C (with current derating of 2.5 % per °C) |
| Storage temperature | -40...85 °C |
| Vibration resistance | 4 gn (f= 10...500 Hz) 4 gn |
| Relative humidity | 10...95 % |
| Pollution degree | 2 |
| Operating altitude | < 5000 m |
Mechanical
| Parameter | Value |
|---|---|
| Terminal / wire connection | For voltage output: screw connection, connection capacity: 0.75...2.5 mm² AWG 18...AWG 14 |
| Mounting support | Panel mounted |
| Mounting orientation | Horizontal and vertical by combination of X and Z axis |
| Status indicator (LED) | 1 LED (green) power ON |
| Width | 159 mm |
| Depth | 30 mm |
MPN
ABL2REM24065KQ
