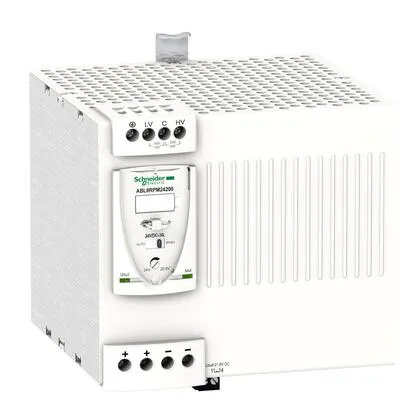

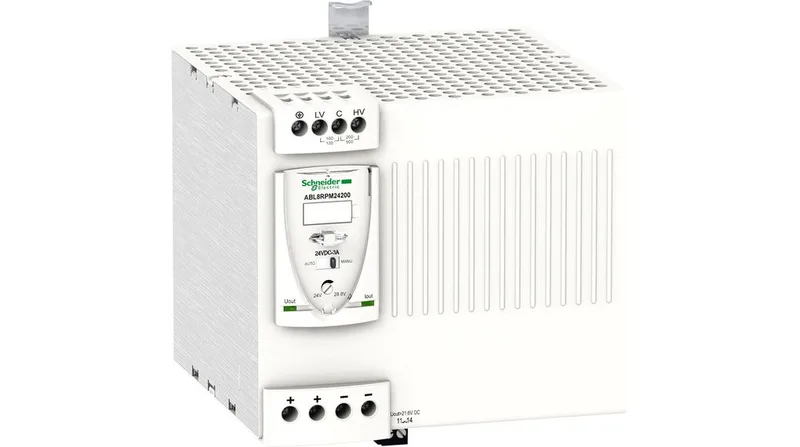

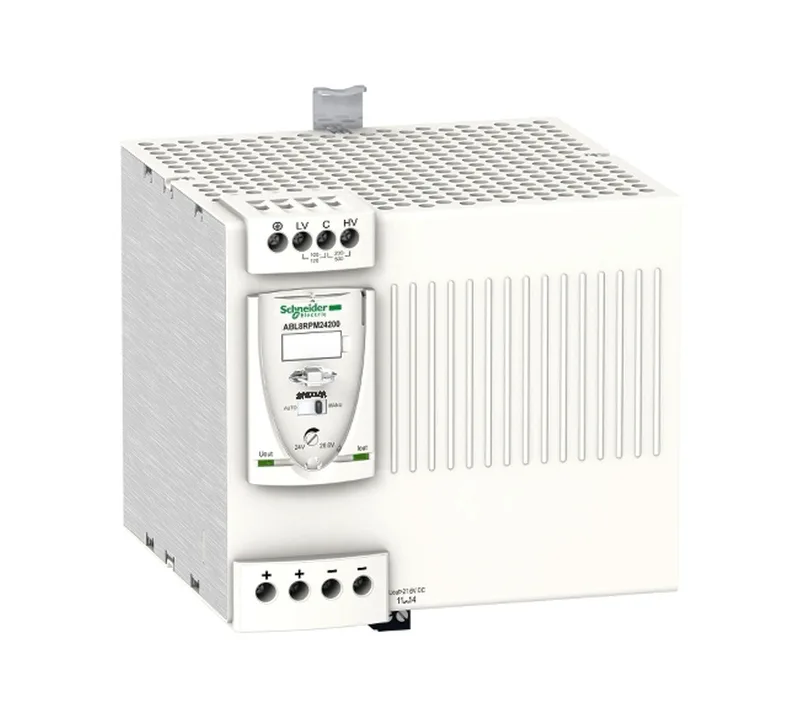

Schneider Electric ABL8RPM24200
MPNABL8RPM24200
Active
Power Supply, 100-240VAC, Input, 24VDC Output, 120W, 20A, 1PH|Power Supply, 100-240 Volt AC, Input, 24 Volt DC Output, 120 Watt, 20 Amp, 1-Phase, Universal
$205.74Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Output protection type | Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30...32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Nominal input voltage | 100...120 V AC single phase N-L1 200...240 V AC phase to phase L1-L2 |
| Output voltage adjustment | 24...28.8 V adjustable |
| Inrush current | 30 A |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Power factor | 0.68 at 240 V AC 0.69 at 120 V AC |
| Rated power in | 480 W |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation in | 57.6 W |
| IP degree of protection | IP20 conforming to IEC 60529 IP10 |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Connections - terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 5.7 in (145 mm) |
| Width | 5.7 in (146 mm) |
| Height | 4.9 in (125 mm) |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Marking | CE |
| Category | US1CP1222525 |
| Efficiency | 88 % |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Output coupling | Series Parallel |
| Operating position | Vertical |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Dielectric strength | 2500 V with between input and ground 3000 V with between input and output 500 V with between output and ground |
| Anti-harmonic filter | Low frequency harmonic currents |
| Efficiency at full load | 85...132 V AC 170...264 V AC |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to EN 55024 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
| Ambient air temperature for operation | 122...140 °F (50...60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13...122 °F (-25...50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
MPN
ABL8RPM24200
