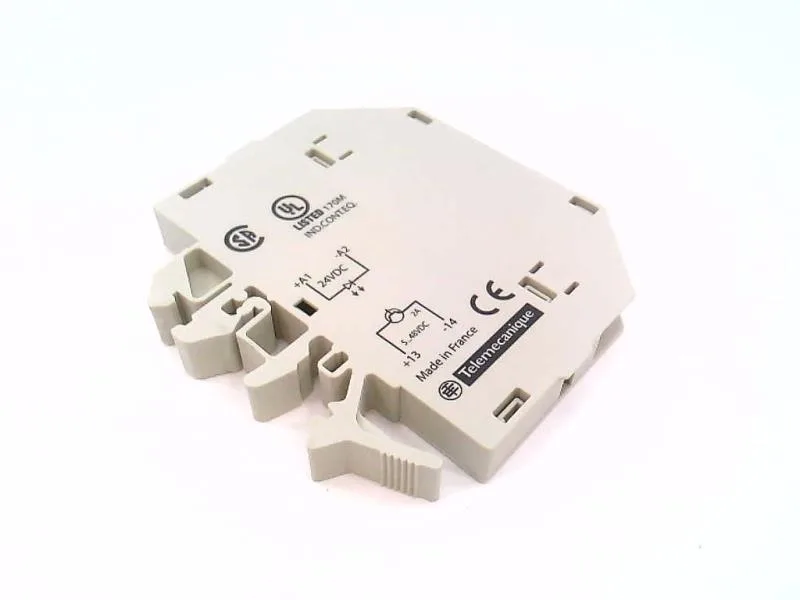

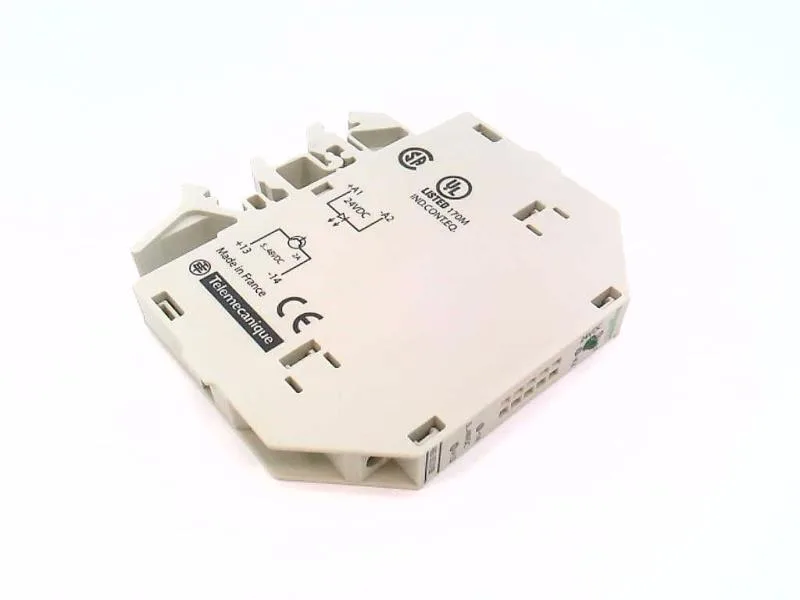

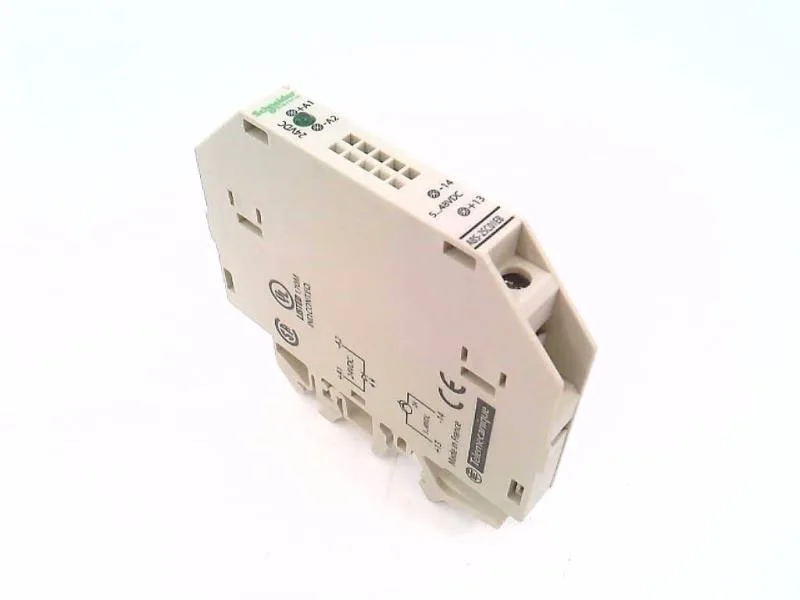

Schneider Electric ABS2SC01EB
MPNABS2SC01EB
Active
INTERFACE RELAY-SOLID STATE 31168-643-52|INTERFACE RELAY-SOLID STATE 31168-643-52
$120.28Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Interface for discrete signals |
| Output circuit type | DC |
| Control circuit type | DC |
| Product or component type | Slim solid state output interface module |
| Contacts type and composition | 1 NC |
| Drop-out voltage | 1.5 V |
| Voltage state 0 guaranteed | 5.6 V |
| Voltage state 1 guaranteed | 16.9 V |
| Coil voltage | 24 V |
| Voltage | 250 V conforming to VDE 0110 group C 300 V conforming to IEC 60947-1 |
| Control circuit voltage limits | 28.8 V |
| [Ue] rated operational voltage | 5...48 V |
All specifications
| Parameter | Value |
|---|---|
| Rated operational voltage limits | <= 57.6 V |
| Maximum residual current | 1 mA |
| Short-circuit protection | 3.15 A external fuse fast blow (Ik <= 1 kA AC and Ik <= 100 A DC) |
| Minimum switching current | 1 mA |
| Current state 0 guaranteed | 2 mA |
| Current state 1 guaranteed | 7.7 mA |
| Maximum [In] rated current | 12 mA |
| [Ie] rated operational current | 1.5 A DC-12 vertical position, single product conforming to IEC 60947-5-1 1.5 A DC-13 vertical position, single product conforming to IEC 60947-5-1 0.6 A DC-14 vertical position, single product conforming to IEC 60947-5-1 0.6 A DC-14 vertical position, touching product conforming to IEC 60947-5-1 0.9 A DC-12 vertical position, touching product conforming to IEC 60947-5-1 0.9 A DC-13 vertical position, touching product conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 2 A at 40 °C |
| Switching frequency | <= 700 Hz on resistive load duty cycle: 50 % |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | Symmetrical DIN rail Asymmetrical DIN rail Combination rail |
| Installation category | II conforming to IEC 60947-1 |
| Cable cross section | 0.6...2.5 mm², 1 or 2 wires flexible without cable end screw clamp terminal 0.27...4 mm², 1 wire rigid 0.34...2.5 mm², 1 or 2 wires flexible with cable end |
| Response time | <= 0.6 ms from state 1 to state 0 |
| Pollution degree | 2 conforming to IEC 60947-1 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Operating altitude | <= 3000 m |
| Vibration resistance | 5 gn conforming to IEC 60068-2-6 (f = 10...150 Hz) |
| Width pitch dimension | 9.5 mm |
| Standards | IEC 60947-5-1 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Flame retardance | V0 conforming to UL 94 |
| Local signalling | Green mechanical indicator for position of contacts and 1 green LED control signal state |
| Operating position | Any position |
| Dielectric strength | 2500 V between wired interface and earth for 1 minute 4000 V between I/O for 1 minute |
| Protective treatment | TC |
| Reverse polarity protection | Control circuit: internal Output circuit: internal |
| Electromagnetic compatibility | Electromagnetic field immunity test: level 3 10 V/m between 27...1000 MHz conforming to IEC 61000-4-3 Electrostatic discharge immunity test: level 3 8 kV conforming to IEC 61000-4-2 Fast transients immunity test: level 3 on input/output 1 kV conforming to IEC 61000-4-4 Fast transients immunity test: level 3 on power supply 2 kV conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test conforming to IEC 60947-1 |
| Sale per indivisible quantity | 5 |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -25...70 °C at Us -5...55 °C unrestricted operation |
MPN
ABS2SC01EB
