Schneider Electric ASCOLVATS7000
MPNASCOLVATS7000
Obsolete

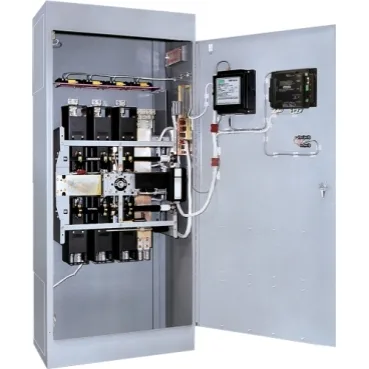

ASCO 7000 SERIES Power Transfer Switch [TAA, BAA, BABA]
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Monochrome |
| Product type | Automatic transfer switch |
| Communication network type | RS485 Ethernet Modbus |
| Voltage | 208...600 V AC 50/60 Hz 5 kV 15 kV |
| Current rating | 30...4000 A |
| Poles | 2P 3P 4P |
| Phases | Single phase Three phase |
| NEMA degree of protection | NEMA 3R/4X/12 |
| User interface | Base controller with integrated LCD display |
| Operating altitude | > 6561.68 ft (2000 m) |
| Max humidity rating at 40 | 50 % |
| Standards | UL 1008 IEC 60947-6-1 |
All specifications
| Parameter | Value |
|---|---|
| Compliance (Compliance) | TAA BAA BABA BAA via COTS |
| Operating mode | AUTO |
| Transfer speed | < 100 ms |
| Controller group | 5 |
| Provided equipment | LED status indicator front panel |
| Intended application | Mission critical |
| Neutral configurations | Solid neutral Switched neutral Overlapping |
| Service entrance rated | Option |
| Open or closed transfer mode | Open Closed |
| Bypass isolation functionality | No |
| Ambient air temperature for operation | 23...104 °F (-5...40 °C) |
MPN
ASCOLVATS7000
