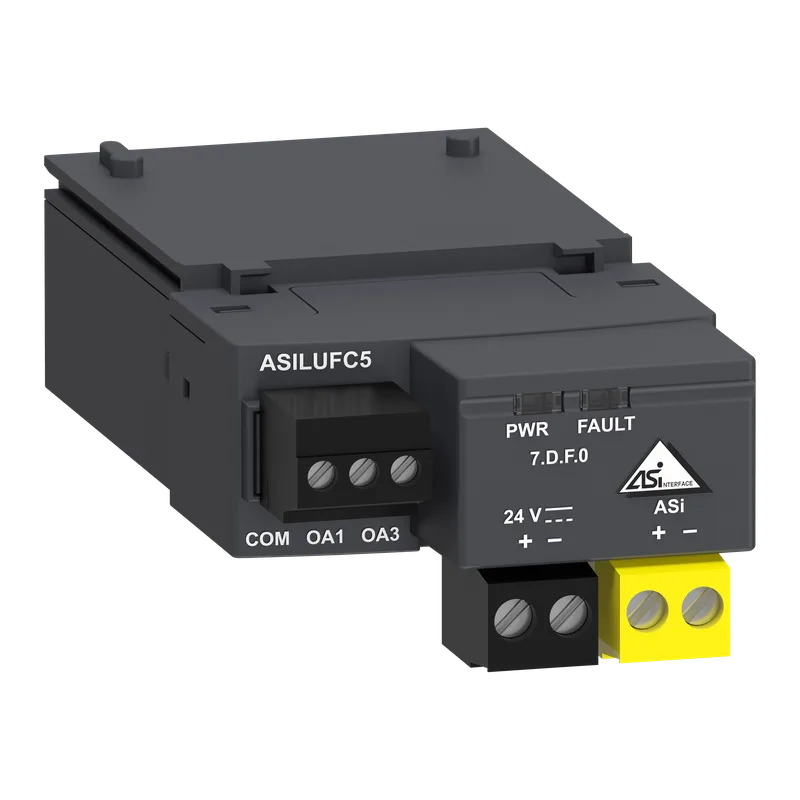

Schneider ASILUFC5 AS-Interface Module
MPNASILUFC5
Obsolete
AS-Interface Communication Module, TeSys Ultra, 24VDC|AS-Interface Communication Module, TeSys Ultra, 24VDC
$68.58Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | AS-Interface |
| Product or component type | Communication module |
| Current consumption | 200 mA at 24 V output 25 mA normal operation 30 mA fault operation |
| Switching current capacity | 500 mA at 24 V against short-circuits solid state |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Communication port protocol | Profibus DP |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Connection pitch | 3.81 mm output 5.08 mm input |
| Connections - terminals | Input: screw clamp terminals 1 cable(s) 0.2...1.5 mm²flexible without cable end Input: screw clamp terminals 1 cable(s) 0.2...1.5 mm²rigid without cable end Input: screw clamp terminals 1 cable(s) 0.25...1.5 mm²flexible with cable end Input: screw clamp terminals 2 cable(s) 0.2...1 mm²flexible without cable end Input: screw clamp terminals 2 cable(s) 0.2...1 mm²rigid without cable end Input: screw clamp terminals 2 cable(s) 0.25...1 mm²flexible with cable end Input: screw clamp terminals 2 cable(s) 0.5...1 mm²flexible with cable end Output: screw clamp terminals 1 cable(s) 0.14...1 mm²flexible without cable end Output: screw clamp terminals 1 cable(s) 0.14...1 mm²rigid without cable end Output: screw clamp terminals 1 cable(s) 0.25...0.5 mm²flexible with cable end Output: screw clamp terminals 1 cable(s) 0.25...1 mm²flexible with cable end Output: screw clamp terminals 2 cable(s) 0.14...0.5 mm²rigid without cable end Output: screw clamp terminals 2 cable(s) 0.14...0.75 mm²flexible without cable end Output: screw clamp terminals 2 cable(s) 0.25...0.34 mm²flexible with cable end Output: screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end |
| Range | TeSys |
| Addressing | 31 slaves |
| Local signalling | 2 LEDs front panel |
| Device short name | ASILUF |
| Tightening torque | Input: 0.5...0.6 N.m3.5 mm Output: 0.2...0.25 N.m2.5 mm |
| Device application | Communication |
| Main function available | AS-Interface communication module |
MPN
ASILUFC5
