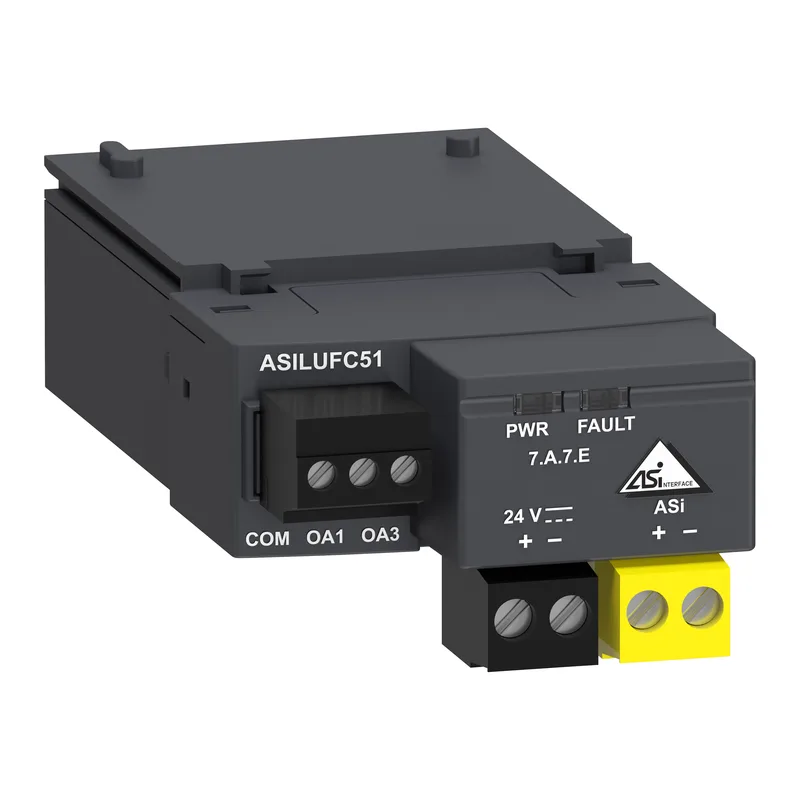

Schneider ASILUFC51 AS-Interface Module
MPNASILUFC51
Active
SQUARE D ASILUFC51: AS-I/2 COMMUNICATION MODULE
$69.85Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | AS-Interface |
| Product or component type | Communication module |
| Current consumption | 200 mA 24 V output 25 mA normal operation 30 mA fault condition |
| I/O channels | 2 dedicated to starter-controller coil operation |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Physical interface | 7.A.7.E |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Connection pitch | 0.15 in (3.81 mm) output 0.20 in (5.08 mm) input |
| Connections - terminals | Input screw clamp terminals 1 0.0003...0.002 in² (0.2...1.5 mm²)flexible without cable end Input screw clamp terminals 1 0.0003...0.002 in² (0.2...1.5 mm²)rigid without cable end Input screw clamp terminals 1 0.0004...0.002 in² (0.25...1.5 mm²)flexible with cable end Input screw clamp terminals 2 0.0003...0.002 in² (0.2...1 mm²)flexible without cable end Input screw clamp terminals 2 0.0003...0.002 in² (0.2...1 mm²)rigid without cable end Input screw clamp terminals 2 0.0004...0.002 in² (0.25...1 mm²)flexible with cable end Input screw clamp terminals 2 0.0008...0.002 in² (0.5...1 mm²)flexible with cable end Output screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²)flexible without cable end Output screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²)rigid without cable end Output screw clamp terminals 1 0.0004...0.0008 in² (0.25...0.5 mm²)flexible with cable end Output screw clamp terminals 1 0.0004...0.002 in² (0.25...1 mm²)flexible with cable end Output screw clamp terminals 2 0.0002...0.0008 in² (0.14...0.5 mm²)rigid without cable end Output screw clamp terminals 2 0.0002...0.001 in² (0.14...0.75 mm²)flexible without cable end Output screw clamp terminals 2 0.0004...0.0005 in² (0.25...0.34 mm²)flexible with cable end Output screw clamp terminals 2 0.0008 in² (0.5 mm²)flexible with cable end |
| Range | TeSys |
| Category | US10I1122398 |
All specifications
| Parameter | Value |
|---|---|
| Addressing | 62 slaves |
| Return time | 10 ms |
| Local signalling | 2 LEDs front panel |
| Device short name | ASILUL |
| Tightening torque | Input: 4.4...5.3 lbf.in (0.5...0.6 N.m)0.1 in (3.5 mm) Output: 1.8...2.21 lbf.in (0.2...0.25 N.m)0.10 in (2.5 mm) |
| Device application | Communication |
| Main function available | Communication module |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
ASILUFC51
