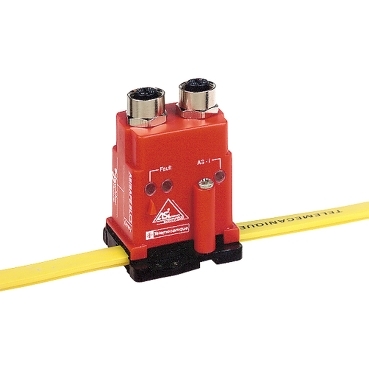

Schneider Electric ASISSLC2
MPNASISSLC2
Obsolete
AS-Interface -for product with connector - 1 cable entry M12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Supply | Via AS-Interface |
| Standards | EN 954-1 category 4 EN/IEC 60947-5-1 EN/IEC 60204-1 ISO 13849-1 category 4 |
| Addressing | Using adjustment terminal |
| Cable entry | 2 entries for M12 |
| AS-Interface | 0.B.F.F |
| Product weight | 0.05 kg |
| Shock resistance | 10 gn |
| Number of contacts | 2 |
| Current consumption | 45 mA for AS-Interface line |
| Vibration resistance | 5 gn |
| Power consumption in | 1.2 W |
| Connections - terminals | For AS-Interface line: 1 connector M12 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Product or component type | Interface for products with connector |
| Supply voltage | 24 V DC - 15...15 % |
| Ambient air temperature for storage | -25...85 °C |
| Ambient air temperature for operation | -10...55 °C |
MPN
ASISSLC2
