ATS48D88Q - Schneider Electric
MPNATS48D88Q
Obsolete

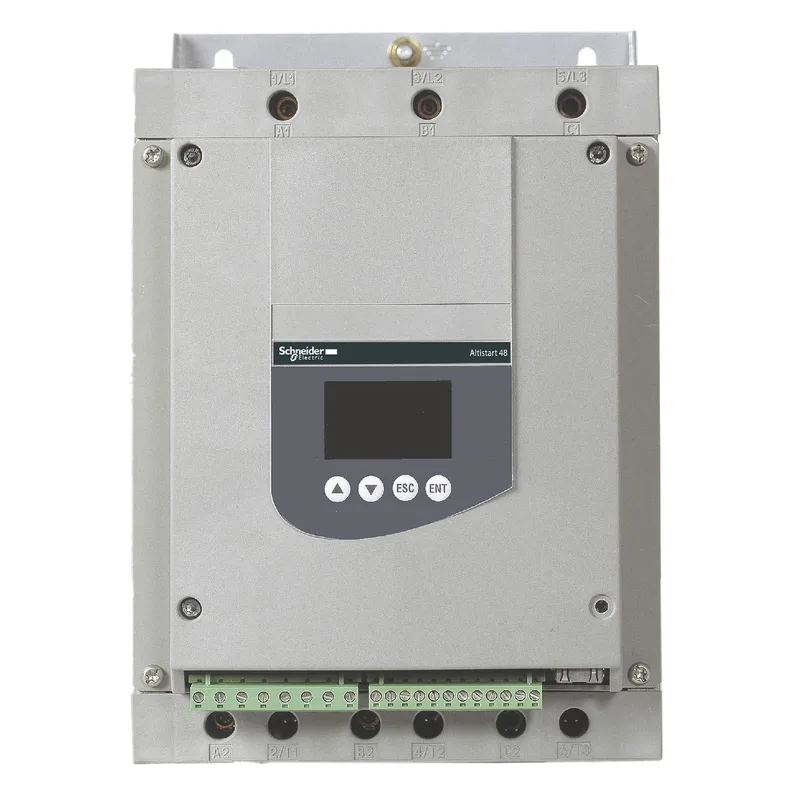

Soft starter for asynchronous motor - ATS48 - 81 A - 230..415 V - 18.5..75 KW
$2,215.00 – $2,714.40Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Marking | CE |
| Standards | IEC 60947-4-2 |
| Motor power | 55 kW at 400 V connection to the motor delta terminals for severe applications 75 kW at 400 V connection to the motor delta terminals for standard applications 18.5 kW at 230 V connection in the motor supply line for severe applications 22 kW at 230 V connection in the motor supply line for standard applications 37 kW at 230 V connection to the motor delta terminals for severe applications 37 kW at 400 V connection in the motor supply line for severe applications 45 kW at 230 V connection to the motor delta terminals for standard applications 45 kW at 400 V connection in the motor supply line for standard applications |
| Protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
| Range of product | Altistart 48 |
| Device connection | To the motor delta terminals In the motor supply line |
| Device short name | ATS48 |
| Discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Product destination | Asynchronous motors |
| Utilisation category | AC-53A |
| Discrete input number | 5 |
| Power supply frequency | 50...60 Hz - 5...5 % |
| Ue power supply voltage | 230...415 V - 15...10 % |
| Product or component type | Soft starter |
| Product specific application | Heavy duty industry and pumps |
MPN
ATS48D88Q
