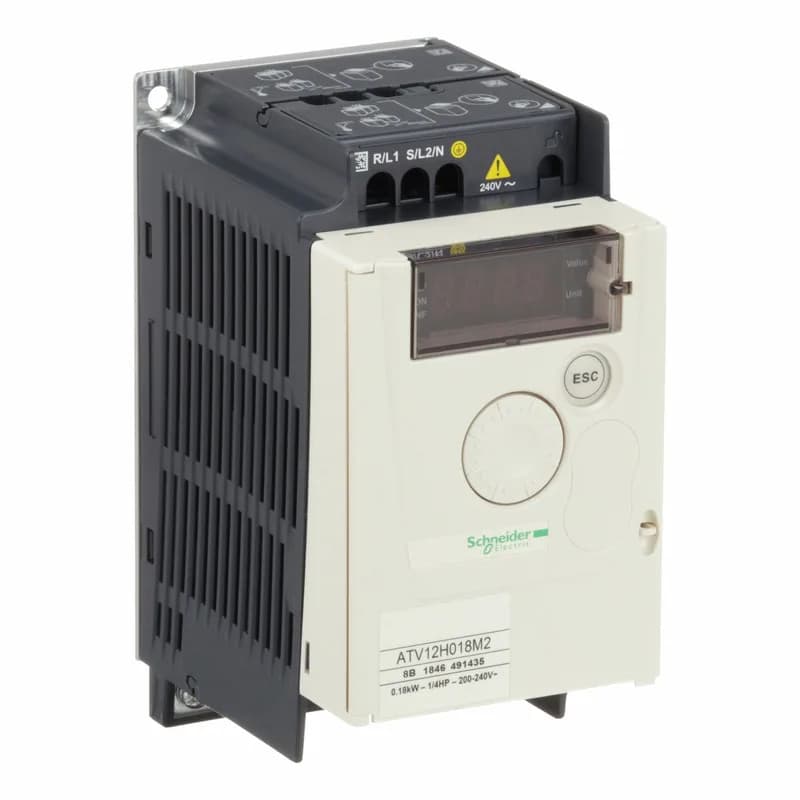

Schneider Electric ATV12H018M2
MPNATV12H018M2
Active
Frequency Converter, ATV12, 0.18kW, 0.25hp, 200... 240V
$110.49 – $289.65Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Connector type | 1 RJ45 |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| Range of product | Altivar 12 |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Maximum output voltage | 240 V |
| Supply voltage | 200...240 V - 15...10 % |
| Line current | 3.4 A 100 V heavy duty) 2.8 A 120 V heavy duty) |
| Nominal output current | 1.4 A |
| Continuous output current | 1.4 A 4 kHz |
| Maximum transient current | 2.1 A 60 s heavy duty) 2.3 A 2 s heavy duty) |
| Maximum input current per phase | 2.8 A |
All specifications
| Parameter | Value |
|---|---|
| Base load current at high overload | 1.4 A |
| Apparent power | 0.7 kVA 240 V heavy duty) |
| Motor power | 0.18 kW |
| Power dissipation in | Natural 18.0 W |
| Maximum horse power rating | 0.25 hp |
| Supply frequency | 50/60 Hz +/- 5 % |
| Network frequency | 50-60 Hz |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Frequency resolution | Analog input converter A/D, 10 bits Display unit 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Nominal switching frequency | 4 kHz |
| Speed drive output frequency | 0.5...400 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| IP degree of protection | IP20 |
| Physical interface | 2-wire RS 485 |
| Communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| Communication port protocol | Modbus |
| Mounting mode | Cabinet mount |
| EMC filter | Integrated |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Operating altitude | > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 1 gn 13...200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3...13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Depth | 4.02 in (102.2 mm) |
| Width | 2.8 in (72 mm) |
| Height | 5.6 in (143 mm) |
| Product weight | 1.5 lb(US) (0.7 kg) |
| Standards | UL 508C UL 618000-5-1 IEC 61800-5-1 IEC 61800-3 |
| Marking | CE |
| Category | US1CP4B22042 |
| Insulation | Electrical between power and control |
| Data format | 8 bits, configurable odd, even or no parity |
| Noise level | 0 dB |
| Speed range | 1...20 |
| Time constant | 20 ms +/- 1 ms for reference change |
| Assembly style | On base plate |
| Linearity error | +/- 0.3 % of maximum value analogue input |
| Regulation loop | Adjustable PID regulator |
| Method of access | Server Modbus serial |
| Quantity per set | Set of 1 |
| Sampling duration | 20 ms +/- 1 ms logic input 10 ms analogue input |
| Tightening torque | 7.08 lbf.in (0.8 N.m) |
| Transmission rate | 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s |
| Operating position | Vertical +/- 10 degree |
| Transmission frame | RTU |
| Number of addresses | 1...247 |
| Relay output number | 1 |
| Overvoltage category | Class III |
| Prospective line isc | 1 kA |
| Transient overtorque | 150...170 % of nominal motor torque depending on drive rating and type of motor |
| Analogue input number | 1 |
| Braking to standstill | By DC injection |
| Discrete input number | 4 |
| Analogue output number | 1 |
| Discrete output number | 2 |
| Motor slip compensation | Preset in factory Adjustable |
| Brake chopper integrated | False |
| Electromagnetic emission | Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable Conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable Conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable Conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m) |
| Product specific application | Simple machine |
| 4 quadrant operation possible | False |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Surge immunity test level 3 conforming to IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| With sft fct safe stop 2 (SS2) | False |
| Ambient air transport temperature | -13...158 °F (-25...70 °C) |
| Asynchronous motor control profile | Voltage/frequency ratio (V/f) Sensorless flux vector control Quadratic voltage/frequency ratio |
| Acceleration and deceleration ramps | U Linear from 0 to 999.9 s S |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...104 °F (-10...40 °C) without derating 104...140 °F (40...60 °C) with current derating 2.2 % per °C |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| With safety function safe stop 1 (SS1) | False |
| With safety function safe position | False |
| With safety function safe direction | False |
| With safety function safe torque off | False |
| With safety function safe programmable logic | False |
| With safety function safe speed monitor | False |
| With safety function safe operating stop | False |
| With safety function safely limited speed | False |
| With safety function safely limited position | False |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
