Schneider Electric ATV6000C129A1111NA3 — AC Drive (VFD) 480V

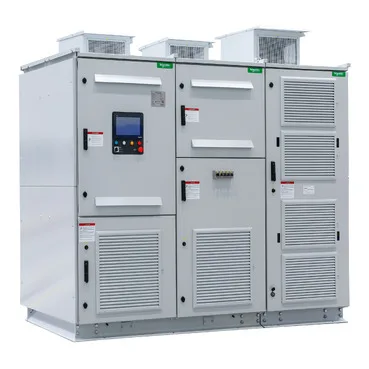

Schneider ATV6000C129A1111NA3 Altivar Process MV Drive, 1030

Name: ATV6000C129A1111NA3
Brand: Schneider Electric
SKU: ATV6000C129A1111NA3
Availability: LimitedAvailability
Author: Mobile-Repair Mona

MPNATV6000C129A1111NA3

Active

Schneider Electric Altivar Process ATV6000, ATV6000C129A1111NA3, medium voltage drive, 1030 kW normal duty / 820 kW heavy duty, 54 A heavy duty line current, floor-standing enclosure 4160 x 2751 x 1600 mm.

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ATV6000C129A1111NA3 — Identification
Parameter	Value
Product type	Medium voltage variable speed drive
Device short name	ATV6000
Product range / family	Altivar Process ATV6000

ATV6000C129A1111NA3 — Power & Output
Parameter	Value
Motor power (kW)	1030 kW for normal duty 820 kW for heavy duty
Continuous output current	65 A normal duty 52 A heavy duty
Max. transient current	97.5 A during 3 s (normal duty) 97.5 A during 3 s (heavy duty)
Apparent power	1290 kVA

ATV6000C129A1111NA3 — Input / Supply
Parameter	Value
Rated supply voltage range	11 kV +/- 10 %
Input line current	54 A heavy duty 67.8 A normal duty
Network number of phases	3 phases
Internal/auxiliary supplies	Internal supply for digital inputs and PoE 24 V DC 21...27 V, Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, External supply for digital inputs 24 V DC 19...30 V External supply for control circuit 100...240 V AC 47...63 Hz External supply for control circuit 120...370 V DC +/- 10 % 1 kVA Auxiliary power supply 230 V AC +/- 10 % External supply for cooling fan 400 V AC +/- 10 % 7 kVA

ATV6000C129A1111NA3 — Control & Performance
Parameter	Value
Output frequency range	0.1...120 Hz
Asynchronous motor control modes	Closed loop vector control U/F vector control Energy saving control Vector control with slip compensation in open loop
Synchronous motor control modes	Permanent magnet control in open loop Permanent magnet control in close loop Line start permanent magnet motor

ATV6000C129A1111NA3 — Protection & EMC
Parameter	Value
Integrated EMC filter class	Integrated conforming to IEC 61800-3 category C3 control Integrated conforming to IEC 61800-3 category C4 power
Protection functions	Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overvoltages on the DC bus: drive Thermal overload for transformer: drive Cabinet overheating: drive Overcurrent: drive Overload: drive Short-circuit protection: drive IGBT for each cell: drive Thermal protection: motor Motor phase break: motor Motor earth fault: motor Break on the control circuit: drive Fan monitoring: drive
EMC immunity tests	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Prospective short-circuit current (Isc)	31.5 kA for 150 ms

ATV6000C129A1111NA3 — Mechanical & Cooling
Parameter	Value
IP degree of protection	IP31 conforming to IEC 60529
Acoustic noise level	80 dB
Cooling method	Forced convection
Assembly / installation style	In floor-standing enclosure

ATV6000C129A1111NA3 — Environmental
Parameter	Value
Operating ambient temperature	0...40 °C 40...50 °C with derating factor -25...70 °C during transport
Operating altitude	1000...2000 m with derating factor
Relative humidity	5...95 % without condensation conforming to IEC 60068-2-3
Storage / transport temperature	0...50 °C
Pollution degree	2 conforming to IEC 61800-5-1

ATV6000C129A1111NA3 — Approvals
Parameter	Value
Certifications & marking	CE EAC
Standards compliance	IEC 61800-3 EN/IEC 61800-4 IEC 61800-5-1 IEC 60529 IEEE 519:1992 EN/IEC 60076

ATV6000C129A1111NA3 — Communication
Parameter	Value
Communication protocols	Ethernet IP/Modbus TCP

Product details

The Schneider ATV6000C129A1111NA3 is a medium-voltage Altivar Process drive in a floor-standing enclosure, built for permanent magnet, asynchronous, and synchronous motors. It delivers 1030 kW in normal duty and 820 kW in heavy duty, with a line current of 54 A heavy duty / 67.8 A normal duty. The 54-pulse diode rectifier bridge and IGBT inverter cells keep THDI below 3% per IEEE 519-1992.

Footprint and installation

This drive occupies a floor-standing footprint of 4160 mm wide by 2751 mm tall by 1600 mm deep. Cable entry is from the bottom. The enclosure is light grey RAL 7035. A plinth is included. Plan for forced convection cooling clearance and a 400 V AC fan supply.

Control and I/O

The drive includes a 10-inch LCD touch screen HMI. It has 8 programmable digital inputs (DI7, DI8 configurable as pulse inputs up to 30 kHz), configurable analog inputs (0-10 V DC or 0-20 mA, 12-bit), and configurable analog outputs (0-10 V DC or 0-20 mA, 10-bit). Three configurable relay outputs handle fault and sequence signaling. Communication slots support Profibus DP V1, PROFINET, DeviceNet, CANopen, EtherCAT, and encoder interfaces. Standard RJ45 ports provide Ethernet IP/Modbus TCP and Modbus serial.
