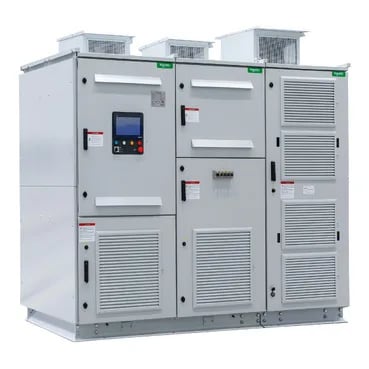

Schneider Electric ATV6000C293A3333NA3 — AC Drive (VFD) 480V

Schneider ATV6000C293A3333NA3 ATV6000 VFD, 2340 kW

MPNATV6000C293A3333NA3
Active

Schneider Electric Altivar Process ATV6000, ATV6000C293A3333NA3, 2340 kW normal duty / 1870 kW heavy duty, 513 A line current, 18-pulse diode rectifier, floor-standing enclosure.

Schneider Electric ATV6000C293A3333NA3 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

ATV6000C293A3333NA3 — Identification
ParameterValue
Product typeMedium voltage variable speed drive
Device short nameATV6000
Product range / familyAltivar Process ATV6000

Power & Output

ATV6000C293A3333NA3 — Power & Output
ParameterValue
Motor power (kW)2340 kW for normal duty 1870 kW for heavy duty
Continuous output current490 A normal duty 392 A heavy duty
Max. transient current735 A during 3 s (normal duty) 735 A during 3 s (heavy duty)
Apparent power2930 kVA

Input / Supply

ATV6000C293A3333NA3 — Input / Supply
ParameterValue
Rated supply voltage range3.3 kV +/- 10 %
Input line current513 A normal duty 408 A heavy duty
Network number of phases3 phases
Internal/auxiliary suppliesInternal supply for digital inputs and PoE 24 V DC 21...27 V, Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, External supply for digital inputs 24 V DC 19...30 V External supply for control circuit 100...240 V AC 47...63 Hz External supply for control circuit 120...370 V DC +/- 10 % 1 kVA Auxiliary power supply 230 V AC +/- 10 % External supply for cooling fan 400 V AC +/- 10 % 13 kVA

Control & Performance

ATV6000C293A3333NA3 — Control & Performance
ParameterValue
Output frequency range0.1...120 Hz
Asynchronous motor control modesClosed loop vector control U/F vector control Energy saving control Vector control with slip compensation in open loop
Synchronous motor control modesPermanent magnet control in open loop Permanent magnet control in close loop Line start permanent magnet motor

Protection & EMC

ATV6000C293A3333NA3 — Protection & EMC
ParameterValue
Integrated EMC filter classIntegrated conforming to IEC 61800-3 category C3 control Integrated conforming to IEC 61800-3 category C4 power
Protection functionsLine supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overvoltages on the DC bus: drive Thermal overload for transformer: drive Cabinet overheating: drive Overcurrent: drive Overload: drive Short-circuit protection: drive IGBT for each cell: drive Thermal protection: motor Motor phase break: motor Motor earth fault: motor Break on the control circuit: drive Fan monitoring: drive
EMC immunity testsElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Prospective short-circuit current (Isc)31.5 kA for 150 ms

Mechanical & Cooling

ATV6000C293A3333NA3 — Mechanical & Cooling
ParameterValue
IP degree of protectionIP31 conforming to IEC 60529
Acoustic noise level80 dB
Cooling methodForced convection
Assembly / installation styleIn floor-standing enclosure

Environmental

ATV6000C293A3333NA3 — Environmental
ParameterValue
Operating ambient temperature0...40 °C 40...50 °C with derating factor -25...70 °C during transport
Operating altitude1000...2000 m with derating factor
Relative humidity5...95 % without condensation conforming to IEC 60068-2-3
Storage / transport temperature0...50 °C
Pollution degree2 conforming to IEC 61800-5-1

Approvals

ATV6000C293A3333NA3 — Approvals
ParameterValue
Certifications & markingCE EAC
Standards complianceIEC 61800-3 EN/IEC 61800-4 IEC 61800-5-1 IEC 60529 IEEE 519:1992 EN/IEC 60076

Communication

ATV6000C293A3333NA3 — Communication
ParameterValue
Communication protocolsEthernet IP/Modbus TCP Modbus serial

Product details

The Schneider Electric ATV6000C293A3333NA3 is an Altivar Process ATV6000 medium-voltage variable frequency drive in a floor-standing enclosure. It is rated for 2340 kW normal duty and 1870 kW heavy duty, with a corresponding line current of 513 A normal duty and 408 A heavy duty. The 18-pulse diode rectifier input keeps total harmonic current distortion below 3% per IEEE 519-1992, and the integrated EMC filter meets IEC 61800-3 category C3 on the control side and C4 on the power side.

Physical footprint and installation

The enclosure measures 4460 mm wide by 1600 mm deep by 2751 mm high. Cable entry is at the bottom. The assembly includes power cells, a phase-shifting transformer, cooling fans, and an HMI with a 10-inch LCD touch screen. Forced convection cooling is standard.

Control and communications

Slot A accepts communication modules for Profibus DP V1, PROFINET, DeviceNet, CANopen (RJ45, SUB-D 9, or screw terminals), or EtherCAT. Slot B accepts encoder interface modules (5/12 V digital, analog, resolver, or HTL). Both slots can also host digital/analog I/O extension or output relay extension modules. The control block provides two RJ45 ports for Ethernet IP/Modbus TCP and one RJ45 for Modbus serial.

Protection and compliance

Protection covers line supply overvoltage, undervoltage, and phase loss; DC bus overvoltage; transformer thermal overload; cabinet overheating; overcurrent; overload; short-circuit; motor thermal protection; motor phase break; motor earth fault; control circuit break; and fan monitoring. The drive carries CE and EAC marking and complies with IEC 61800-3, IEC 61800-4, IEC 61800-5-1, IEC 60529, and IEEE 519:1992.

Frequently asked questions

What are the key ratings of the ATV6000C293A3333NA3?

Motor power is 2340 kW normal duty and 1870 kW heavy duty. Line current is 513 A normal duty and 408 A heavy duty. Apparent power is 2930 kVA. Input is an 18-pulse diode rectifier with total harmonic current distortion below 3%.

What compliance documentation does this drive carry?

CE and EAC marking. Standards include IEC 61800-3, IEC 61800-4, IEC 61800-5-1, IEC 60529, and IEEE 519:1992.

What are the physical dimensions of the ATV6000C293A3333NA3?

Width 4460 mm, depth 1600 mm, height 2751 mm. Cable entry is at the bottom. The enclosure is floor-standing.

MPN
ATV6000C293A3333NA3
