Schneider Electric ATV9B0C63R4 — AC Drive (VFD) 480V

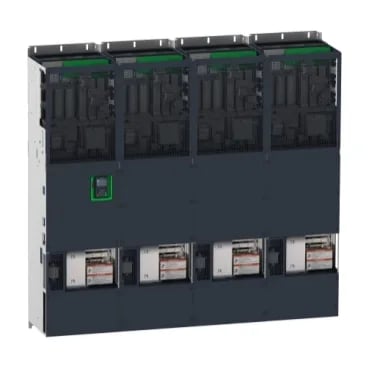

Schneider ATV9B0C63R4 Altivar Process ATV900, 630 kW 440 V n

MPNATV9B0C63R4
Active

Schneider Electric Altivar Process ATV900, modular drive, ATV9B0C63R4, 630 kW at 440 V normal duty, 500 kW heavy duty, IP00, forced convection cooling.

Schneider Electric ATV9B0C63R4 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

ATV9B0C63R4 — Identification
ParameterValue
Product typeVariable speed drive
Device short nameATV9B0
Product range / familyAltivar Process ATV900

Power & Output

ATV9B0C63R4 — Power & Output
ParameterValue
Motor power (kW)630.0 kW at 440 V normal duty 500.0 kW at 440 V heavy duty 630.0 kW at 440 V normal duty regenerative mode 500.0 kW at 440 V heavy duty regenerative mode
Continuous output current1140.0 A at 2.5 kHz normal duty 900.0 A at 2.5 kHz heavy duty 1140.0 A at 2.5 kHz normal duty regenerative mode 900.0 A at 2.5 kHz heavy duty regenerative mode
Max. transient current1368.0 A during 60 s (normal duty) 1350.0 A during 60 s (heavy duty) 1368.0 A during 60 s regenerative mode (normal duty) 1350.0 A during 60 s regenerative mode (heavy duty)
Apparent power673.0 kVA at 440 V normal duty 537.0 kVA at 440 V heavy duty 590.0 kVA at 440 V normal duty regenerative mode 465.8 kVA at 440 V heavy duty regenerative mode

Input / Supply

ATV9B0C63R4 — Input / Supply
ParameterValue
Rated supply voltage range440 V - 15...10 %
Input line current883.0 A at 440 V (normal duty) 704.0 A at 440 V (heavy duty) 774.1 A at 440 V regenerative mode (normal duty) 611.2 A at 440 V regenerative mode (heavy duty)
Network number of phases3 phases
Internal/auxiliary suppliesExternal supply for digital inputs: 24 V DC (19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO: 24 V DC (21...27 V), 1 MOhm at 500 V DC, 1 min, earth

Control & Performance

ATV9B0C63R4 — Control & Performance
ParameterValue
Output frequency range0.1...599 Hz
Asynchronous motor control modesOptimized torque mode Variable torque standard Constant torque standard
Synchronous motor control modesPermanent magnet motor Synchronous reluctance motor

Protection & EMC

ATV9B0C63R4 — Protection & EMC
ParameterValue
Integrated EMC filter classIntegrated with 300 m conforming to IEC 61800-3 category C3
Protection functionsThermal protection: motor Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive
EMC immunity testsElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Mechanical & Cooling

ATV9B0C63R4 — Mechanical & Cooling
ParameterValue
IP degree of protectionIP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529
Acoustic noise level77 dB conforming to 86/188/EEC
Cooling methodForced convection

Environmental

ATV9B0C63R4 — Environmental
ParameterValue
Operating ambient temperature-5...40 °C without derating 40...50 °C with derating factor
Operating altitude0...4800 m with current derating above 1000m
Relative humidity5...95 % without condensation conforming to IEC 60068-2-3
Storage / transport temperature-40...70 °C
Pollution degree2 conforming to IEC 61800-5-1
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 0.5 gn (f= 13...200 Hz) conforming to IEC 60068-2-6

Approvals

ATV9B0C63R4 — Approvals
ParameterValue
Certifications & markingCE
Standards complianceIEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1

Communication

ATV9B0C63R4 — Communication
ParameterValue
Communication protocolsEtherNet/IP Modbus serial Modbus TCP

Product details

The Schneider ATV9B0C63R4 is an Altivar Process ATV900 modular drive rated for 630 kW at 440 V normal duty and 500 kW at 440 V heavy duty, with matching apparent power of 673 kVA and 537 kVA respectively. Line current at 440 V normal duty is 883 A; heavy duty pulls 704 A. In regenerative mode, normal duty line current is 774.1 A and heavy duty is 611.2 A. The drive operates on a 3-phase 50/60 Hz supply and includes an integrated EMC filter compliant with IEC 61800-3 category C3 for 300 m cable runs. Control power comes from an external 24 V DC supply (19...30 V) for digital inputs, with a separate internal 24 V DC (21...27 V) supply for digital inputs and STO. A 10.5 V DC reference is provided for a 1 to 10 kΩ potentiometer. The drive supports synchronous and asynchronous motors with adjustable switching frequency from 2 to 8 kHz. Safety function STO (Safe Torque Off) is rated SIL 3. The drive carries CE marking and complies with IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. Pollution degree 2 per IEC 61800-5-1.

Fieldbus and option slots

Three option card slots (A, B, C) accept communication modules for Profibus DP V1, PROFINET, DeviceNet, CANopen (daisy chain RJ45, SUB-D 9, or screw terminals), and EtherCAT. Slot A also accepts digital/analog I/O extension or output relay modules. Slot B accepts 5/12 V digital encoder, analog encoder, or resolver interface modules. The drive includes 2 RJ45 ports for Ethernet IP/Modbus TCP and 1 RJ45 for Modbus serial (2-wire RS 485, RTU frame, 4.8 to 38.4 kbit/s).

Frequently asked questions

What are the key power ratings for the ATV9B0C63R4?

Motor power is 630 kW at 440 V normal duty, 500 kW at 440 V heavy duty. Line current at normal duty is 883 A; heavy duty is 704 A.

What safety functions does the ATV9B0C63R4 support?

Safe Torque Off (STO) rated SIL 3.

MPN
ATV9B0C63R4
