Schneider Electric BMENOC0301

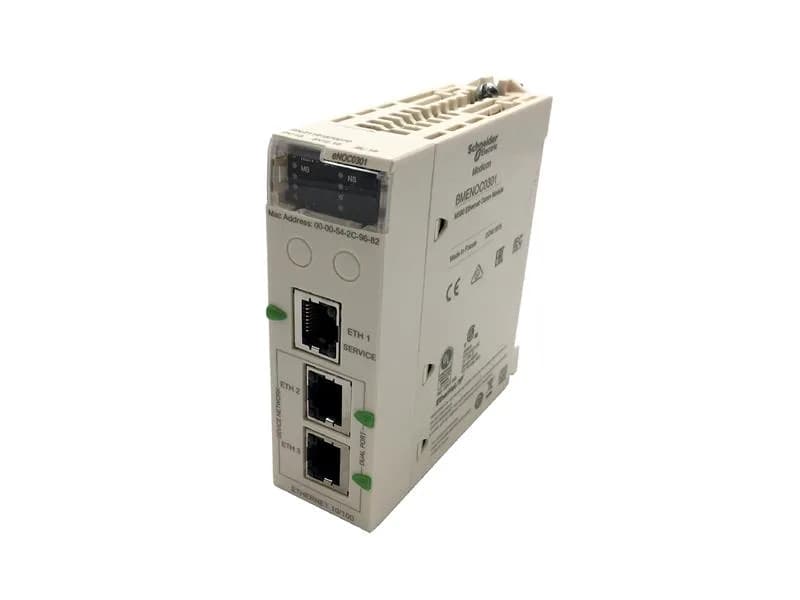

Schneider BMENOC0301 Modicon M580 3-Port Ethernet Module

MPNBMENOC0301
Active

Schneider Modicon M580 communication module BMENOC0301, 3 Ethernet RJ45 10/100 Mbit/s, IP20, CE marked.

$561.00Ref. price · indicative, final on quote
Schneider Electric BMENOC0301 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMENOC0301 key specifications
ParameterValue
Range of productModicon M580
Product or component typeCommunication module
Integrated connection type3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
Current consumption900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13)
IP degree of protectionIP20
Communication serviceBandwidth management FDR server SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging RSTP support Port mirroring Embedded multiport switch
Mounting locationMain rack
Width1.3 in (32 mm)
Height4.08 in (103.7 mm)
Length3.4 in (86 mm)
SupplyInternal power supply via rack
MarkingCE

All specifications

BMENOC0301 additional specifications
ParameterValue
CategoryUS1PC3418160
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Web serverFor commissioning, operational and maintenance
Local signalling1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (green/red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status)
Device applicationProcess and control communication module
Backplane slot locationEthernet + X-bus Slot
Slot occupied by module1
Transmission support mediumEthernet backplane
Maximum number of modules per rack4
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Modicon M580 Communication Module

The Schneider BMENOC0301 sits in the main rack of a Modicon M580 system, handling process and control communication through three Ethernet RJ45 ports at 10/100 Mbit/s. It occupies a single slot and draws 900 mA on the 3.3 V DC backplane for product versions 13 and later; earlier versions draw 1800 mA. A built-in web server supports commissioning, operational monitoring, and maintenance without additional software.

Mounting and Rack Limits

Installs in the Ethernet + X-bus slot of an M580 main rack. Up to four modules per rack. Width 1.3 in (32 mm) per slot. Communicates with the CPU over the Ethernet backplane.

Frequently asked questions

What is the closest functional second-source to the BMENOC0301?

The BMENOC0321 is the closest sister module, offering gigabit Ethernet ports and an advanced web server, but both fit the same M580 rack slot.

Can the BMENOC0301 drop into a panel designed for the BMENOC0321?

Physically yes — same slot width and height — but the BMENOC0321 requires 1800 mA at 3.3 V and supports gigabit speeds and an advanced web server, so configuration and power supply should be verified.

What compliance documentation does the BMENOC0301 carry?

CE marked, compliant with low-voltage directive 2014/35/EU and EMC directive 2014/30/EU.
