BMENOC0321 is a Modicon M580 communication module that fits into the rack backplane and draws 1800 mA from the 3.3 V DC supply. It carries three RJ45 ports at 10/100/1000 Mbps with an embedded four-port switch, plus RSTP and IP forwarding for network redundancy. The advanced web server runs FactoryCast configurable services for diagnostics and data access.

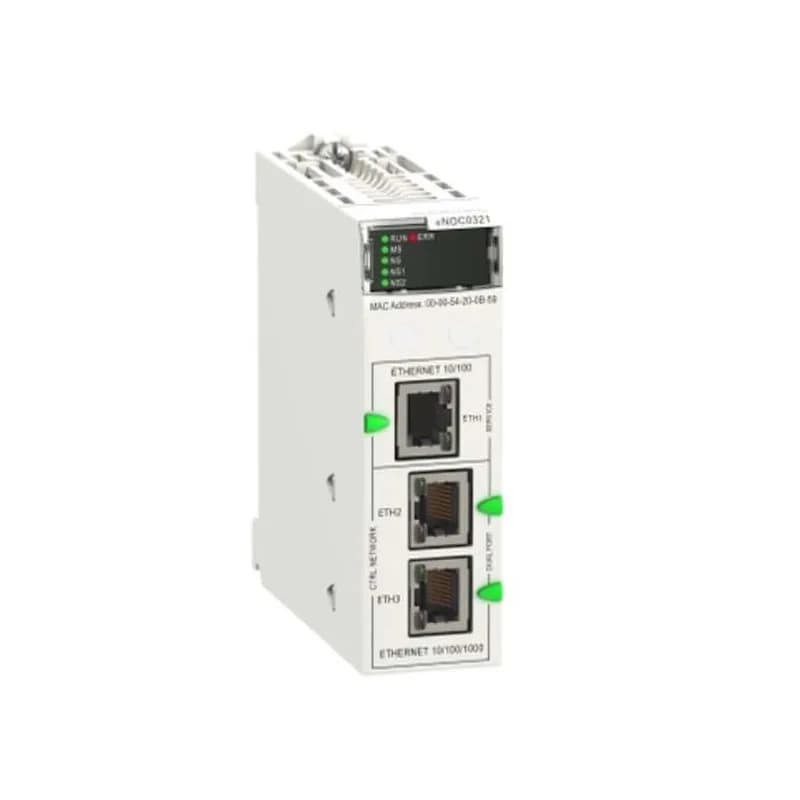

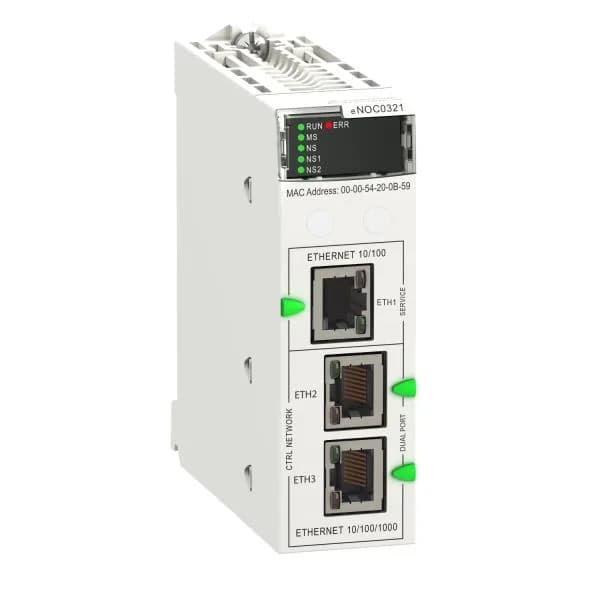

Schneider BMENOC0321 M580 Communication Module, Web Server,
MPNBMENOC0321
Active
Schneider Electric BMENOC0321 Modicon M580 communication module, internal power via rack, 3 RJ45 1 Gbps ports, advanced web server, CE marked, IP20.
$904.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Integrated connection type | 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair |
| Current consumption | 1800 mA 3.3 V DC |
| IP degree of protection | IP20 |
| Communication service | Bandwidth management FDR server Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging Embedded 4-port switch RSTP support IP forwarding |
| Supply | Internal power supply via rack |
| Marking | CE |
| Category | US1PC3418160 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Web server | Advanced |
| Memory usage | Application saving Activating the advanced web server |
| Web services | FactoryCast configurable |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (green/red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status) 1 LED (green/red) for Eth NS1 (Ethernet network status) 1 LED (green/red) for Eth NS2 (Ethernet network status) |
| Protective treatment | TC |
| Transmission support medium | Ethernet backplane |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
Product details
Frequently asked questions
How is the BMENOC0321 powered?
It draws power directly from the M580 rack backplane; no external supply required.
What certifications does BMENOC0321 carry?
CE marking is listed, and compliance with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU is declared.
