Schneider Electric BMEP582040

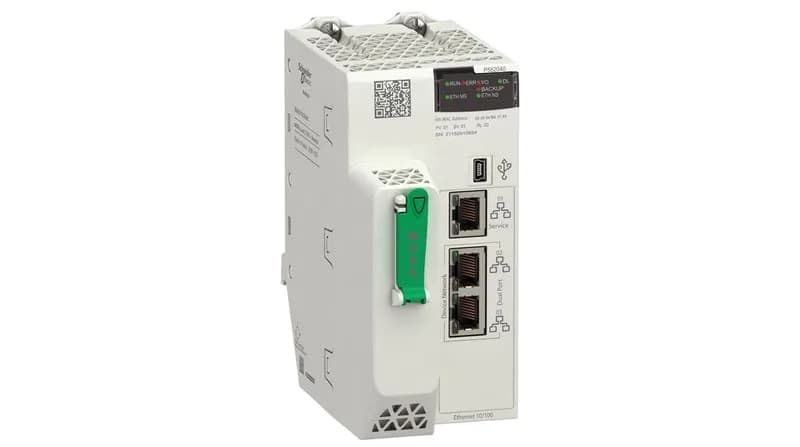

Schneider BMEP582040 M580 CPU, Process Control, 4 GB

MPNBMEP582040
Active

Schneider Electric Modicon M580 processor module, BMEP582040, CPU Level 20 with DIO & RIO scanner, 4 GB flash data storage, 8 MB program memory, IP20.

$2,236.47 – $3,546.67Ref. price · indicative, final on quote
Schneider Electric BMEP582040 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEP582040 key specifications
ParameterValue
Range of productModicon M580
Product or component typeProcessor module
Integrated connection type1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
Current consumption270 mA 24 V DC
IP degree of protectionIP20
Communication serviceDIO scanner RIO scanner
Communication module processor capacity2 Ethernet communication module 16 AS-Interface module
Shock resistance15 gn
Relative humidity5...95 % 131 °F (55 °C) without condensation
Operating altitude0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability775000 H

All specifications

BMEP582040 additional specifications
ParameterValue
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Compliance (Compliance)TAA BAA via COTS
ChecksProcess control
SupplyInternal power supply via rack
MarkingCE
CategoryUS1PC3418161
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (Green) processor in safety mode (SRUN) 1 LED (Green) processor in maintenance mode (SMOD) 1 LED (Red) I/O values overrided by user (FORCED IO)
CybersecurityAchilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communication (HTTPS) Security log
Number of racks4
Control channelsProgrammable loops
Memory descriptionExpandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 8 MB program process Integrated RAM, 768 kB data process Integrated RAM, 2 MB program safety Integrated RAM, 512 KB data safety
Application structure64 event tasks 2 auxiliary tasks 1 cyclic/periodic master task 1 periodic fast task
Application specific i (O)Serial link Counter Accurate time stamping HART Motion control SSI encoder
Environmental characteristicSafety Corrosion resistance Salt mist Dust resistant Hazardous location class I division 2
Number of remote i (O station)8 - 2 remote drop
Number of instructions per30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean
Number of distributed equipment64
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)
Number of application specific channel (local rack)72

Product details

Overview of the BMEP582040

The BMEP582040 is a Schneider Electric Modicon M580 processor module — a PAC CPU specifically tagged for process control loops. It sits in a local rack, powered internally via the backplane, drawing 270 mA at 24 VDC. This unit is a CPU Level 20 variant, meaning it handles both DIO scanner and RIO scanner services natively, so you can run distributed I/O without extra Ethernet comm modules. Memory architecture is tiered: 4 GB of expandable flash for data storage, 8 MB RAM for the program process, 768 kB for data process, plus separate safety-dedicated memory (2 MB program, 512 kB data). With 30 Kinst/ms for a mixed Boolean/arithmetic mix and 40 Kinst/ms for 100% Boolean, this CPU fits mid-size process applications — say a few hundred I/O points with HART or SSI encoder channels.

Compliance and Lifecycle Status

Standards coverage includes IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, and EMC immunity per EN/IEC 61000-6-5 (interface types 1 & 2) and EN/IEC 61850-3 for substation environments. The module also carries Achilles cybersecurity certification, IPsec, SNMP logging, and an embedded firewall — relevant for utilities needing NERC CIP alignment. For documentation traceability, the unit comes with a CE declaration covering the Low Voltage (2014/35/EU) and EMC (2014/30/EU) directives. TAA/BAA compliance via COTS means it's eligible for US federal projects without special waivers.

Integration and Mounting Notes

Form factor: IP20 processor module that mounts in a standard Modicon M580 rack. It supports up to 4 racks in the local backplane, with capacity for 72 application-specific channels in the local rack and up to 8 remote I/O stations (2 remote drops, 64 distributed devices). Each remote drop can extend via two Ethernet comm modules or 16 AS-Interface modules. Environmental envelope: operate 0–60 °C, store –40 to 85 °C, 5–95% RH non-condensing at 55 °C. Vibration resistance 3 gn, shock 15 gn. Altitude derating starts above 2000 m — usable up to 5000 m with reduced cooling. Rated for hazardous locations Class I Division 2 and salt mist / corrosion resistance. Communication ports: one Ethernet TCP/IP service port, two Ethernet TCP/IP device network ports, one USB Type Mini-B. Status LEDs cover RUN, ERR, I/O fault, download, memory card fault, Ethernet port status, safety mode (SRUN), maintenance mode (SMOD), and forced I/O override.

Frequently asked questions

What process control checks does this CPU support?

The BMEP582040 is listed under the 'Process control' check category. It is designed for programmable loop control and supports application-specific I/O including HART, SSI encoders, motion control, and accurate time stamping.

How is the BMEP582040 powered?

It receives internal power directly from the rack backplane, drawing 270 mA at 24 V DC. No external power supply module is required for the CPU itself.

What compliance/certification documentation does it carry?

It is CE marked per the Low Voltage (2014/35/EU) and EMC (2014/30/EU) directives. Listed standards include IEC 61131-2, IEC/UL/CSA 61010-2-201, IACS, EN/IEC 61000-6-5, and EN/IEC 61850-3. It also holds Achilles cybersecurity certification and is TAA/BAA compliant.
