Schneider Electric BMEXBP0400H

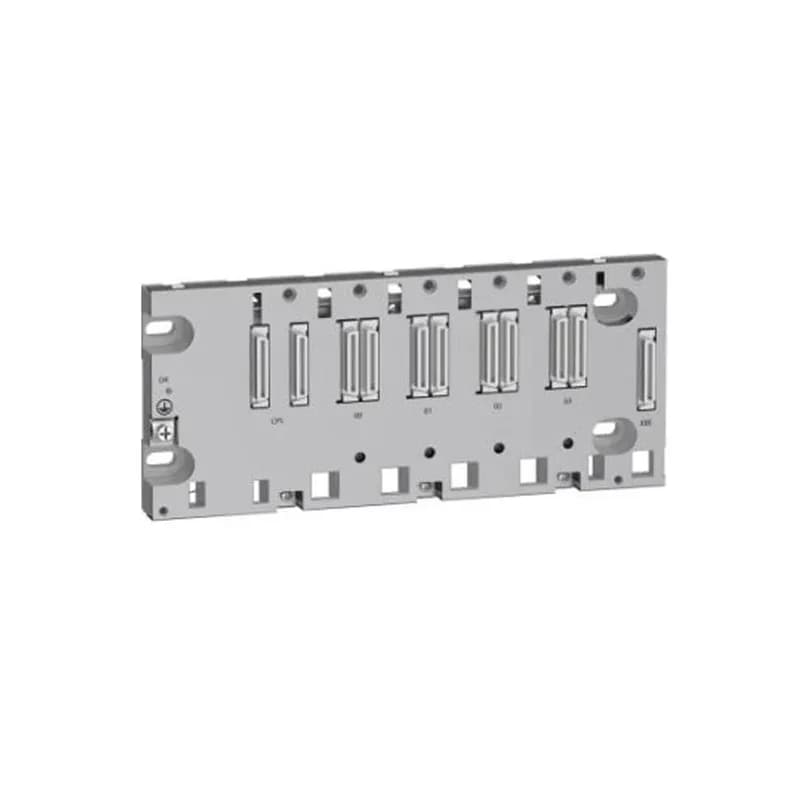

BMEXBP0400H Modicon X80 4-Slot Backplane, Conformal Coated

MPNBMEXBP0400H
Active

Schneider Modicon X80 backplane, 4 bus X + Ethernet slots, conformal coated, -25…70°C, IP20.

$273.00Ref. price · indicative, final on quote
Schneider Electric BMEXBP0400H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEXBP0400H specifications
ParameterValue
Range of productModicon X80
Accessory (separate part type)Ruggedized rack
Current consumption49 mA at 3.3 V DC 118 mA at 24 V DC
Power consumption in162 mW 3.3 V DC 2.8 W 24 V DC
IP degree of protectionIP20
Electrical connection1 connector (XBE) expansion module
Relative humidity5...95 % without condensation
MTBF reliability1588025 H
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Fixing modeBy 4 screws - diameter: 4.32...6.35 mm, mounting on panel By 4 M6 screws, mounting on plate By clips, mounting on 35 mm symmetrical DIN rail
Number of slots4 bus X + Ethernet
Protective treatmentConformal coating
Environmental characteristicGas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2
Product specific applicationFor severe environments
Ambient air temperature for operation-25...70 °C

Product details

Backplane for severe environments

The BMEXBP0400H: Four bus X slots with one Ethernet position. Current draw 49 mA at 3.3 V DC and 118 mA at 24 V DC. Power consumption 162 mW and 2.8 W respectively. MTBF 1588025 H.

Mounting and connection

Three fixing options: DIN-rail clip on 35 mm symmetrical rail, bolt-on with four M6 screws, or panel mount through four holes (4.32–6.35 mm diameter). The single expansion connector (XBE) handles daisy-chaining to additional racks. The IP20 enclosure is open-frame for panel interiors; no gland plate needed. Operational temperature spans -25 to 70 °C with 5–95% non-condensing humidity. The rack holds its full spec in that band without derating for high ambient or humidity.

Frequently asked questions

What standards does the BMEXBP0400H meet?

It complies with IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, IEC 61000-6-5, IEC 61850-3, and IEC 60079-0.

Which directives apply to this rack?

It is designed under the Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and ATEX Directive (2014/34/EU).

What compliance documentation is available for the BMEXBP0400H?

The rack holds UL, CSA, IEC, and ATEX certifications. Environmental resistance is documented per IEC 60721-3-3 classes 3C4/3S4/3B2 and ISA S71.04 Gx. RoHS and REACH compliance is standard for the Modicon X80 family.

MPN
BMEXBP0400H
