Schneider Electric BMI1002P32A

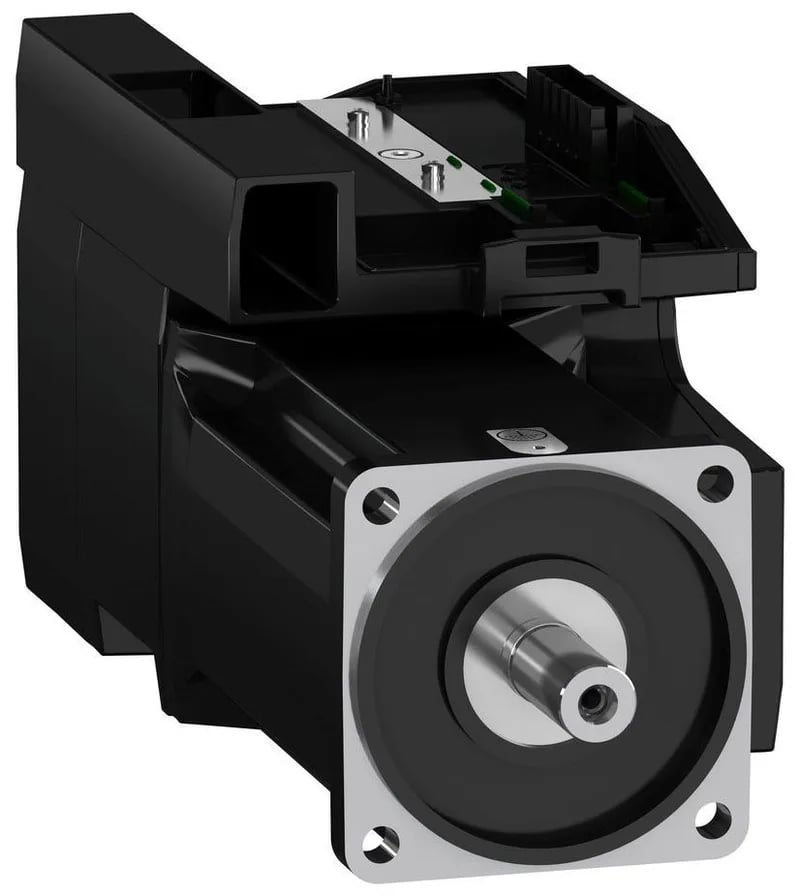

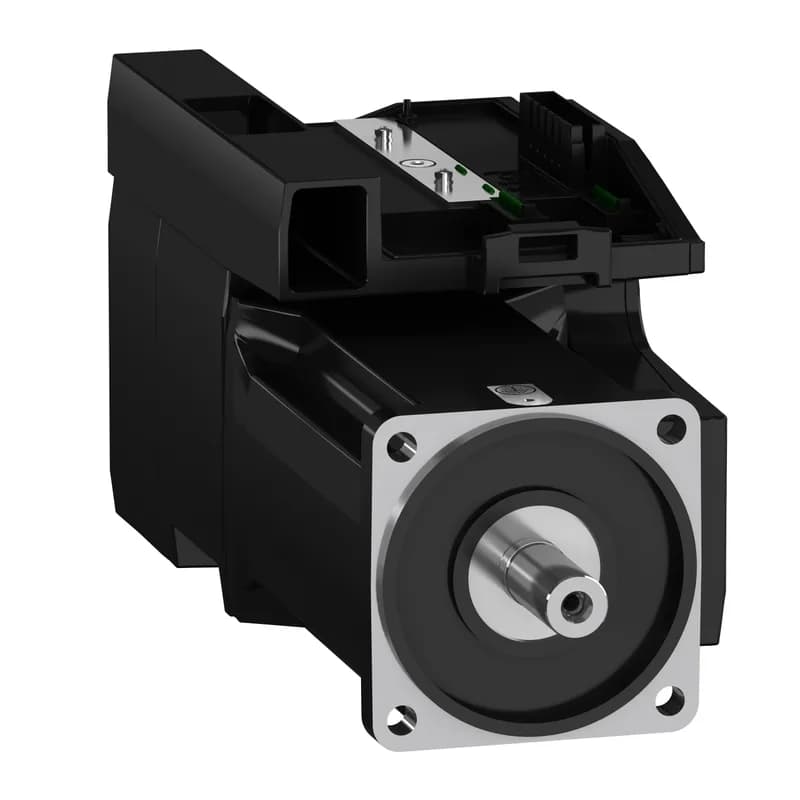

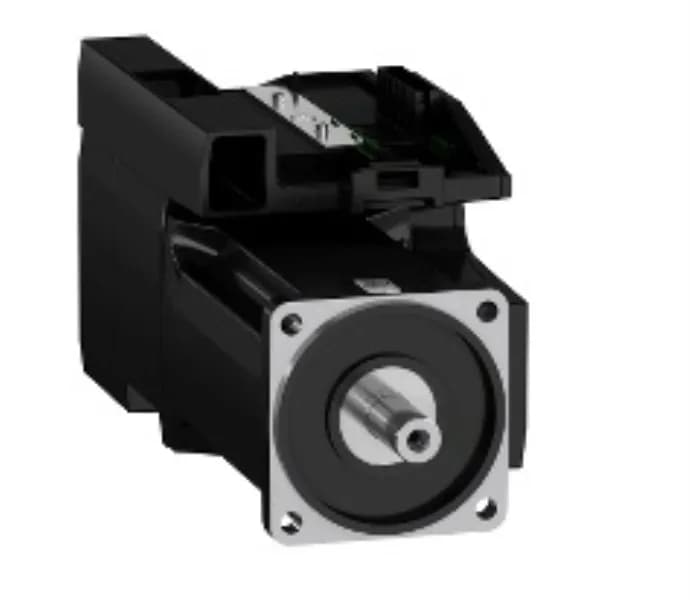

BMI1002P32A Servo Motor, 3-Phase, Hiperface, IP65

MPNBMI1002P32A
Active

BMI1002P32A, Three-phase servo motor, 1900 W at 400 V, 5.1 Nm nominal torque, IP65, with Hiperface absolute multiturn feedback.

$871.22Ref. price · indicative, final on quote
Schneider Electric BMI1002P32A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI1002P32A key specifications
ParameterValue
Feedback typeAbsolute multiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits208...480 V
Supply voltage208...480 V - 15...10 %
Maximum current irms17.5 A 208 V, three phase 17.5 A 400 V, three phase 17.5 A 480 V, three phase
Output current 3s peak12 A 400 V 3 s
Continuous stall current4 A
Continuous output current4 A 8 kHz
Nominal output power1000 W 208 V three phase 1900 W 400 V three phase 1900 W 480 V three phase
Supply frequency50/60 Hz - 5...5 %
Network frequency limits47.5...63 Hz

All specifications

BMI1002P32A additional specifications
ParameterValue
Number of motor poles10
PhasesThree phase
IP degree of protectionIP65
Mounting supportInternational standard flange
Mounting holes diameter0.4 in (9 mm)
Number of mounting holes4
Circle diameter of the mounting holes4.5 in (115 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Key width0.2 in (6 mm)
Centring collar depth0.1 in (3.5 mm)
Length10.7 in (273 mm)
CategoryUS1PC5618287
Shaft endKeyed
Second shaftWithout second shaft end
Shaft length1.6 in (40 mm)
Holding brakeWithout
Nominal speed1900 rpm 208 V three phase 3800 rpm 400 V three phase 4700 rpm 480 V three phase
Rotor inertia6.28 kg.cm²
Nominal torque45.1 lbf.in (5.1 N.m) 400 V three phase 47.8 lbf.in (5.4 N.m) 208 V three phase 36.3 lbf.in (4.1 N.m) 480 V three phase
Shaft diameter0.7 in (19 mm)
Torque constant1.28 N.m/A 68 °F (20 °C)
Back emf constant84.52 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size3.9 in (100 mm)
Peak stall torque123.9 lbf.in (14 N.m) 208 V three phase 123.9 lbf.in (14 N.m) 400 V three phase 123.9 lbf.in (14 N.m) 480 V three phase
Stator inductance9.79 mH 68 °F (20 °C)
Stator resistance2.347 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks2
Continuous stall torque53.1 lbf.in (6 N.m) 208...480 V three phase
Maximum radial force fr990 N 1000 rpm 790 N 2000 rpm 690 N 3000 rpm 620 N 4000 rpm 580 N 5000 rpm
Centring collar diameter3.7 in (95 mm)
Maximum mechanical speed6000 rpm
Speed feedback resolution131072 points/turn x 4096 turns
Distance shaft shoulder-flange0.1 in (3.5 mm)
Stator electrical time constant4.17 ms 68 °F (20 °C)

Product details

The BMI1002P32A is a three-phase servo motor with an integrated EMC filter and IP65 protection. It uses an absolute multiturn SinCos Hiperface feedback system, so it holds position even after power loss — no homing cycle on restart. Its nominal torque is 5.1 Nm at 400 V, with a peak stall torque of 14 Nm. Cooling is natural convection, so forced air isn't needed; just make sure there's airflow around the 100 mm flange.

Mounts on a standard 100 mm flange (centring collar 95 mm) with four 9 mm bolts. Shaft is 19 mm diameter, keyed with a 6 mm keyway, 40 mm long. Axial force limit is 0.2 x Fr, so keep any belt tension within that. Electrical connection is via a PCB connector — no cable glands, just a clean plug. Supply voltage covers 208 to 480 V three-phase; just size your drive accordingly.

Frequently asked questions

What is the phase configuration of the BMI1002P32A?

It is a three-phase servo motor designed for 208–480 V AC three-phase supply.

What is the length of the BMI1002P32A?

The body length is 10.7 inches (273 mm).
