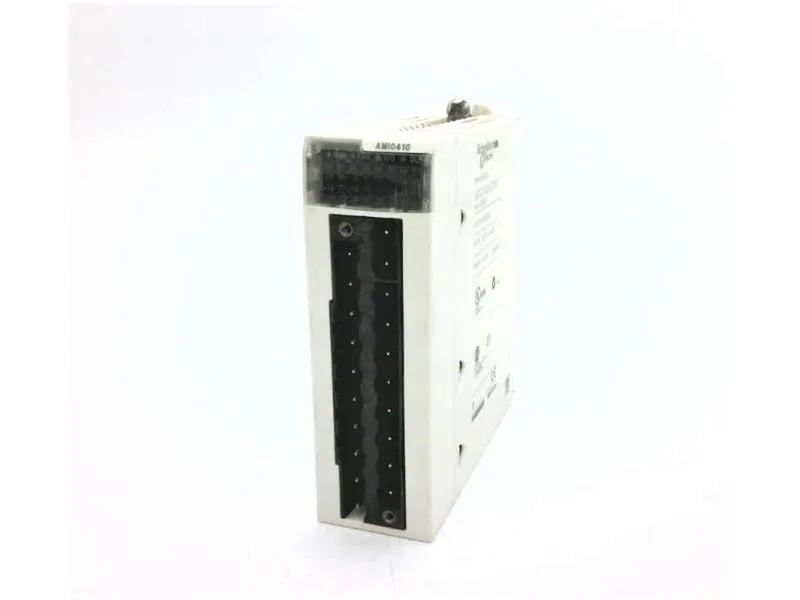

Schneider BMXAMI0410 Modicon X80 analog input module, 4 ch

MPNBMXAMI0410
Active

Schneider Electric Modicon X80 BMXAMI0410 analog input module, 4 channels, 16-bit resolution, multi-range voltage/current, DIN rail mount, IP20, 30 gn shock.

$237.49 – $491.10Ref. price · indicative, final on quote
Schneider Electric BMXAMI0410 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXAMI0410 key specifications
ParameterValue
Type of filterFirst order digital filtering
Range of productModicon X80
Analogue input typeCurrent +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V
Product or component typeAnalog input module
Isolation voltage300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus
Current consumption150 mA at 3.3 V DC 45 mA at 24 V DC
Power consumption in0.82 W 24 V DC typical 1.30 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum
IP degree of protectionIP20
Electrical connection20 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor

All specifications

BMXAMI0410 additional specifications
ParameterValue
Vibration resistance3 gn
MTBF reliability1200000 H
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Input levelHigh level
RecalibrationInternal
Input impedance10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
Measurement error0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale +/- 5 V 25 °C 0.075 % of full scale 0...10 V 25 °C 0.075 % of full scale 0...5 V 25 °C 0.075 % of full scale 1...5 V 25 °C 0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0...20 mA 25 °C 0.15 % of full scale 4...20 mA 25 °C
Temperature drift15 ppm/°C +/- 10 V 15 ppm/°C +/- 5 V 15 ppm/°C 0...10 V 15 ppm/°C 0...5 V 15 ppm/°C 1...5 V 30 ppm/°C +/- 20 mA 30 ppm/°C 0...20 mA 30 ppm/°C 4...20 mA
Digital value format- 32768 to + 32767 in maximum user scale +/- 10000 by default
Fast read cycle time1 ms + 1 ms x number of channels used
Protective treatmentStandard version
Analogue input number4
Common mode rejection90 dB
Measurement resolution0.35 mV +/- 10 V 0.35 mV +/- 5 V 0.35 mV 0...10 V 0.35 mV 0...5 V 0.35 mV 1...5 V 0.92 µA +/- 20 mA 0.92 µA 0...20 mA 0.92 µA 4...20 mA
Nominal read cycle time5 ms for 4 channels
Maximum conversion value+/- 11.4 V +/- 10 V +/- 11.4 V +/- 5 V +/- 11.4 V 0...10 V +/- 11.4 V 0...5 V +/- 11.4 V 1...5 V 0...30 mA +/- 20 mA 0...30 mA 0...20 mA 0...30 mA 4...20 mA
Analog (digital conversion)24 bits
Analogue input resolution16 bits
Isolation between channelsIsolated
Permitted overload on inputs+/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 90 mA +/- 20 mA +/- 90 mA 0...20 mA +/- 90 mA 4...20 mA
Minimum crosstalk attenuation80 dB
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C
Precision of internal conversion resistor0.1 % - 15 ppm/°C

Product details

Overview

The BMXAMI0410 is a 4-channel analog input module in the Schneider Modicon X80 range, accepting voltage (±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V) or current (±20 mA, 0–20 mA, 4–20 mA) signals with 16-bit resolution. Rated for 30 gn shock and sealed to IP20, it carries IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201 certifications, plus California Proposition 65 and EU Low Voltage/EMC directives.

Selection and accuracy

Measurement error is 0.075 % of full scale for voltage ranges and 0.15 % for current ranges at 25 °C, with temperature drift of 15 ppm/°C (voltage) or 30 ppm/°C (current). The first-order digital filter and 90 dB common-mode rejection suit noisy industrial environments. The module draws 0.82 W from the backplane and connects via a 20-way terminal block. The fast read cycle time is 1 ms + 1 ms per channel used.

The BMXAMI0410 is an active Modicon X80 catalogue module; lead time is confirmed per RFQ. Compliance documentation includes the listed IEC/UL/CSA standards and EU directives.
