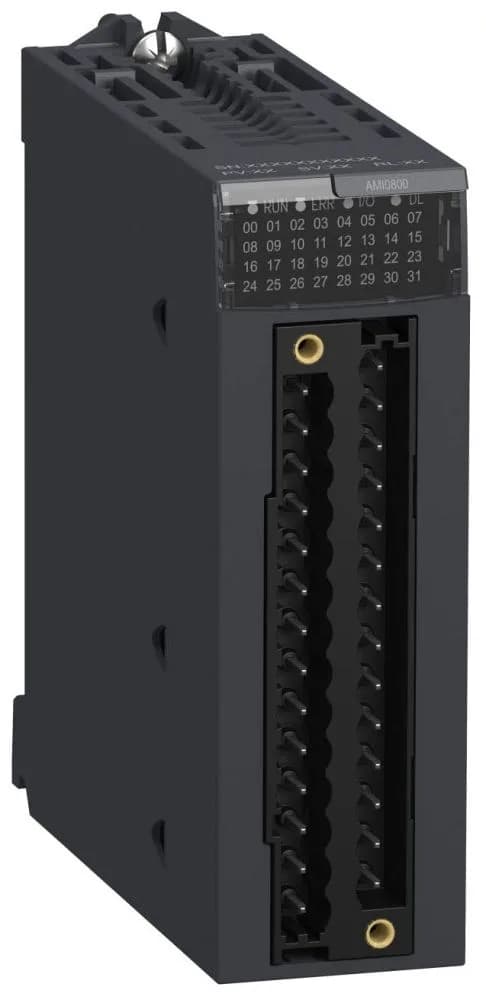

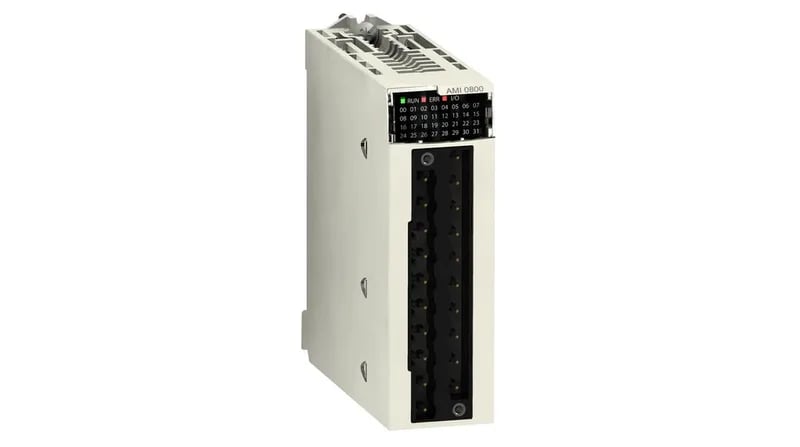

Schneider Electric Modicon X80 BMXAMI0800 analog input module, 8 inputs, 16-bit conversion, fast read cycle time, current/voltage ranges, 1400 V DC isolation, active production.
| Parameter | Value |
|---|---|
| Type of filter | First order digital filtering |
| Range of product | Modicon X80 |
| Analogue input type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Product or component type | Analog input module |
| Isolation voltage | 1400 V DC between channels and ground 1400 V DC between channels and bus |
| Current consumption | 150 mA at 3.3 V DC 41 mA at 24 V DC |
| Power consumption in | 0.90 W 24 V DC typical 1.10 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| IP degree of protection | IP20 |
| Electrical connection | 28 ways 1 connector |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Parameter | Value |
|---|---|
| Vibration resistance | 3 gn |
| MTBF reliability | 1700000 H |
| Standards | IEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Input level | High level |
| Recalibration | Factory calibrated |
| Input impedance | 10 MOhm in voltage mode 250 Ohm in current mode |
| Measurement error | 0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0...20 mA 25 °C 0.15 % of full scale 4...20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0...10 V 25 °C 0.075 % of full scale 0...5 V 25 °C 0.075 % of full scale 1...5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift | 30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0...10 V 30 ppm/°C 0...5 V 30 ppm/°C 1...5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0...20 mA 50 ppm/°C 4...20 mA |
| Digital value format | - 32768 to + 32767 in maximum user scale +/- 10000 by default |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Protective treatment | Standard version |
| Analogue input number | 8 |
| Common mode rejection | 100 dB |
| Measurement resolution | 0.36 mV +/- 10 V 0.36 mV 0...10 V 0.36 mV 0...5 V 0.36 mV 1...5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0...20 mA 1.4 µA 4...20 mA |
| Nominal read cycle time | 9 ms for 8 channels |
| Maximum conversion value | +/- 11.4 V +/- 10 V +/- 11.4 V 0...10 V +/- 11.4 V 0...5 V +/- 11.4 V 1...5 V 0...30 mA +/- 20 mA 0...30 mA 0...20 mA 0...30 mA 4...20 mA 0...30 mA +/- 5 V |
| Analog (digital conversion) | 16 bits |
| Analogue input resolution | 15 bits + sign |
| Isolation between channels | Non isolated |
| Permitted overload on inputs | +/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
The BMXAMI0800: The module draws 150 mA at 3.3 V DC and 41 mA at 24 V DC, with a typical power consumption of 0.90 W at 24 V DC. First-order digital filtering is built in. Temperature drift is 30 ppm/°C on voltage ranges and 50 ppm/°C on current ranges. Common-mode rejection is 100 dB; minimum crosstalk attenuation is 80 dB. MTBF is 1,700,000 hours. The IP20-rated unit uses a single 28-way connector and fits directly into a Modicon X80 rack slot.
It complies with IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, Low Voltage Directive 2014/35/EU, and EMC Directive 2014/30/EU.
8 inputs configurable for ±20 mA, 0-20 mA, 4-20 mA, ±10 V, 0-10 V, 0-5 V, 1-5 V, ±5 V. Fast read cycle 1 ms + 1 ms per channel. 16-bit conversion (15 bits + sign). Measurement error 0.15% FS (current) or 0.075% FS (voltage) at 25 °C. Isolation 1400 V DC.
