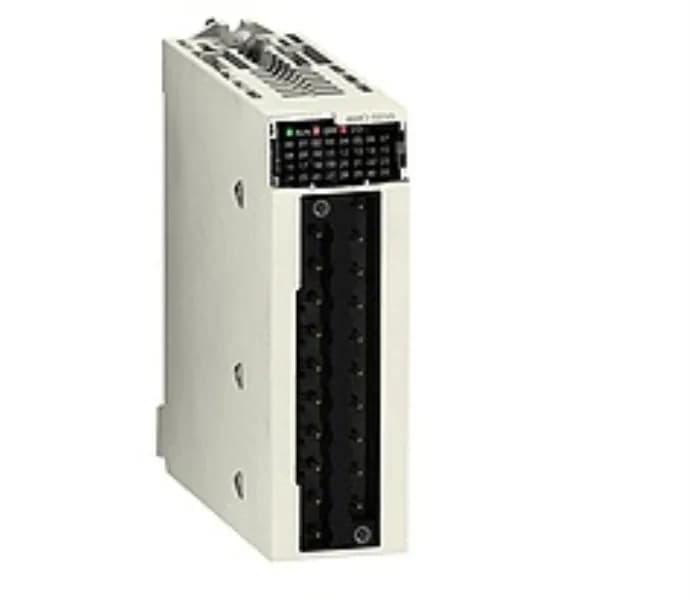

Schneider Electric BMXAMM0600

Schneider BMXAMM0600 Modicon X80 Mixed Analog I/O, 4In/2Out

MPNBMXAMM0600
Active

Schneider Electric Modicon X80 BMXAMM0600 mixed analog I/O module, 4 inputs / 2 outputs, 12-14 bit input resolution, 1400 VDC isolation, active production.

$314.96 – $760.18Ref. price · indicative, final on quote
Schneider Electric BMXAMM0600 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXAMM0600 key specifications
ParameterValue
Type of filterFirst order digital filtering by firmware
Range of productModicon X80
Analogue input typeCurrent 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V
Analogue output typeCurrent: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V
Product or component typeMixed analog I/O module
Isolation voltage1400 V DC between channels and ground 1400 V DC between channels and bus 750 V DC between group of I/O channels
Current consumption240 mA at 3.3 V DC
Power consumption in2.6 W 24 V DC typical 3.2 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum
IP degree of protectionIP20
Electrical connection20 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation

All specifications

BMXAMM0600 additional specifications
ParameterValue
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability1400000 H
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Input levelHigh level
Output levelHigh level
Fallback modePredefined Configurable
RecalibrationFactory calibrated on outputs Internal on inputs
Conversion time<= 2 ms
Input impedance250 Ohm
Measurement error0.25 % of full scale 0...20 mA 25 °C output 0.25 % of full scale 4...20 mA 25 °C output 0.25 % of full scale +/- 10 V 25 °C output 0.25 % of full scale +/- 10 V 25 °C input 0.25 % of full scale 0...10 V 25 °C input 0.25 % of full scale 0...5 V 25 °C input 0.25 % of full scale 1...5 V 25 °C input 0.35 % of full scale 0...20 mA 25 °C input 0.35 % of full scale 4...20 mA 25 °C
Temperature drift100 ppm/°C +/- 10 V output 100 ppm/°C 0...20 mA output 100 ppm/°C 4...20 mA output 30 ppm/°C +/- 10 V input 30 ppm/°C 0...10 V input 30 ppm/°C 0...5 V input 30 ppm/°C 1...5 V input 50 ppm/°C 0...20 mA input 50 ppm/°C 4...20 mA input
Fast read cycle time1 ms + 1 ms x number of channels used
Protective treatmentStandard version
Analogue input number4
Common mode rejection80 dB
Analogue output number2
Nominal read cycle time5 ms for 4 channels
Maximum conversion value+/- 11.25 V +/- 10 V output +/- 11.25 V +/- 10 V input 0...30 mA 0...20 mA input 0...30 mA 4...20 mA input +/- 11.25 V 0...10 V input +/- 11.25 V 0...5 V input +/- 11.25 V 1...5 V input 0...24 mA 0...20 mA output 0...24 mA 4...20 mA output
Analogue input resolution12 bits 0...20 mA 12 bits 0...5 V 12 bits 1...5 V 12 bits 4...20 mA 13 bits 0...10 V 14 bits +/- 10 V
Analogue output resolution11 bits, 0...20 mA 11 bits, 4...20 mA 12 bits, +/- 10 V
Isolation between channelsNon isolated
Permitted overload on inputs+/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V
Minimum crosstalk attenuation70 dB
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C
Precision of internal conversion resistor0.1 % - 15 ppm/°C

Product details

The BMXAMM0600 provides 4 analog inputs and 2 analog outputs, mixing sensing and control in one slot.

Listed as current production, so no end-of-life clock ticking. The module carries IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201 — covers both the panel safety standard and the programmable-controller base standard. Also complies with the low-voltage directive 2014/35/EU and the EMC directive 2014/30/EU. MTBF is 1,400,000 hours, which for a line-down spare decision is comfortable headroom.

Integration notes

Draws 240 mA from the 3.3 V backplane bus, plus up to 3.2 W from 24 V typical. Analog connection via a single 20-way spring-cage connector. Input impedance 250 ohms. Conversion time under 2 ms for the whole scan; fast read cycle at 1 ms + 1 ms per channel. First-order digital filtering is baked into the firmware. Isolation between channels and ground or bus is 1400 VDC — enough to keep noise from a motor drive out of the measurement path. IP20 enclosure, so it lives in a cabinet, not the field.

Frequently asked questions

What safety and performance standards does the BMXAMM0600 meet?

The module is certified to IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201, and it complies with the EU low-voltage directive (2014/35/EU) and EMC directive (2014/30/EU).

Will the BMXAMM0600 drop into a panel that was wired for a BMXAMO0210 without rewiring?

The BMXAMM0600 is a mixed 4-input / 2-output module, while the BMXAMO0210 is output-only (two channels). Both share the same X80 rack footprint and bus connector, so the module physically fits. However, the analog output terminal wiring may be compatible, but you will need to add wiring for the four analog inputs if your application uses them. The I/O mapping in the control program also needs updating.
