Schneider Electric BMXAMO0210

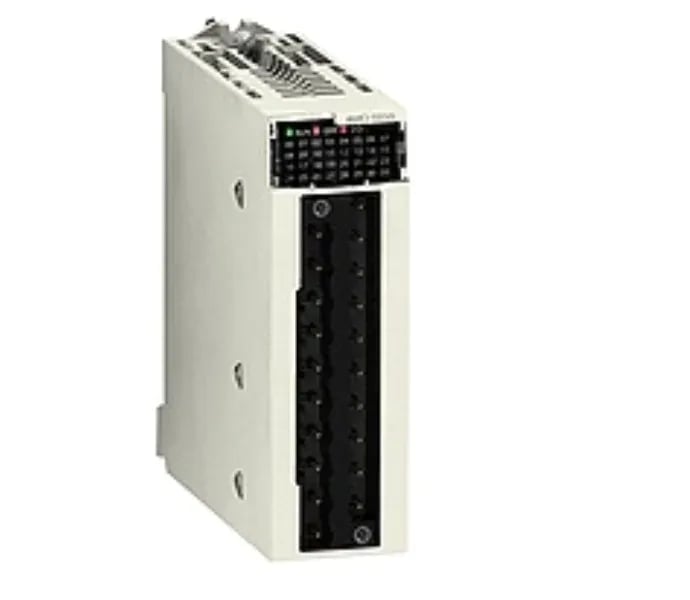

Schneider BMXAMO0210 Modicon X80 Analog Output, 2 Ch

MPNBMXAMO0210
Active

Schneider BMXAMO0210, Modicon X80 analog output module, 2 channels, current or voltage outputs, powered via rack.

$205.74 – $528.04Ref. price · indicative, final on quote
Schneider Electric BMXAMO0210 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXAMO0210 key specifications
ParameterValue
Detection typeOpen circuit 0...20 mA Open circuit 4...20 mA Short circuit +/- 10 V
Range of productModicon X80
Analogue output typeCurrent: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V
Product or component typeAnalog output module
Isolation voltage1400 V DC between channels and ground 1400 V DC between channels and bus 750 V DC between channels
Current consumption150 mA at 3.3 V DC 110 mA at 24 V DC
Power consumption in2.1 W 24 V DC typical 2.8 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum
IP degree of protectionIP20
Electrical connection20 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor

All specifications

BMXAMO0210 additional specifications
ParameterValue
Vibration resistance3 gn
MTBF reliability1300000 H
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
SupplyInternal power supply via rack
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Output levelHigh level
Fallback modePredefined Configurable
RecalibrationFactory calibrated
Conversion time<= 1 ms
Measurement error0.1 % of full scale 25 °C
Temperature drift30 ppm/°C
Load impedance ohmic>= 1000 Ohm +/- 10 V
Protective treatmentStandard version
Common mode rejection100 dB
Analogue output number2
Maximum conversion value+/- 11.25 V +/- 10 V 0...24 mA 0...20 mA 0...24 mA 4...20 mA
Analogue output resolution15 bits + sign
Isolation between channelsIsolated
Minimum crosstalk attenuation90 dB
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

The Schneider BMXAMO0210 is a 2-channel analog output module in the Modicon X80 series, providing isolated outputs configurable for 0..20 mA, 4..20 mA, or ±10 V. Power is drawn from the rack backplane.

The module fits a standard Modicon X80 rack slot. Shock resistance is 30 gn, vibration 3 gn. Full rating to 2000 m altitude, derated to 5000 m.

Standards and certifications

Designed to IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No. 61010-2-201. Meets Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

Frequently asked questions

What supply voltage does the BMXAMO0210 require?

It is powered internally via the rack backplane, drawing 150 mA at 3.3 V DC and 110 mA at 24 V DC.

What output types does the BMXAMO0210 support?

It supports 0..20 mA, 4..20 mA current outputs and ±10 V voltage output.

What standards and directives does the BMXAMO0210 comply with?

It complies with IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No. 61010-2-201, Low Voltage Directive 2014/35/EU, and EMC Directive 2014/30/EU.

MPN
BMXAMO0210
