Schneider Electric BMXAMO0410H

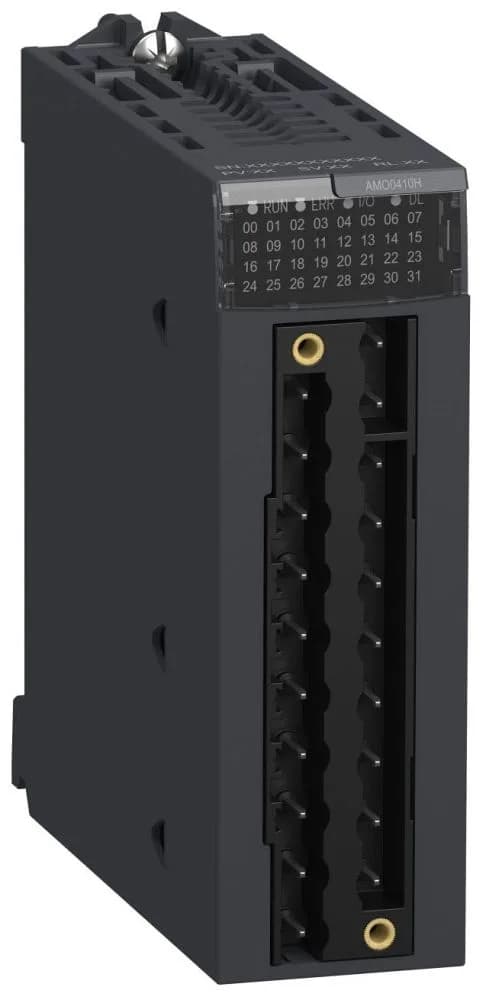

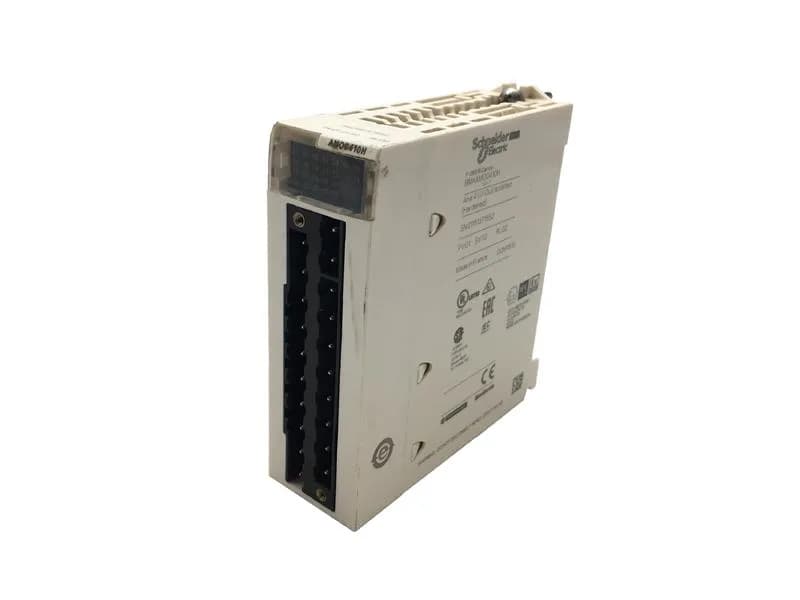

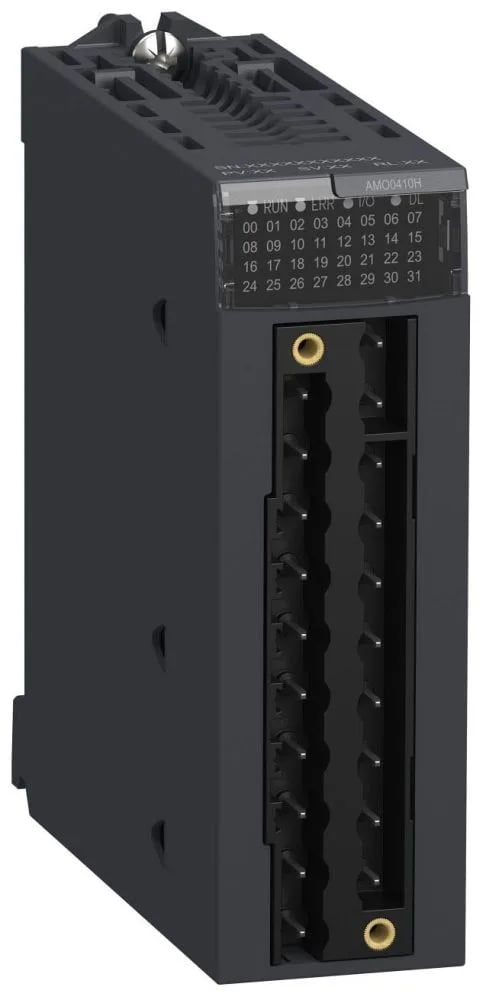

Schneider BMXAMO0410H Analog Output Module, Isolated, 4 Ch

MPNBMXAMO0410H
Active

Schneider Electric Modicon X80 analog output module, BMXAMO0410H, 4-channel isolated, 15 bits + sign, 0-20 mA / 4-20 mA / +/-10 V, conformal coating, severe environment rated.

$405.13 – $927.61Ref. price · indicative, final on quote
Schneider Electric BMXAMO0410H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXAMO0410H key specifications
ParameterValue
Range of productModicon X80
Analogue output typeCurrent: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V
Product or component typeAnalog output module
Current consumption150 mA at 3.3 V DC 140 mA at 24 V DC
Power consumption in3 W 24 V DC typical 3.6 W 24 V DC maximum 0.45 W 3.3 V DC typical 0.51 W 3.3 V DC maximum
IP degree of protectionIP20
Electrical connection20 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability1000000 H

All specifications

BMXAMO0410H additional specifications
ParameterValue
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
SupplyInternal power supply via rack
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Output levelHigh level
Fallback modeConfigurable Predefined
Conversion time<= 1 ms
Measurement error0.1 % of full scale 25 °C = 1000 Ohm +/- 10 V <= 500 Ohm 4...20 mA
Protective treatmentConformal coating
Analogue output number4
Maximum conversion value0...21 mA 0...20 mA 0...21 mA 4...20 mA +/- 10.5 V +/- 10 V
Analogue output resolution15 bits + sign
Isolation between channelsIsolated
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location
Product specific applicationFor severe environments
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

BMXAMO0410H is a Modicon X80 analog output module with 4 isolated channels, configurable for 0–20 mA, 4–20 mA, or ±10 V outputs. Conformal coating and gas resistant class Gx, dust resistant class 3S4, salt resistant level 2 make it the one to specify when the environment is aggressive.

Cross-check with the standard variant

The standard BMXAMO0410 shares the same channel count, resolution, isolation, and 20‑way connector, but lacks the conformal coating and severe‑environment ratings. If your panel lives in a conditioned room, the standard module may be a faster and simpler sourcing path. If the spec calls for Gx, 3S4, or mold resistance, this H version is the one that fits the BOM.

Production status and compliance

Lifecycle status is current and Active. Module carries IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201.

Rack integration

Powered directly from the rack: 150 mA at 3.3 V DC, 140 mA at 24 V DC. A single 20‑way connector carries all four channels. IP20 enclosure with conformal coating protects against condensation, corrosive gasses, and dust ingress.
