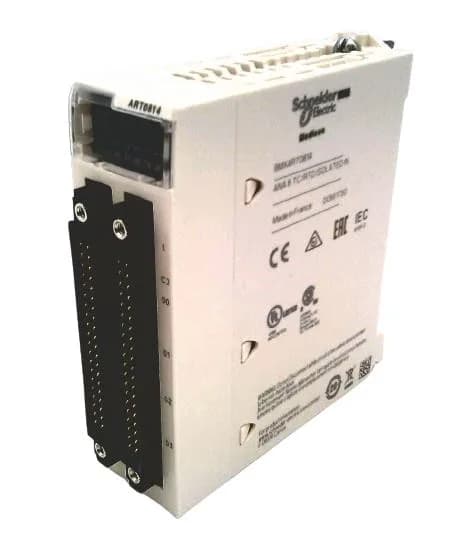

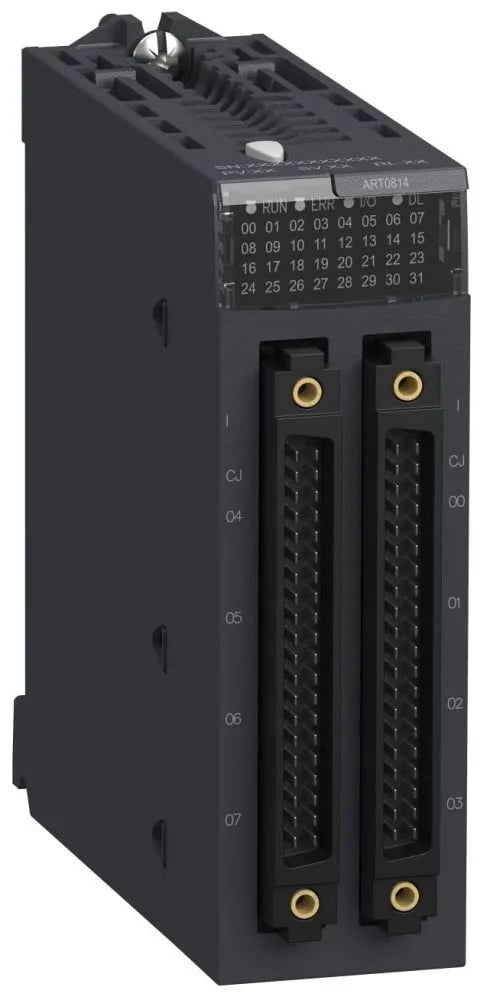

Schneider Electric BMXART0814

Schneider BMXART0814 Modicon X80 Analog Input Module, 8 chan

MPNBMXART0814
Obsolete

Schneider Electric Modicon X80 analog input module, BMXART0814, 8 channels, RTD/thermocouple/mV/V, sigma-delta 16-bit, isolated channels.

$560.00 – $577.85Ref. price · indicative, final on quote
Schneider Electric BMXART0814 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

BMXART0814 key specifications
ParameterValue
Detection typeOpen circuit Cu 10 Open circuit Ni 100 Open circuit Ni 1000 Open circuit Pt 100 Open circuit Pt 1000 Open circuit thermocouple B Open circuit thermocouple E Open circuit thermocouple J Open circuit thermocouple K Open circuit thermocouple L Open circuit thermocouple N Open circuit thermocouple R Open circuit thermocouple S Open circuit thermocouple T Open circuit thermocouple U
Type of filterFirst order digital filtering
Range of productModicon X80
Analogue input typeVoltage +/- 1.28 V Voltage +/- 160 mV Voltage +/- 320 mV Voltage +/- 40 mV Voltage +/- 640 mV Voltage +/- 80 mV Resistor 400 Ohm 2 wires Resistor 400 Ohm 3 wires Resistor 400 Ohm 4 wires Resistor 4000 Ohm 2 wires Resistor 4000 Ohm 3 wires Resistor 4000 Ohm 4 wires Temperature probe -100...+260 °C Cu 10 Temperature probe -100...+450 °C Pt 100 conforming to UL/JIS Temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS Temperature probe -200...+850 °C Pt 100 conforming to IEC Temperature probe -200...+850 °C Pt 1000 conforming to IEC Temperature probe -60...+180 °C Ni 100 Temperature probe -60...+180 °C Ni 1000 Thermocouple +130...+1820 °C thermocouple B Thermocouple +270...+1300 °C thermocouple N Thermocouple -200...+600 °C thermocouple U Thermocouple -200...+760 °C thermocouple J Thermocouple -200...+900 °C thermocouple L Thermocouple -270...+1000 °C thermocouple E Thermocouple -270...+1370 °C thermocouple K Thermocouple -270...+400 °C thermocouple T Thermocouple -50...+1769 °C thermocouple R Thermocouple -50...+1769 °C thermocouple S
Product or component typeAnalog input module
Current consumption150 mA at 3.3 V DC 50 mA at 24 V DC
IP degree of protectionIP20
Electrical connection40 ways 2 connectors
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn

All specifications

BMXART0814 additional specifications
ParameterValue
MTBF reliability900000 H
StandardsIEC 61131-2 IEC 61000-6-4 IEC 61000-6-2 EN 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Input levelLow level
RecalibrationInternal
Measurement error+/- 0.7 °C Ni 1000 25 °C +/- 2 °C Pt 100 0...60 °C +/- 2 °C Pt 1000 0...60 °C +/- 2.1 °C Ni 100 25 °C +/- 2.1 °C Pt 100 25 °C +/- 2.1 °C Pt 1000 25 °C +/- 2.7 °C thermocouple U 25 °C +/- 2.8 °C thermocouple J 25 °C +/- 3 °C Ni 100 0...60 °C +/- 3 °C thermocouple L 25 °C +/- 3.2 °C thermocouple R 25 °C +/- 3.2 °C thermocouple S 25 °C +/- 3.5 °C thermocouple B 25 °C +/- 3.7 °C thermocouple E 25 °C +/- 3.7 °C thermocouple K 25 °C +/- 3.7 °C thermocouple N 25 °C +/- 3.7 °C thermocouple T 25 °C +/- 4 °C Cu 10 0...60 °C +/- 4 °C Cu 10 25 °C +/- 4.5 °C thermocouple J 0...60 °C +/- 4.5 °C thermocouple L 0...60 °C +/- 4.5 °C thermocouple R 0...60 °C +/- 4.5 °C thermocouple S 0...60 °C +/- 4.5 °C thermocouple U 0...60 °C +/- 5 °C thermocouple B 0...60 °C +/- 5 °C thermocouple E 0...60 °C +/- 5 °C thermocouple K 0...60 °C +/- 5 °C thermocouple N 0...60 °C +/- 5 °C thermocouple T 0...60 °C 0.05 % of full scale +/- 1.28 V 25 °C 0.05 % of full scale +/- 160 mV 25 °C 0.05 % of full scale +/- 320 mV 25 °C 0.05 % of full scale +/- 40 mV 25 °C 0.05 % of full scale +/- 640 mV 25 °C 0.05 % of full scale +/- 80 mV 25 °C 0.12 % of full scale 400 Ohm 25 °C 0.12 % of full scale 4000 Ohm 25 °C 1.3 °C Ni 1000 0...60 °C
Temperature drift25 ppm/°C 400 Ohm 25 ppm/°C 4000 Ohm 25 ppm/°C Ni 1000 25 ppm/°C thermocouple B 25 ppm/°C thermocouple E 25 ppm/°C thermocouple J 25 ppm/°C thermocouple K 25 ppm/°C thermocouple L 25 ppm/°C thermocouple N 25 ppm/°C thermocouple R 25 ppm/°C thermocouple S 25 ppm/°C thermocouple T 25 ppm/°C thermocouple U 30 ppm/°C +/- 1.28 V 30 ppm/°C +/- 160 mV 30 ppm/°C +/- 320 mV 30 ppm/°C +/- 40 mV 30 ppm/°C +/- 640 mV 30 ppm/°C +/- 80 mV 30 ppm/°C Cu 10 30 ppm/°C Ni 100 30 ppm/°C Pt 100 30 ppm/°C Pt 1000
Protective treatmentStandard version
Analogue input number8
Common mode rejection120 dB 50/60 Hz
Measurement resolution0.1 °C Cu 10 0.1 °C Ni 100 0.1 °C Ni 1000 0.1 °C Pt 100 0.1 °C Pt 1000 0.1 °C thermocouple B 0.1 °C thermocouple E 0.1 °C thermocouple J 0.1 °C thermocouple K 0.1 °C thermocouple L 0.1 °C thermocouple N 0.1 °C thermocouple R 0.1 °C thermocouple S 0.1 °C thermocouple T 0.1 °C thermocouple U 1280/2exp14 mV +/- 1.28 V 160/2exp14 mV +/- 160 mV 320/2exp14 mV +/- 320 mV 40/2exp14 mV +/- 40 mV 12.5 mOhm 400 Ohm 125 mOhm 4000 Ohm 640/2exp14 mV +/- 640 mV 80/2exp14 mV +/- 80 mV
Nominal read cycle time400 ms with temperature probe 200 ms with thermocouple
Maximum conversion value+/- 100 % 400 Ohm +/- 100 % 4000 Ohm +/- 102.5 % +/- 1.28 V +/- 102.5 % +/- 160 mV +/- 102.5 % +/- 320 mV +/- 102.5 % +/- 40 mV +/- 102.5 % +/- 640 mV +/- 102.5 % +/- 80 mV
Analog (digital conversion)Sigma delta 16 bits
Analogue input resolution15 bits + sign
Maximum wiring resistance20 Ohm 2 wires Cu 10 20 Ohm 2 wires Ni 100 20 Ohm 2 wires Pt 100 20 Ohm 3 wires Cu 10 20 Ohm 3 wires Ni 100 20 Ohm 3 wires Pt 100 200 Ohm 2 wires Ni 1000 200 Ohm 2 wires Pt 1000 200 Ohm 3 wires Ni 1000 200 Ohm 3 wires Pt 1000 50 Ohm 4 wires Cu 10 50 Ohm 4 wires Ni 100 50 Ohm 4 wires Pt 100 500 Ohm 4 wires Ni 1000 500 Ohm 4 wires Pt 1000
Cold junction compensationExternal by Pt100 probe
Isolation between channelsIsolated
Differential mode rejection60 dB 50/60 Hz
Environmental characteristic3C3 conforming to IEC 60721-3-3 3C4 conforming to IEC 60721-3-3
Permitted overload on inputs+/- 7.5 V +/- 1.28 V +/- 7.5 V +/- 160 mV +/- 7.5 V +/- 320 mV +/- 7.5 V +/- 40 mV +/- 7.5 V +/- 640 mV +/- 7.5 V +/- 80 mV
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Integration notes

The BMXART0814 is an 8-channel analog input module that sits in a Modicon X80 (M340) rack. It accepts thermocouples (B, E, J, K, L, N, R, S, T, U), RTDs (Pt100, Pt1000, Ni100, Ni1000, Cu10), and voltage inputs from ±40 mV to ±1.28 V. Each channel is isolated from the others, which saves grounding gymnastics in multi-sensor panels. The sigma-delta converter gives 15 bits plus sign resolution. Read cycle is 400 ms for RTDs and 200 ms for thermocouples—fast enough for process loops, not for high-speed anvils. Current draw is 150 mA at 3.3 V and 50 mA at 24 V; budget accordingly in the rack power supply. Connection is via dual 40-pin connectors. The module carries IP20, operates from 0 to 60 °C, and survives 30 gn shock and 3 gn vibration—rated for industrial panel environments.

Compliance summary

The module holds IEC 61131-2 (PLC standard), IEC 61000-6-4 (emission), IEC 61000-6-2 (immunity), and EN 61010-2-201 (safety) compliance. It also meets the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. These are the documents typically asked for in panel certification audits.
