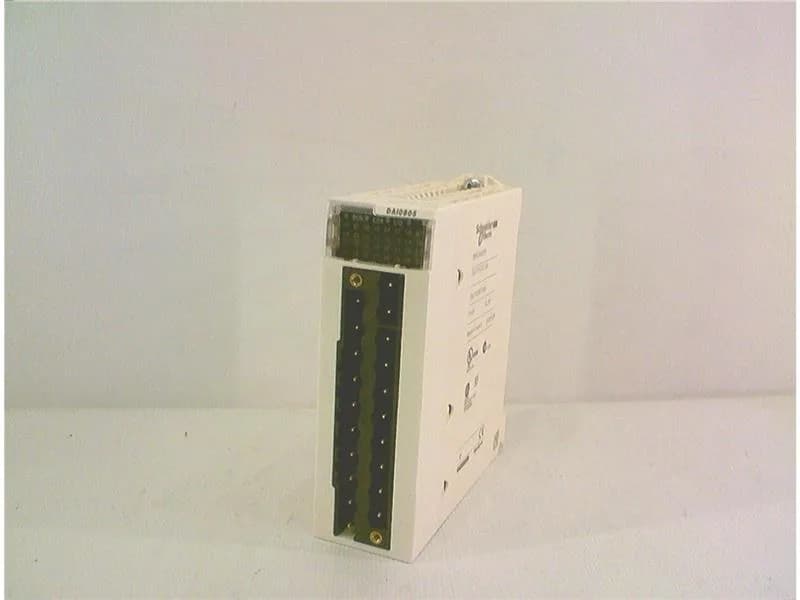

BMXDAI0805 - Schneider Electric
MPNBMXDAI0805
Active
Discrete Input Module X80
$120.65 – $256.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input voltage | 200...240 V DC for isolated |
| Voltage state 0 guaranteed | = 4 mA |
| Voltage state 1 guaranteed | >= 159 V |
| Current consumption | 164 V AC sensor OK < 80 V AC sensor fault |
| Discrete input current | 10.4 mA at 200...240 V AC |
| Typical current consumption | 76 mA 93.6 mA |
| Sensor power supply | : 170...264 V |
| Discrete input frequency | 50 Hz (47...63 Hz) 60 Hz (47...63 Hz) |
| IP degree of protection | IP20 |
| AC activation response time | 10 ms |
All specifications
| Parameter | Value |
|---|---|
| AC deactivation response time | 20 ms |
| Pollution degree | 2 |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating |
| Vibration resistance | 3 gn |
| Depth | 86 mm |
| Width | 32 mm |
| Height | 103.7 mm |
| Product weight | 0.12 kg |
| Standards | IEC 61131-2 |
| Marking | CE UKCA CULus RCM EAC |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Input impedance | 21000 Ohm |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Input wiring mode | 2 or 3 wires |
| Device application | Industrial application |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 min |
| Protective treatment | Standard version |
| Discrete input number | 8 isolated conforming to IEC 60947-5-2 at 200...240 V AC 8 isolated conforming to IEC 61131-2 Type 2 at 200...240 V AC |
| Insulation resistance | > 10 MOhm 500 V DC |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
