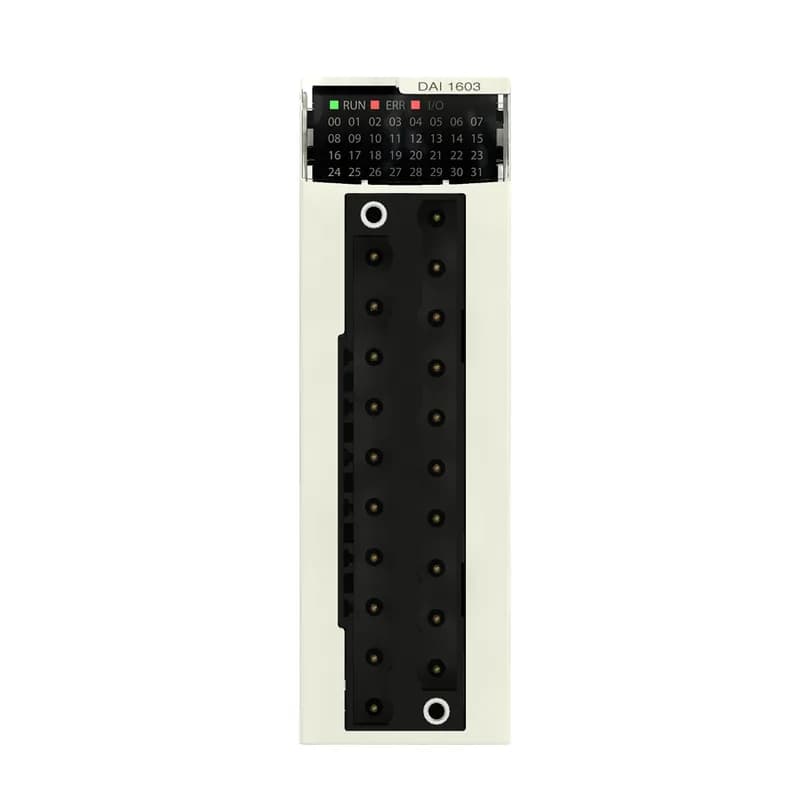

Square D BMXDAI1603 Dig 16 In 48 VAC|SQUARE D BMXDAI1603: DIG 16 IN 48 VAC
$244.04 – $357.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | 1 external fuse per group of channel0.5 A fast blow |
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input voltage | 48 V AC for isolated |
| Voltage state 0 guaranteed | = 2 mA |
| Voltage state 1 guaranteed | >= 34 V |
| Voltage detection threshold | < 24 V AC sensor fault > 36 V AC sensor OK |
| Current consumption | <= 107 mA at 3.3 V DC |
| Discrete input current | 5 mA at 48 V AC |
| Current state 0 guaranteed | 10 MOhm 500 V DC |
| Typical current consumption | 76 mA DC |
| Sensor power supply | : 40...52 V |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation in | 4 W |
| IP degree of protection | IP20 |
| AC activation response time | 10 ms |
| AC deactivation response time | 20 ms |
| Pollution degree | 2 |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating |
| Vibration resistance | 3 gn |
| Depth | 86 mm |
| Width | 32 mm |
| Height | 103.7 mm |
| Product weight | 0.115 kg |
| MTBF reliability | 1132000 H |
| Standards | IEC 61131-2 |
| Marking | CE UKCA CULus EAC RCM |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Input wiring mode | 2 or 3 wires |
| Device application | Industrial application |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 min |
| Discrete input logic | Positive logic (sink) |
| Protective treatment | Standard version |
| Discrete input number | 16 isolated conforming to IEC 60947-5-2 at 48 V AC 16 isolated conforming to IEC 61131-2 type 3 at 48 V AC |
| Isolation between channels and bus | 1500 V for 1 minute |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
