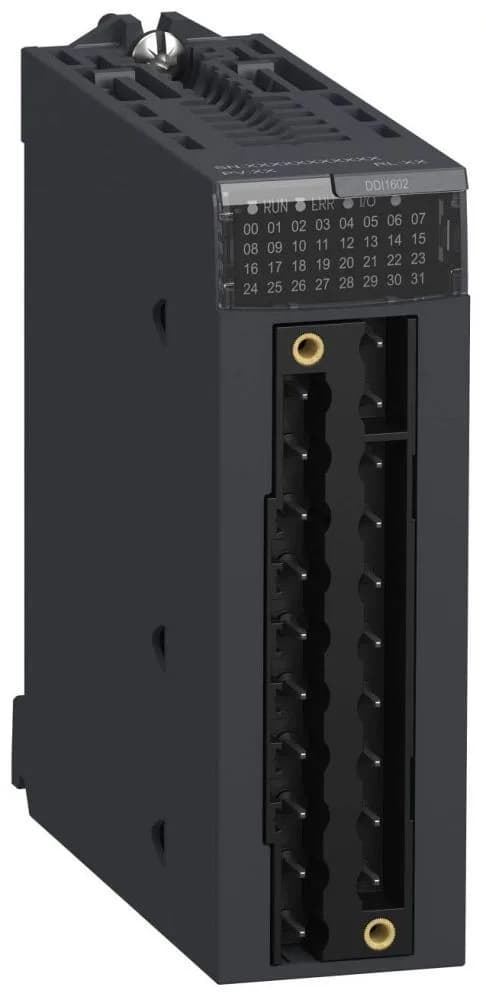

Schneider BMXDDI1602 Discrete Input Module
MPNBMXDDI1602
Active
Discrete input module, M340, 16 Inputs, 24 VDC sink|Discrete input module, M340, 16 Inputs, 24 VDC sink
$110.00 – $125.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | 1 external fuse per group of channel0.5 A fast blow reverse polarity protection |
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input voltage | 24 V DC for isolated |
| Voltage state 0 guaranteed | < 5 V |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Current consumption | <= 107 mA at 3.3 V DC |
| Discrete input current | 3.5 mA at 24 V DC |
| Current state 0 guaranteed | 10 MOhm 500 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Typical current consumption | 76 mA DC |
All specifications
| Parameter | Value |
|---|---|
| Sensor power supply | : 19...30 V |
| Power dissipation in | 2.5 W |
| IP degree of protection | IP20 |
| DC maximum response time | 7 ms |
| DC typical response time | 4 ms |
| Pollution degree | 2 |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating |
| Vibration resistance | 3 gn |
| Depth | 86 mm |
| Width | 32 mm |
| Height | 103.7 mm |
| Product weight | 0.115 kg |
| MTBF reliability | 775000 H |
| Standards | IEC 61131-2 |
| Marking | CE UKCA CULus EAC RCM |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Input wiring mode | 2 or 3 wires |
| Device application | Industrial application |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Discrete input logic | Positive logic (sink) |
| Protective treatment | Standard version |
| Discrete input number | 16 isolated conforming to IEC 60947-5-2 at 24 V DC |
| Hot swapping fallback | Yes |
| Environmental characteristic | Fungal spore resistant class 3B2 |
| Isolation between channels and bus | 1500 V for 1 minute |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
BMXDDI1602
