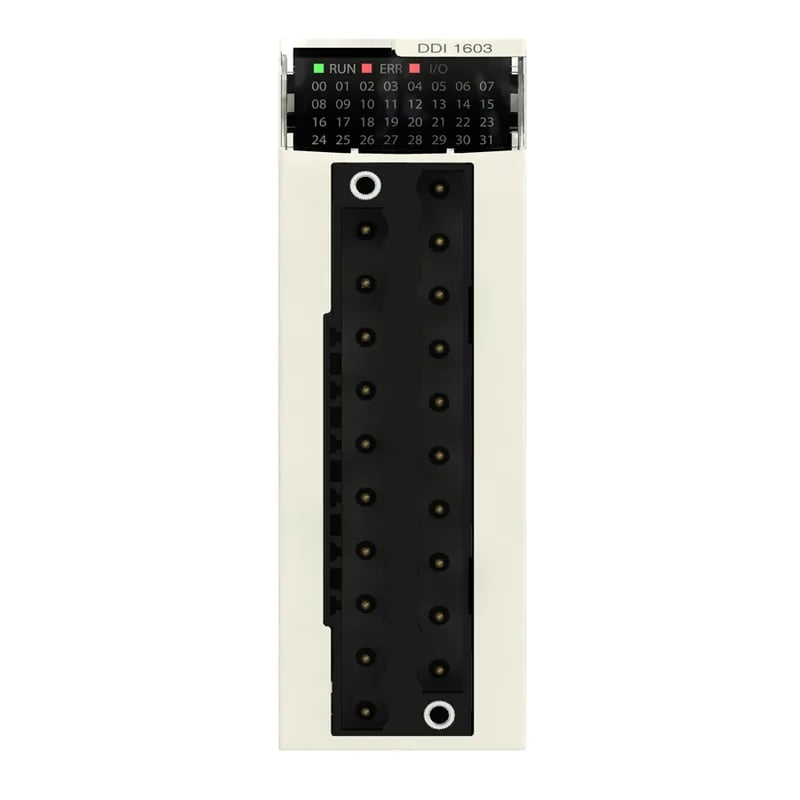

Schneider Electric BMXDDI1603H

Schneider BMXDDI1603H Modicon X80 16-input module, 48 V DC

MPNBMXDDI1603H
Active

Schneider BMXDDI1603H Electric.

$361.00Ref. price · indicative, final on quote
Schneider Electric BMXDDI1603H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDI1603H key specifications
ParameterValue
Range of productModicon X80
Product or component typeDiscrete input module
Discrete input voltage48 V DC for isolated
Voltage state 0 guaranteed< 10 V
Voltage state 1 guaranteed>= 34 V
Voltage detection threshold< 24 V DC sensor fault > 36 V DC sensor OK
Current consumption<= 107 mA at 3.3 V DC
Discrete input current2.5 mA at 48 V DC
Current state 0 guaranteed10 MOhm 500 V DC
Current state 1 guaranteed>= 2 mA
Typical current consumption76 mA DC
Sensor power supply: 36...60 V 60 °C : 42.2...52.8 V 70 °C

All specifications

BMXDDI1603H additional specifications
ParameterValue
Power dissipation in3.6 W
IP degree of protectionIP20
DC maximum response time7 ms
DC typical response time4 ms
Pollution degree2
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating
Vibration resistance3 gn
Depth86 mm
Width32 mm
Height103.7 mm
Product weight0.115 kg
MTBF reliability777000 H
StandardsIEC 61131-2
MarkingCE UKCA CULus RCM EAC
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Local signalling1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O
Input wiring mode2 or 3 wires
Device applicationIndustrial application in severe environment
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary
Discrete input logicPositive logic (sink)
Protective treatmentConformal coating
Discrete input number16 isolated conforming to IEC 60947-5-2 at 48 V DC 16 isolated conforming to IEC 61131-2 type 3 at 48 V DC
Hot swapping fallbackYes
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Isolation between channels and bus1500 V for 1 minute
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

Overview

The BMXDDI1603H is a Modicon X80 discrete input module from Schneider, packing 16 isolated inputs at 48 V DC with a 4 ms response time and positive logic (sink) wiring. Rated for 30 gn shock and sealed to IP20 with conformal coating, it carries CE, UKCA, CULus, RCM, and EAC markings for global panel approvals.

Selection and integration

Compared to the BMXDAI1603, which accepts IEC 61131-2 Type 3 sensors, the BMXDDI1603H is limited to Type 1 sensors per IEC 61131-2 — so a panel wired for Type 3 proximity sensors will need rewiring before swapping. The 4 ms response suits most discrete sensing loops, but for high-speed counting or encoder inputs, a dedicated counter module is needed.

The BMXDDI1603H is an active Modicon X80 catalogue module; lead time is quoted per RFQ and typically runs a few weeks for this build code. Compliance documentation includes the low-voltage directive 2014/35/EU and EMC directive 2014/30/EU, with certifications for ATEX zone 2, IECEx zone 2, and CULus HazLoc.
