Schneider Electric BMXDDI6402K

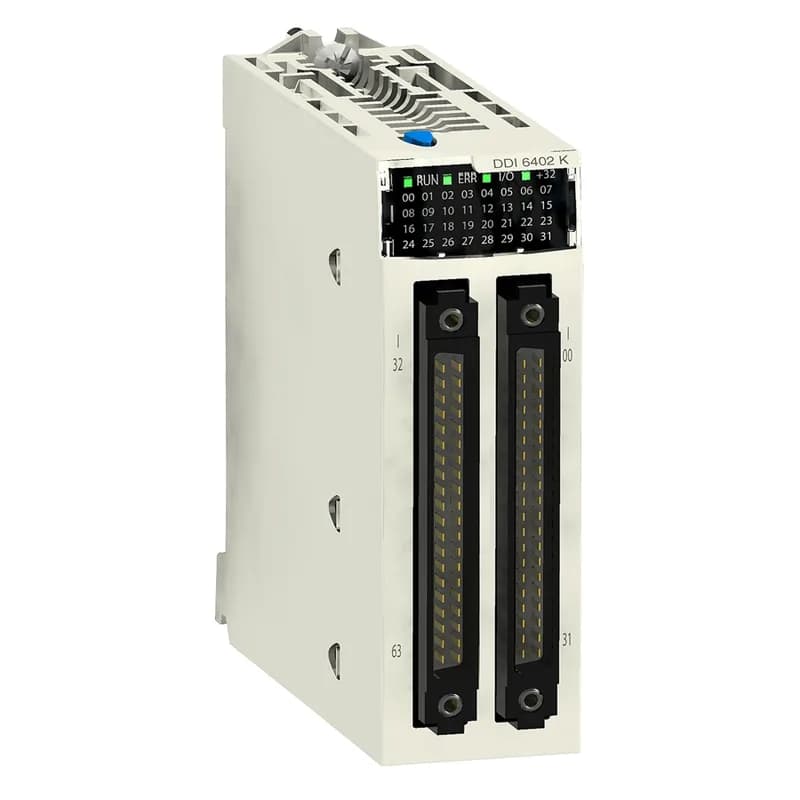

BMXDDI6402K Modicon X80 64DI 24VDC Positive, 4.3W, Active

MPNBMXDDI6402K
Active

Schneider Modicon X80 BMXDDI6402K discrete input module, 64 inputs at 24 V DC positive logic (sink), 4.3 W dissipation, IP20, active production.

$180.00Ref. price · indicative, final on quote
Schneider Electric BMXDDI6402K datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDI6402K key specifications
ParameterValue
Protection type1 external fuse per group of channel0.5 A fast blow without reverse polarity protection
Range of productModicon X80
Product or component typeDiscrete input module
Discrete input voltage24 V DC for isolated
Voltage state 0 guaranteed10 MOhm 500 V DC
Voltage state 1 guaranteed>= 15 V
Voltage detection threshold< 14 V DC sensor fault > 18 V DC sensor OK
Discrete input current0.6 mA at 24 V DC
Typical current consumption160 mA DC
Sensor power supply: 19...30 V
Power dissipation in4.3 W
IP degree of protectionIP20

All specifications

BMXDDI6402K additional specifications
ParameterValue
DC maximum response time7 ms
DC typical response time4 ms
Pollution degree2
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating
Vibration resistance3 gn
Depth86 mm
Width32 mm
Height134.6 mm
Product weight0.145 kg
MTBF reliability510000 H
MarkingCE UKCA CULus RCM EAC
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Local signalling1 LED (green) for +32 channels indicator 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels
Discrete input logicPositive logic (sink)
Protective treatmentStandard version
Discrete input number64 isolated at 24 V DC
Hot swapping fallbackYes
Isolation between channels and bus1500 V for 1 minute
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Ratings that drive the fit

The BMXDDI6402K: The 64 inputs are isolated in groups; an external 0.5 A fast-blow fuse per group is required (no reverse polarity protection on the sensor supply). The guaranteed ON threshold is ≥ 15 V, and OFF is effectively open (10 MΩ at 500 V DC). Typical response time is 4 ms, maximum 7 ms — fast enough for most discrete sensing, but not for high-speed counting. Power draw from the backplane is 160 mA typical at 24 V; total dissipation of 4.3 W is small so no extra cooling needed even in a tight cabinet. The sensor power supply rails must stay between 19 and 30 V.

Mounting and diagnostics

Compliance marks cover CE, UKCA, cULus, RCM, and EAC — approved for the EU, UK, US/Canada, Australia, and Eurasian markets. Directives include Low Voltage (2014/35/EU) and EMC (2014/30/EU).
