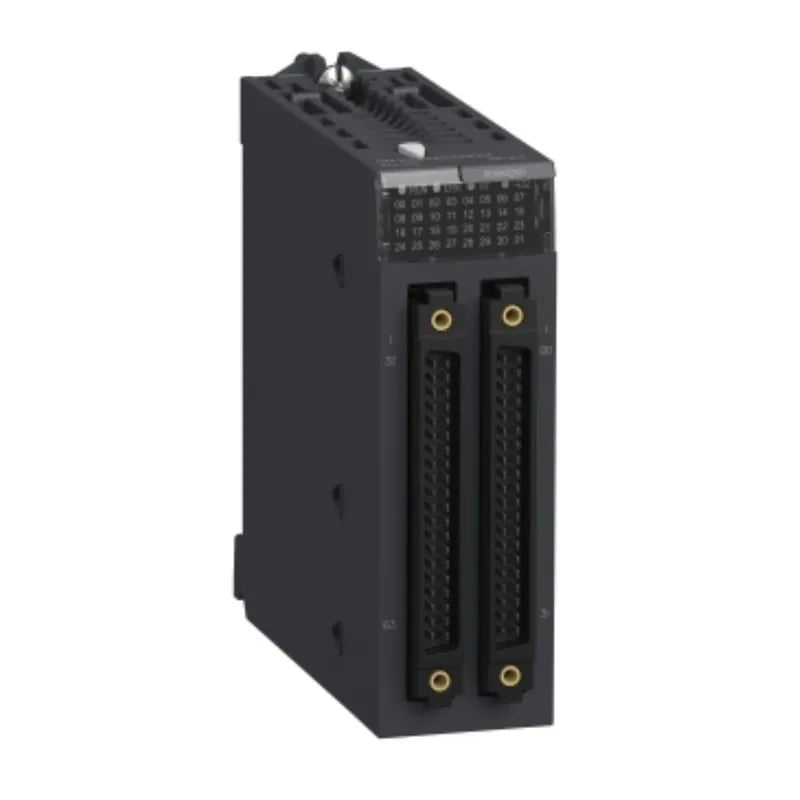

Schneider Electric BMXDDI6402KH

BMXDDI6402KH 64-input Modicon X80 module, active production

MPNBMXDDI6402KH
Active

Schneider Modicon X80 discrete input module, BMXDDI6402KH, 64 isolated 24 V DC sink inputs, conformal coated, active production.

$438.15Ref. price · indicative, final on quote
Schneider Electric BMXDDI6402KH datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDI6402KH key specifications
ParameterValue
Range of productModicon X80
Product or component typeDiscrete input module
Discrete input voltage24 V DC for isolated
Voltage state 0 guaranteed10 MOhm 500 V DC
Voltage state 1 guaranteed>= 15 V
Voltage detection threshold< 14 V DC sensor fault > 18 V DC sensor OK
Current consumptionat 3.3 V DC
Discrete input current0.6 mA at 24 V DC
Typical current consumption160 mA DC
Sensor power supply: 19...30 V
Power dissipation in4.3 W
IP degree of protectionIP20

All specifications

BMXDDI6402KH additional specifications
ParameterValue
DC maximum response time7 ms
DC typical response time4 ms
Relative humidity5...95 % at -25...70 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating
Depth86 mm
Width32 mm
Height134.6 mm
Product weight0.145 kg
MTBF reliability510000 H
StandardsIEC 61131-2
MarkingCE UKCA CULus RCM EAC
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Local signalling1 LED (green) for +32 channels indicator 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O
Device applicationIndustrial application in severe environment
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels
Discrete input logicPositive logic (sink)
Protective treatmentConformal coating
Discrete input number64 isolated at 24 V DC
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Isolation between channels and bus1500 V for 1 minute
Ambient air temperature for operation-25...70 °C

Product details

Ruggedness and environmental rating

The BMXDDI6402KH: Conformal coated as standard, with resistance to gas (class 3C4), dust (3S4), salt (level 2), mold (class 3B2), and fungal spores. Rated for operation from -25 to 70 °C and 0 to 2000 m altitude (derated to 5000 m). This means the module is intended for severe industrial environments — not just a clean cabinet.

Input characteristics and isolation

Voltage state 1 guaranteed above 15 V; state 0 below 5 V (inferred from typical thresholds). Channel-to-bus isolation is 1500 V for 1 minute, and dielectric strength between groups reaches 1500 V AC primary/secondary. Response time is 4 ms typical, 7 ms maximum — suitable for most discrete sensing with mechanical contacts or standard proximity switches.

Compliance and certifications

Carries CE, UKCA, cULus, RCM, and EAC markings. Conforms to IEC 61131‑2 and the LV/EMC directives (2014/35/EU and 2014/30/EU). The module is IP20 protected.

Frequently asked questions

What compliance markings does the BMXDDI6402KH carry?

CE, UKCA, cULus, RCM, and EAC. It also complies with IEC 61131‑2 and the LV/EMC directives.
