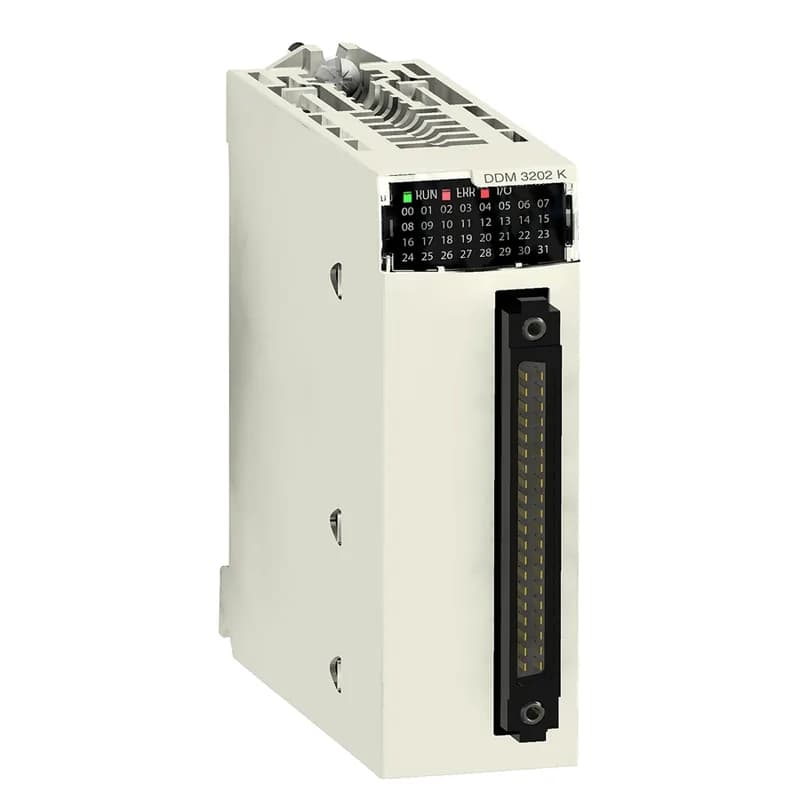

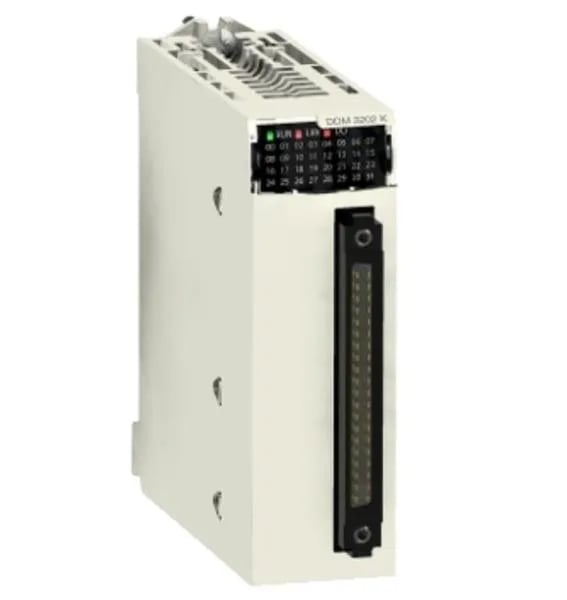

Schneider Modicon X80, discrete I/O module BMXDDM3202K, 16 inputs current sink logic positive, 16 solid-state outputs 0.1 A, 24 V DC, IP20.
| Parameter | Value |
|---|---|
| Input type | Current sink (logic positive) |
| Protection type | 1 external fuse per group of input channel0.5 A fast blow overvoltage protection on output reverse polarity protection on input reverse polarity protection on output |
| Range of product | Modicon X80 |
| Discrete output type | Solid state |
| Product or component type | Discrete I/O module |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Voltage detection threshold | < 14 V DC preactuator fault < 14 V DC sensor fault > 18 V DC preactuator OK > 18 V DC sensor OK |
| Current consumption | <= 166 mA at 3.3 V DC |
| Discrete input current | 2.5 mA |
| Discrete output current | 0.1 A |
| Current state 0 guaranteed | 10 MOhm 500 V DC |
| Parameter | Value |
|---|---|
| Current state 1 guaranteed | >= 2 mA |
| Typical current consumption | 69 mA at 24 V DC 125 mA at 3.3 V DC |
| Output short-circuit protection | With 2 A external fuse |
| Sensor power supply | 19...30 V |
| Power dissipation in | 4 W |
| Switching frequency | 0.5/LI² Hz |
| IP degree of protection | IP20 |
| Response time on output | 1.2 ms |
| DC maximum response time | 7 ms |
| DC typical response time | 4 ms |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 430000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of inputs and outputs |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1 |
| Load impedance ohmic | <= 220 Ohm |
| Protective treatment | Standard version |
| Discrete input number | 16 |
| Maximum overload time | 15 ms |
| Maximum tungsten load | 1.2 W |
| Discrete output number | 16 |
| Paralleling of outputs | Yes : 3 maximum |
| Output overload protection | With electronic circuit breaker 0.125 A < Id < 0.185 A With current limiter |
| Reverse polarity protection | Reverse mounted diode |
| Output overvoltage protection | With transil diode |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
The BMXDDM3202K: Inputs are compatible with 2-wire/3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 Type 1. Outputs are solid-state, 0.1 A per channel, with overload protection via electronic circuit breaker.
Rated IP20, fits standard Modicon X80 backplane. Shock resistance 30 gn, vibration 3 gn. Operating altitude 0–2000 m standard, 2000–5000 m with derating. Humidity 5 to 95% at 55 °C, non-condensing. Draws ≤166 mA at 3.3 V DC from the backplane.
It complies with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Current sink (logic positive).
Directives documentation for 2014/35/EU and 2014/30/EU is provided.
16 inputs at 24 V DC, 2.5 mA; 16 outputs at 0.1 A solid state; MTBF 430,000 hours.
