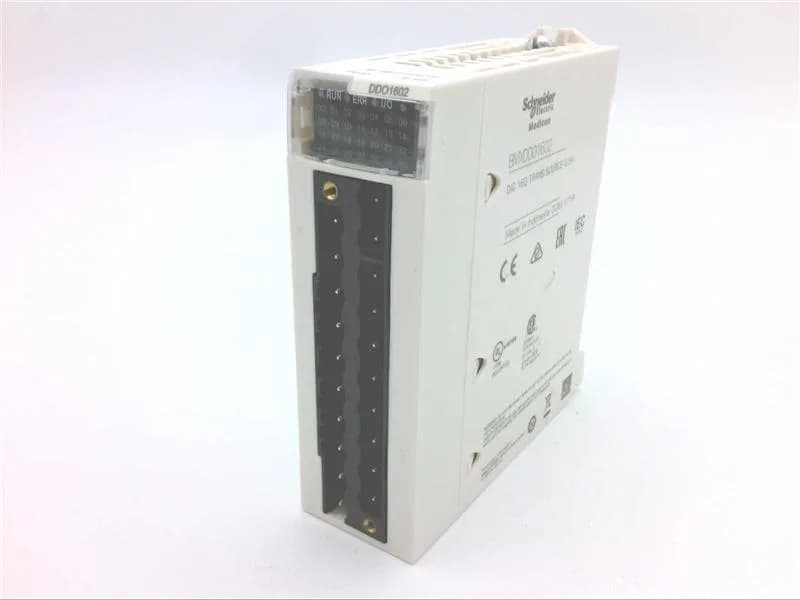

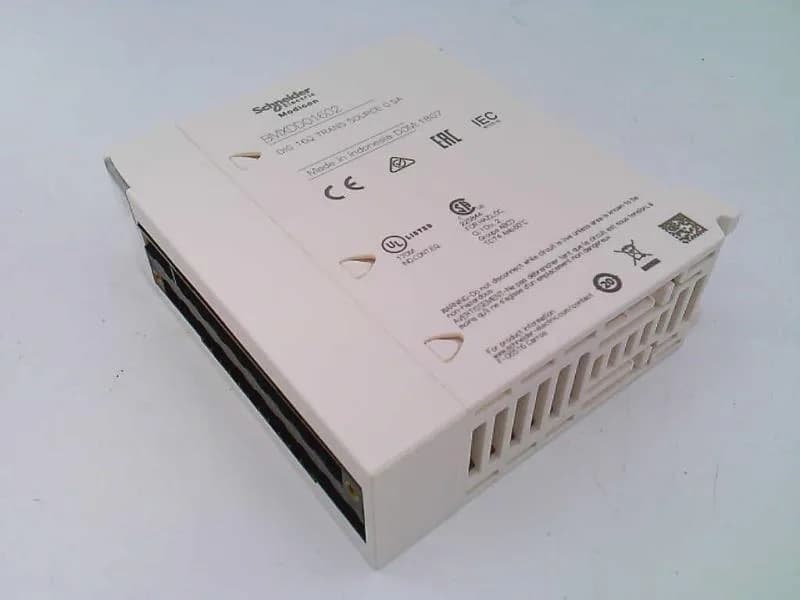

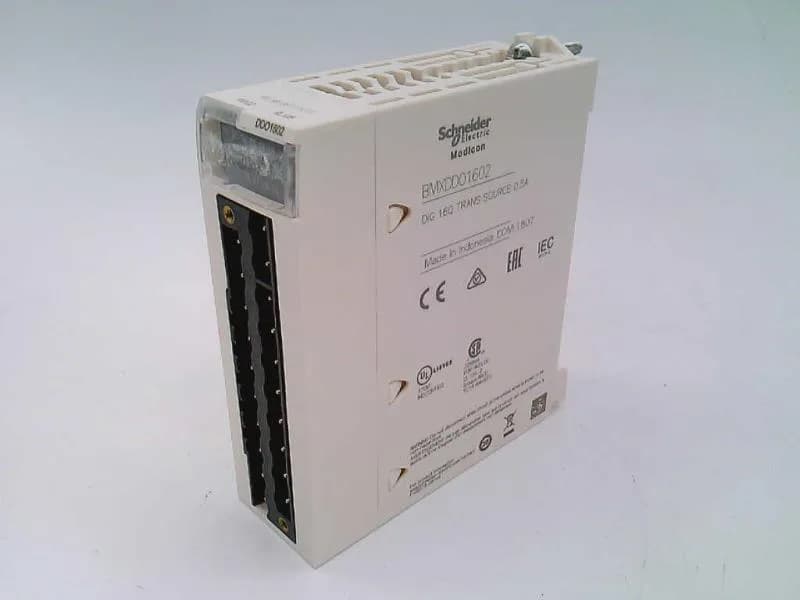

Schneider Electric BMXDDO1602

Schneider BMXDDO1602 Modicon X80 16-Output Module, 24V DC, 0

MPNBMXDDO1602
Active

Schneider Electric Modicon X80 discrete output module, BMXDDO1602, 16 solid-state transistor outputs, 24V DC positive logic, 0.5 A per channel, 10 A per module.

$132.00Ref. price · indicative, final on quote
Schneider Electric BMXDDO1602 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDO1602 key specifications
ParameterValue
Protection typeExternal fuse reverse polarity protection short-circuit protection overload protection overvoltage protection
Range of productModicon X80
Discrete output typeSolid state
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24 V 19...30 V DC
Voltage detection threshold< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Current per channel0.625 A
Discrete output current0.5 A
Maximum leakage current0.5 mA at state 0
Maximum current per module10 A
Typical current consumption79 mA at 3.3 V DC

All specifications

BMXDDO1602 additional specifications
ParameterValue
Output short-circuit protectionWith 2 A external fuse
Power dissipation in4 W
Switching frequency0.5/LI² Hz
IP degree of protectionIP20
Response time on output1.2 ms
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability410000 H
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic
Load impedance ohmic> 48 Ohm
Protective treatmentStandard version
Discrete output logicPositive
Maximum tungsten load6 W
Discrete output number16 conforming to IEC 61131-2
Paralleling of outputsYes : 2 maximum
Output overload protectionWith electronic circuit breaker 1.5 In < Id < 2 In With current limiter
Reverse polarity protectionReverse mounted diode
Output overvoltage protectionWith transil diode
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

The BMXDDO1602 is a Modicon X80 discrete output module with 16 transistor outputs, 24V DC positive logic. Each output is rated 0.5 A (0.625 A per channel with external fuse), and the module can deliver up to 10 A total. Response time is 1.2 ms, and the outputs are short-circuit and overload protected via electronic circuit breaker and current limiter. Diagnostic LEDs include a green RUN LED, a green channel LED per output, a red ERR LED, and a red I/O LED. This gives immediate field visibility of module health and per-channel status without a software scan.

Integration Notes

Power draw is 79 mA at 3.3 V DC from the backplane. Per-channel output can be paralleled (max 2 outputs) for higher current – ensure the application stays within the module total of 10 A. The module requires a 2 A external fuse per output group for short-circuit protection; reverse polarity and overvoltage protection are built in. Outputs are positive logic (sourcing), so loads are switched by the output sinking current. Off-state leakage is 0.5 mA, which may cause faint glow on LEDs or slow drop on small relays. The module is IP20 rated, for use inside a control cabinet.

Frequently asked questions

What directives apply to this module?

It complies with the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

What do the diagnostic LEDs indicate?

One green LED for module RUN, one green LED per channel for channel diagnostics, one red LED for module error (ERR), and one red LED for module I/O.
