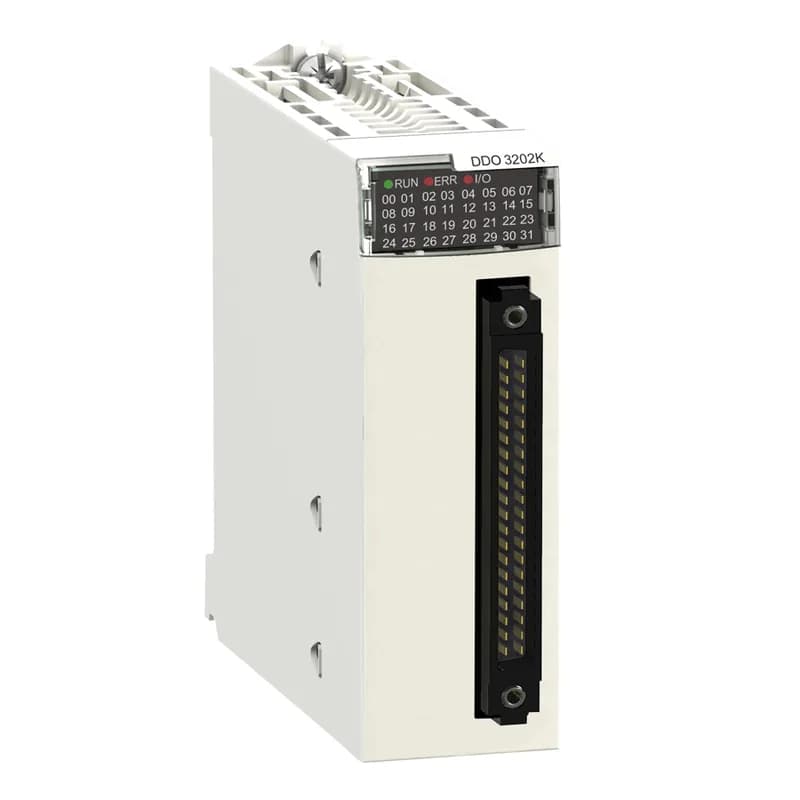

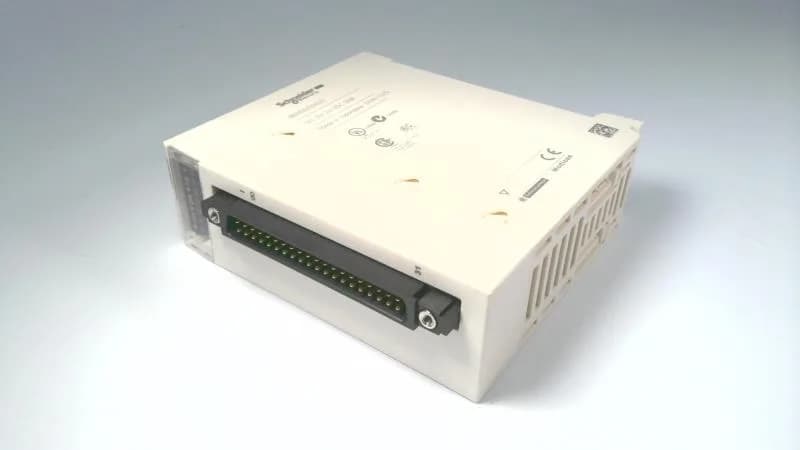

Schneider Electric BMXDDO3202K

Schneider BMXDDO3202K Modicon X80 32-Transistor Output Modul

MPNBMXDDO3202K
Active

Schneider Electric BMXDDO3202K, Modicon X80 Discrete Output Module, 32 Transistor Outputs, 24V DC Positive Logic, 0.125 A per channel.

$267.97 – $453.79Ref. price · indicative, final on quote
Schneider Electric BMXDDO3202K datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDO3202K key specifications
ParameterValue
Protection typeExternal fuse reverse polarity protection short-circuit protection overload protection overvoltage protection
Range of productModicon X80
Discrete output typeSolid state
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24 V 19...30 V DC
Voltage detection threshold< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Current per channel0.125 A
Discrete output current0.1 A
Maximum leakage current0.1 mA at state 0
Maximum current per module3.2 A
Typical current consumption125 mA at 3.3 V DC

All specifications

BMXDDO3202K additional specifications
ParameterValue
Output short-circuit protectionWith 2 A external fuse
Power dissipation in3.6 W
Switching frequency0.5/LI² Hz
IP degree of protectionIP20
Response time on output1.2 ms
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability290000 H
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels
Load impedance ohmic>= 220 Ohm
Protective treatmentStandard version
Discrete output logicPositive
Maximum overload time15 ms
Maximum tungsten load1.2 W
Discrete output number32 conforming to IEC 61131-2
Paralleling of outputsYes : 3 maximum
Output overload protectionWith current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A
Reverse polarity protectionReverse mounted diode
Output overvoltage protectionWith transil diode
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

The BMXDDO3202K is a 32-channel solid-state output module for the Modicon X80 rack, switching 24V DC loads at 0.125 A per channel. Positive logic means the output turns on when the control signal is high. Total module current is limited to 3.2 A, so at full 32-channel loading each output must be derated below its per-channel maximum to stay within the package limit. Response time is 1.2 ms, suitable for valve banks and indicator arrays.

Protection and diagnostics

Each output is protected against reverse polarity, short circuit (requires a 2 A external fuse), overload, and overvoltage via a transil diode. Per-channel current limiting engages between 0.125 A and 0.185 A. Status LEDs give immediate visual feedback: one green RUN LED for module operation, one green LED per channel for channel status, plus red LEDs for module error (ERR) and module I/O fault.

MTBF is 290,000 hours at 40°C ambient. Vibration resistance 3 gn, shock 30 gn.

Frequently asked questions

What directives does the BMXDDO3202K comply with?

It complies with the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU, covering safety and electromagnetic compatibility for CE marking.

What status LEDs are on the BMXDDO3202K?

The module has one green LED for module operating (RUN), one green LED per channel for channel diagnostic, one red LED for module error (ERR), and one red LED for module I/O.
