BMXDDO6402K - Schneider Electric
MPNBMXDDO6402K
Active

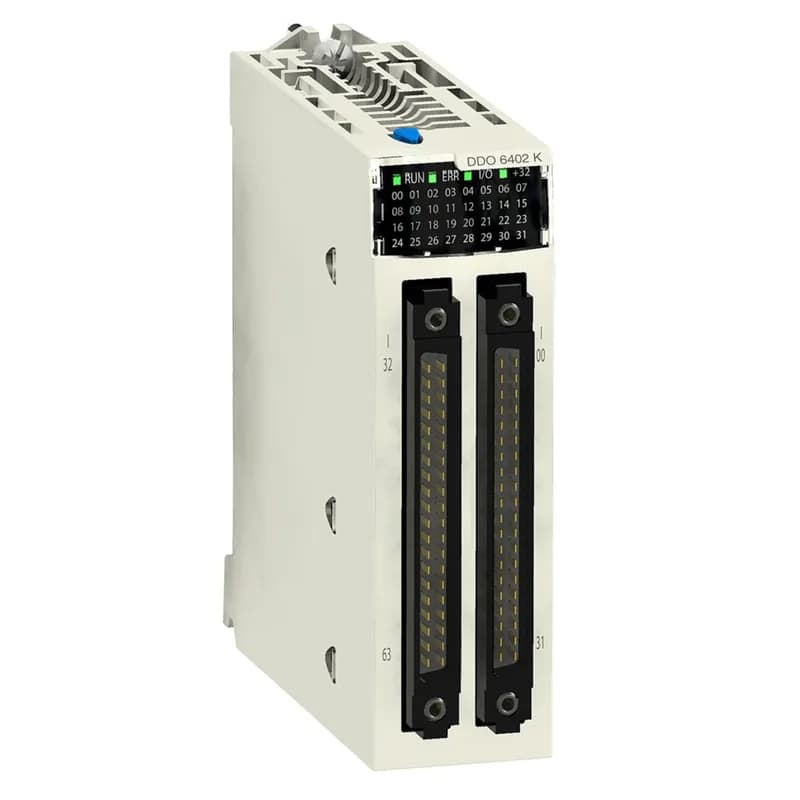

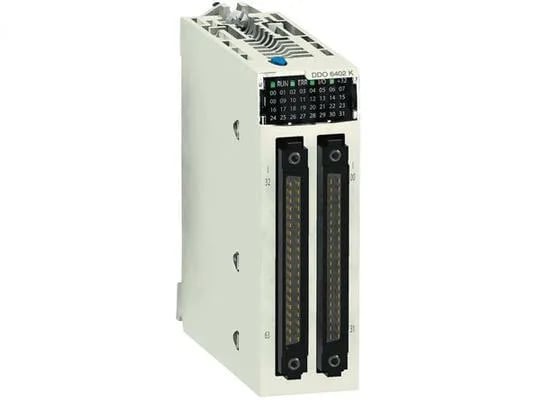

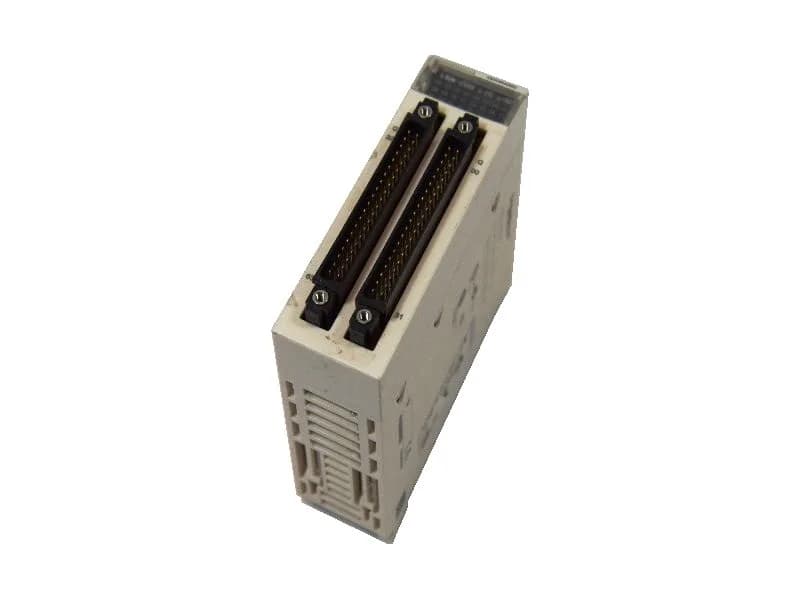

Discrete Output Module, Modicon X80, 64 Transistor Outputs, 24VDC Positive|Discrete Output Module, Modicon X80, 64 Transistor Outputs, 24 Volt DC Positive
$84.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | External fuse reverse polarity protection short-circuit protection overload protection overvoltage protection |
| Range of product | Modicon X80 |
| Discrete output type | Solid state |
| Product or component type | Discrete output module |
| Discrete output voltage | 24 V 19...30 V DC |
| Voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| Current per channel | 0.125 A |
| Discrete output current | 0.1 A |
| Maximum current per module | 6.4 A |
| Typical current consumption | 160 mA at 3.3 V DC |
| Output short-circuit protection | With 2 A external fuse |
| Power dissipation in | 6.85 W |
All specifications
| Parameter | Value |
|---|---|
| Switching frequency | 0.5/LI² Hz |
| IP degree of protection | IP20 |
| Response time on output | 1.2 ms |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 150000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) +32 channels indicator 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels |
| Load impedance ohmic | >= 220 Ohm |
| Protective treatment | Standard version |
| Discrete output logic | Positive |
| Insulation resistance | > 10 MOhm 500 V DC |
| Maximum overload time | 15 ms |
| Maximum tungsten load | 1.2 W |
| Discrete output number | 64 conforming to IEC 61131-2 |
| Paralleling of outputs | Yes : 3 maximum |
| Output overload protection | With current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A |
| Reverse polarity protection | Reverse mounted diode |
| Output overvoltage protection | With transil diode |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
BMXDDO6402K
