Schneider BMXDDO6402KC Modicon X80 64-output module

MPNBMXDDO6402KC
Active

Schneider BMXDDO6402KC Electric.

$1,492.00Ref. price · indicative, final on quote
Schneider Electric BMXDDO6402KC datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDO6402KC key specifications
ParameterValue
Protection typereverse polarity protection External short-circuit protection overload protection overvoltage protection
Range of productModicon X80
Discrete output typeSolid state
Product or component typeDiscrete output module
Discrete output voltage24 V 19...30 V DC
Voltage detection threshold< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Current per channel0.125 A
Discrete output current0.1 A
Maximum current per module6.4 A
Typical current consumption160 mA at 3.3 V DC
Output short-circuit protectionWith 2 A external fuse
Power dissipation in6.85 W

All specifications

BMXDDO6402KC additional specifications
ParameterValue
Switching frequency0.5/LI² Hz
IP degree of protectionIP20
Response time on output1.2 ms
Shock resistance30 gn
Relative humidity5...95 % at 0...60 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability150000 H
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) +32 channels indicator 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels
Load impedance ohmic>= 220 Ohm
Protective treatmentConformal coating
Discrete output logicPositive
Insulation resistance> 10 MOhm 500 V DC
Maximum overload time15 ms
Maximum tungsten load1.2 W
Discrete output number64 conforming to IEC 61131-2
Paralleling of outputsYes : 3 maximum
Output overload protectionWith current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A
Reverse polarity protectionReverse mounted diode
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Output overvoltage protectionWith transil diode
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Overview

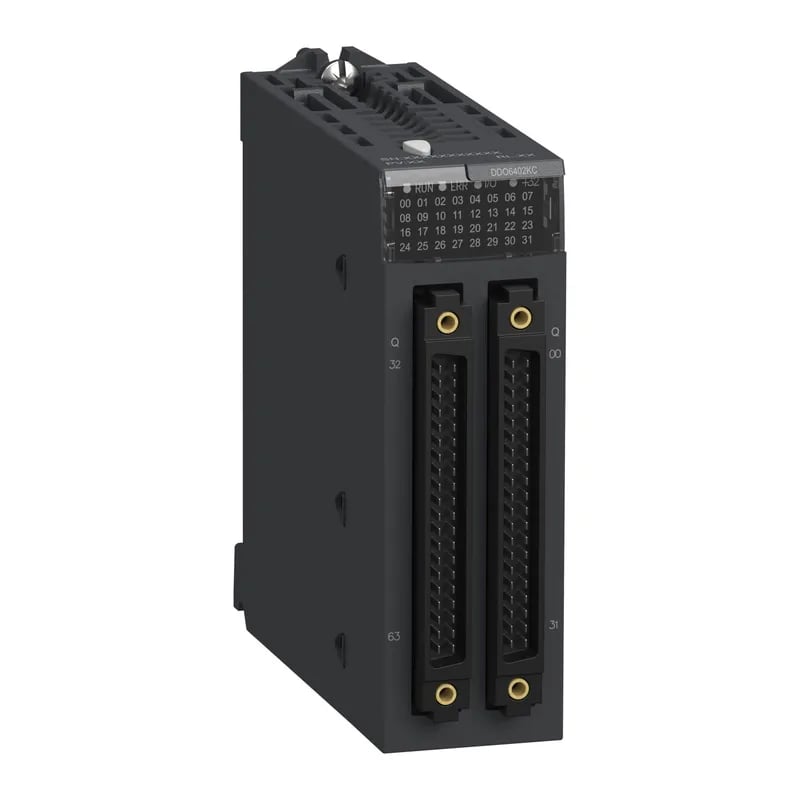

The BMXDDO6402KC is a Modicon X80 discrete output module with 64 solid-state transistor outputs on a PCE form factor, each rated 0.1 A at 24 V DC with positive logic. It has a conformal coating and a 30 gn shock rating.

The 64 outputs are grouped with a common supply, each channel protected by a current limiter and electronic circuit breaker tripping between 0.125 A and 0.185 A. The 1.2 ms response time suits fast solenoid or indicator banks, but the 0.1 A per-channel limit means each output drives a single small load — not paralleled for higher current. Compared to the BMXDDI1603H, a 16-channel input module, the BMXDDO6402KC is an output-only module with four times the channel density; a panel originally wired for BMXDDI1603H would need complete rewiring of the field terminations to swap to this output module.

The BMXDDO6402KC is an active Modicon X80 catalogue module. Lead time is confirmed via RFQ; no obsolescence notice is recorded. The conformal coating variant is a standard production option, not a special build.
