Schneider Electric BMXDRA0805

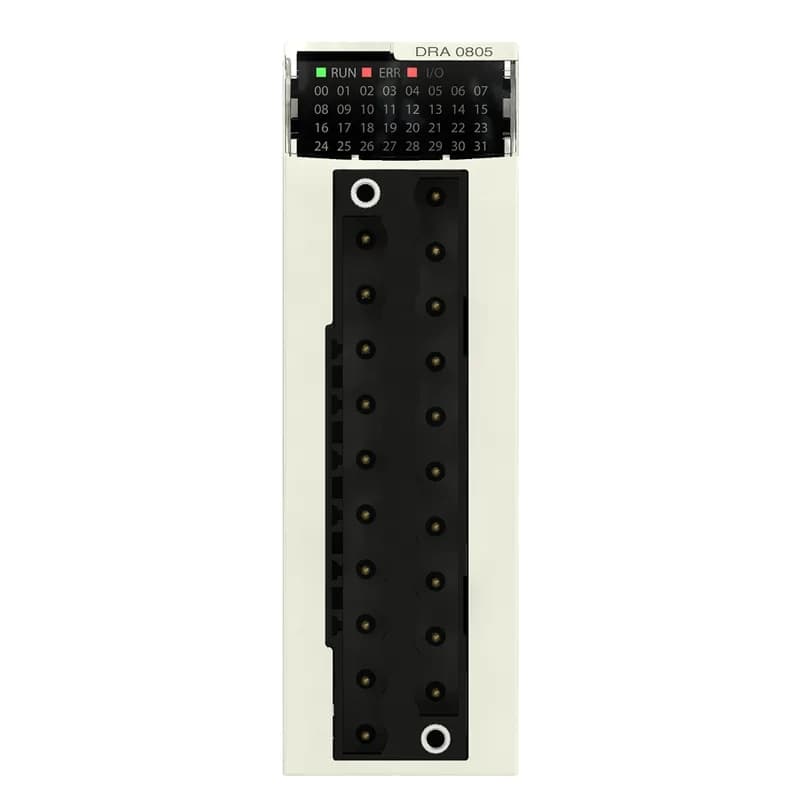

Schneider BMXDRA0805 Modicon X80 8-Channel Relay Output Module

MPNBMXDRA0805
Obsolete

Schneider BMXDRA0805 Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$319.00 – $568.15Ref. price · indicative, final on quote
Schneider Electric BMXDRA0805 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRA0805 key specifications
ParameterValue
Range of productModicon X80
Discrete output typeRelay
Product or component typeDiscrete output module
Discrete output voltage24...240 V 19...264 V AC 12...24 V 10...34 V DC
Minimum switching current10 mA 5 V DC
Typical current consumption79 mA at 3.3 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current3 A
Power dissipation in2.7 W
IP degree of protectionIP20
Response time on output< 10 ms activation < 8 ms deactivation
Shock resistance30 gn

All specifications

BMXDRA0805 additional specifications
ParameterValue
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability2119902 H
Electrical durabilityAC-15: 100000 cycles at 220 VA 200...240 V (load factor 0.35) AC-12: 1000000 cycles at 110 VA 110...120 V AC-12: 1000000 cycles at 220 VA 200...240 V AC-12: 1000000 cycles at 50 VA 48 V AC-15: 1000000 cycles at 110 VA 200...240 V (load factor 0.35) DC-12: 1000000 cycles at 24 W 24 V DC-13: 1000000 cycles at 24 W 24 V AC-15: 10000000 cycles at 10 VA 110...120 V (load factor 0.35) AC-15: 10000000 cycles at 10 VA 200...240 V (load factor 0.35) AC-15: 150000 cycles at 110 VA 110...120 V (load factor 0.35) AC-15: 1500000 cycles at 50 VA 110...120 V (load factor 0.35) AC-15: 2000000 cycles at 24 VA 48 V (load factor 0.35) DC-13: 2000000 cycles at 10 W 24 V DC-12: 300000 cycles at 40 W 24 V AC-15: 3000000 cycles at 50 VA 200...240 V (load factor 0.35) AC-12: 500000 cycles at 110 VA 48 V AC-12: 500000 cycles at 220 VA 110...120 V AC-15: 5000000 cycles at 10 VA 48 V (load factor 0.35) AC-15: 500000 cycles at 24 VA 24 V (load factor 0.35) AC-12: 700000 cycles at 50 VA 24 V
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength2000 V AC at 50/60 Hz 1 min
Protective treatmentStandard version
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Environmental characteristicCorrosion resistance Dust resistant
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Overview

The BMXDRA0805 is a Modicon X80 discrete output module from Schneider, order code BMXDRA0805, with 8 relay outputs rated for 3 A switching current. Output voltage range covers 24...240 V AC (19...264 V) and 12...24 V DC (10...34 V). The module is rated IP20 and draws 2.7 W from the backplane.

Lifecycle

The BMXDRA0805 is discontinued as of 2022-02-18. For new designs or replacements, evaluate the BMXDRA0815 or other current Modicon X80 relay output modules.

Compliance

The module complies with California Proposition 65 and meets the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

MPN
BMXDRA0805
